 Post subject: Taking another crack at metal armor - Videos are UP!
PostPosted: Tue Feb 04, 2020 5:04 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
I first tried my hand at metal armor a little over 4 years ago.
viewtopic.php?f=3&t=15636&hilit=METAL+ARMOR
I was really happy with it, but when I decided to dive into a Terry English set, I sold a great many things to fund it, including that metal armor.

After an event involving some nachos and my Terry English set last con-season ...I started feeling a bit gun shy with it. I couldn't help but feeling like I was risking ruining a piece of art by traveling with it and wearing it. I decided I needed a 'beater' set that I wouldn't be mad if it gets banged up, paint scratched off or my son accidentally catapults a full BBQ nachos into it!

For this new set, I plan to do things a little different than the last set. I plan to incorporate new techniques that I have seen and I also plan to video as much of it as I can. (unfortunately no videos here for this first post though!)


The first thing I will be doing very differently is hammering out more of my own 'dishing'. I will still use vintage aluminum sleds like last time (already dished and not really more expensive than similarly sized new aluminum of the same gauge), but I want to have more control over the level of 'dishing'. I also do plan to work with some regular 'sheet' that I will need to anneal, form and dish on the greaves. So I need a 'stake' with round forming top.

Unfortunately, proper forming stakes are like $200!!!!

So like usual I am cheating. Aluminum is soft enough that I think the stake can be hollow, not solid. I found some 5-1/2" "weld-on steel pipe caps". I also had some leftover 2" square tube already. A quick and dirty hammering and welding job left me with this thing!

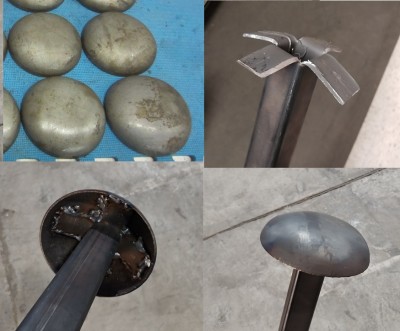

Attachment:
20200203_143453.jpg [ 214.46 KiB | Viewed 4824 times ]

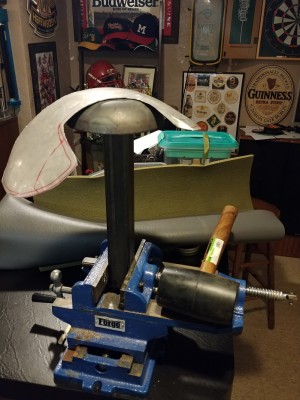

I haven't torture tested it yet, but initial results are very positive! I can work with this.
Attachment:
20200203_194633.jpg [ 285.2 KiB | Viewed 4824 times ]

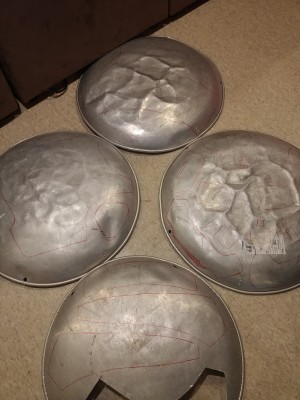

These sheets for the greaves are the ones I plan to anneal and shape. They are actually really thick and has a coating of some type, so this will be interesting.
Attachment:
20200120_132900_HDR.jpg [ 180.29 KiB | Viewed 4824 times ]

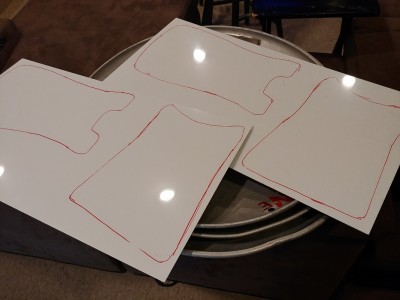

For most of the other parts I am going with what I know and using the sleds. I had to get 4 total sleds to get enough aluminum.
I will not be using any steel in this version, so no modifying existing steel armor this time.

Attachment:
20200119_160709.jpg [ 272.98 KiB | Viewed 4824 times ]

Attachment:
20200121_114000.jpg [ 193.8 KiB | Viewed 4824 times ]


I am not too worried about the 'ugly' dented aluminum because the 1.5lb rubber mallet and the anvil/forming stake will clean up basically all of it.


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor- Tips and videos pla
PostPosted: Tue Feb 04, 2020 5:09 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States

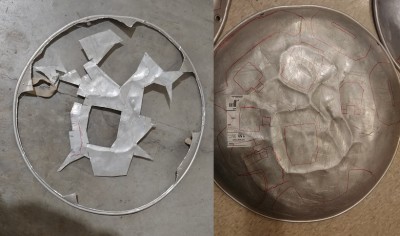

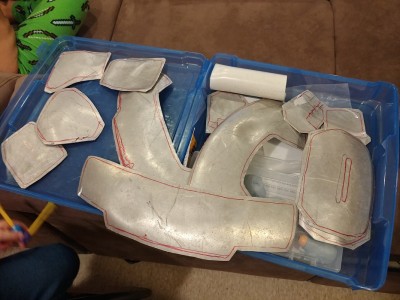

I used an angle grinder to hack out the rough shapes, then tin-snips to better refine the shapes.

Now I have these pretty much ready to roll.

Attachment:
20200203_200119_HDR.jpg [ 262.12 KiB | Viewed 4823 times ]


From here on out, I will try to provide video links to the shaping process.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Feb 04, 2020 7:20 pm
User avatar

Location: devon, uk
Service Number: A11/TQ2.0.92142G1
Country: United Kingdom
Looking good so far. Im very interested in the forming videos to see how its done!

_________________
Happy Happy, Joy Joy


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Thu Feb 06, 2020 3:59 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Got a "lot" done today! I actually haven't gotten very far at all in creation of the armor itself, but I did get some videos made!

They are very amateur with essentially no editing (I drop stuff, my mind goes blank, I lean on verbal crutches far too much) but I think they turned out OK considering they are all really just one 'take'. I hope someone finds them useful and I do plan to keep going.

Part 1- Basic Tools and prep
https://youtu.be/7x3ibhn32CQ

Part 2 - The "confidence builder" shapes (easy ones!) starting with the center shoulder tab.
https://youtu.be/KJt0bNypj9k

Part 3 - The "Ear flap" with hinge. This one is a bit long. Like I said, it wasn't edited and I did make 2 of the lower ear defender cover parts (2 diff ways). Every hammer strike is there so it ended up like 42 mins.... I'll work on that if I can and try to shorten them up in the future.
https://youtu.be/erPGzle3GAc


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Feb 06, 2020 4:46 am
User avatar

Country: United States
So awesome, you made that lower hinge really fast. Cant wait to make one based on that video.


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Fri Feb 07, 2020 11:49 am

Location: Derby
Country: United Kingdom
loved the ab armour video. The ridges looked great. look forward to seeing more.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Feb 07, 2020 4:16 pm
Mad Cat
User avatar

Location: Active duty: USS Catalpa
Service Number: AO3/TQ6.0.79749E8
Country: United States
Bigbisont, I forget if you mentioned it before, do you have any prior experience with metal forming?

_________________
"Awww, someone tell me that's a boot!

It's a boot!"

III drops


Top
 Profile
Reply with quote
 Post subject: Re:
PostPosted: Fri Feb 07, 2020 11:15 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Thanks guys!

Dropshipbob wrote:
Bigbisont, I forget if you mentioned it before, do you have any prior experience with metal forming?


Not in the 'hit it with a hammer' sense. I work in welding supply sales, so I am pretty aware of what can be accomplished in metal, but I have never been much for actually working with it. The first few times working with metal was just in making steel stocks and barrel vents for pulse projects (simple hack, drill, and sometimes weld jobs). The first time I ever picked up the hammer and put it to aluminum was 4 years ago when I build that first set of metal armor. Prep there was a ton of youtube combined with 'guess and test'! Since then, I messed around a little bit outside the aliens universe and built my little brother a Doctor Doom mask that I was pretty pleased with.

That is pretty much it. Mostly these videos are just showing what I learned from my armor set 4 years ago.

And on that note, the next 3 videos are up. These I tried to keep to around 20 mins (figured out the 'fast forward' option in the video editor!)

Video # 4 - The ab and crotch plates (uploaded yesterday)
https://youtu.be/ROjstcAPX_k

Video # 5 - The shoulder bells
https://youtu.be/A4DKGQUlB_o

Video # 6 - The tail plate and Helmet Lobster plates
https://youtu.be/4d7NWX4vQ4w


Top
 Profile
Reply with quote
 Post subject: Re: Re:
PostPosted: Fri Feb 07, 2020 11:52 pm

Location: Derby
Country: United Kingdom
bigbisont wrote:
Thanks guys!

Dropshipbob wrote:
Bigbisont, I forget if you mentioned it before, do you have any prior experience with metal forming?


Not in the 'hit it with a hammer' sense. I work in welding supply sales, so I am pretty aware of what can be accomplished in metal, but I have never been much for actually working with it. The first few times working with metal was just in making steel stocks and barrel vents for pulse projects (simple hack, drill, and sometimes weld jobs). The first time I ever picked up the hammer and put it to aluminum was 4 years ago when I build that first set of metal armor. Prep there was a ton of youtube combined with 'guess and test'! Since then, I messed around a little bit outside the aliens universe and built my little brother a Doctor Doom mask that I was pretty pleased with.

That is pretty much it. Mostly these videos are just showing what I learned from my armor set 4 years ago.

And on that note, the next 3 videos are up. These I tried to keep to around 20 mins (figured out the 'fast forward' option in the video editor!)

Video # 4 - The ab and crotch plates (uploaded yesterday)
https://youtu.be/ROjstcAPX_k

Video # 5 - The shoulder bells
https://youtu.be/A4DKGQUlB_o

Video # 6 - The tail plate and Helmet Lobster plates
https://youtu.be/4d7NWX4vQ4w


Loving seeing your work. It's easy these days to let a 3d printer take the strain and craft like this isn't as common. It inspires me to think about buying more tools :D any pictures of the mask?


Top
 Profile
Reply with quote
 Post subject: Re: Re:
PostPosted: Sat Feb 08, 2020 1:27 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
martinr1000 wrote:

Loving seeing your work. It's easy these days to let a 3d printer take the strain and craft like this isn't as common. It inspires me to think about buying more tools :D any pictures of the mask?



Well thank you. I feel like there is almost something therapeutic about building stuff by hand and seeing it take shape. I have fun doing it most of the time.

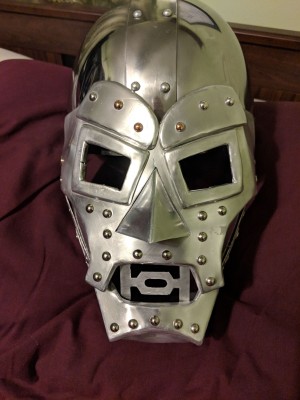

As for the mask, I only have this one (bit of a rush job there at the end so I didn't document the build at all. I regret that part).
The dome I did NOT build. I bought a basic viking helmet and simplified it even further. The face plate connects to the top dome with magnets to make it easy to get in and out of.
(it isn't fully attached there, which is why it looks crooked down the middle)
Attachment:
image0000001.jpg [ 621.8 KiB | Viewed 4716 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Sat Feb 08, 2020 2:40 pm

Location: Derby
Country: United Kingdom
yeah that's awesome. nice work


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Sun Feb 09, 2020 6:48 am
User avatar

Location: Wolfsburg Niedersachsen
Service Number: A12/TQ2.0.02132E1
Country: Germany
Great work mate really :D

_________________
Cpl N.Storey A12/TQ2.0.02132E1
MARINE RAIDER


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Fri Feb 14, 2020 10:37 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
"Video #7 - The Back Plate" is now up.
https://youtu.be/aVMpmqgJvEg

This one is a bit long at 42 mins (even with a fair amount of the hammering done at 4x speed). This was a tough piece, but I think it turned out pretty solid.

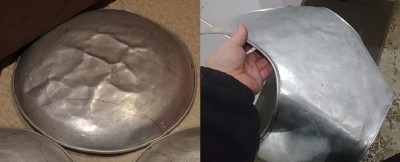

It shows how to go from a mangled sled to a pretty decent back plate.
Attachment:
back plate before and after.jpg
back plate before and after.jpg [ 120.23 KiB | Viewed 4599 times ]


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Feb 16, 2020 12:56 am
User avatar

Country: United States
This is saving me so much trial and error.
The thing about metal work that I struggle with is picking the order in which I make bends and cuts.
It's like it needs to be a very specific order of operations, being able to look at shapes and know which parts to hit first, is a skill that I havnt noticed up until now. It's not like playing with clay, its like you kink something and now its a three hour job getting it back.
Your youtube channel is awesome!


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Feb 16, 2020 1:13 pm
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom
Kicking ass again mate!! Following this with great interest :)

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Feb 18, 2020 2:11 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Thanks again everyone.

Video #8 - 'Shoulder Pauldrons' is up!
https://youtu.be/nS3eYUV_Rxo


I am hopeful tomorrow I can get enough work done on the breastplate to make that video #9.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Wed Feb 19, 2020 6:23 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
This is so great!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Sat Feb 22, 2020 2:21 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Videos 9 and 10 are up.

Video 9 - The Breastplate
https://youtu.be/cBGNcFtQyY0

Video 10 - Recessed details & shapes
https://youtu.be/41n4CkA7Oao

This is where we are so far.
Attachment:
20200221_201326.jpg [ 681 KiB | Viewed 4382 times ]


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Sat Feb 22, 2020 8:00 pm
reload
User avatar

Location: Hamburg
Service Number: A03/TQ3.0.12136E1
Country: Germany
Great work!

_________________
Sgt. Frank Peters 'reload' Smartgun Operator
A03/TQ3.0.12136E1 "It will be no picknick!"
UKCM Foreign Legion: The Deviant Dragoons



Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Sat Feb 22, 2020 8:17 pm
User avatar

Location: Wolfsburg Niedersachsen
Service Number: A12/TQ2.0.02132E1
Country: Germany
Yes in deed amazing work there mate.

_________________
Cpl N.Storey A12/TQ2.0.02132E1
MARINE RAIDER


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Mar 02, 2020 12:56 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Just "annealed" the powder coated aluminum sheet that I am using for the greaves (shin-guards). Holy cow metal is crazy! Hoping to get the video edited and up tomorrow.
You know...check "BigbisonT Props" on youtube. Subscribe if you are feeling frisky...


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Sun Mar 08, 2020 6:46 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Video #11 is up. This is the helmet parts vid. I am still editing the greaves and annealing. In my opinion this the 'bump plate' is the hardest piece and I tackle it in this one.

https://youtu.be/wKjUfXS-KBA


Top
 Profile
Reply with quote
 Post subject: Re: Taking another crack at metal armor - Videos are UP!
PostPosted: Thu Mar 12, 2020 2:13 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
12 and 13 are up. We are nearing the end and all 'new construction' is DONE! (thank goodness).
Attachment:
Video 12 cover.jpg
Video 12 cover.jpg [ 276.41 KiB | Viewed 3581 times ]


Video 12 - Greaves (knee pads/shin guards/calves). This is the longest yet, topping a full hour, but there is fire in the middle! We anneal some sheet metal in 2 diff ways.
(FYI, Terry English said that making a good calf portion is the hardest shape. I can't argue with him.)
https://youtu.be/GHa0-7-WIMc

Video 13 - Required 'extras'. Some you build. Some you buy. Some you can get creative with, but this is the stuff you should have ready prior to strapping and painting. All are needed to finish off the build.
https://youtu.be/_9NJzMEhgVY



The way I figure it, there will only be 3 more videos in this particular series. We will have strapping, painting, and then a final video of 'optional' extras/accessories to really put the finishing touches on.


Top
 Profile
Reply with quote
 Post subject: ear hinge
PostPosted: Fri Mar 13, 2020 1:17 am
User avatar

Country: United States
Those videos inspired me to give it a shot!
mine looks more like the hot toys figures style.

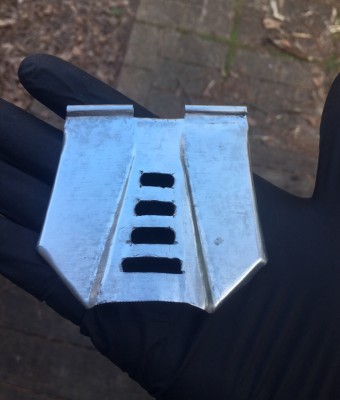

C2FDA7AC-FA5C-4ABB-BF35-3BA27EF8ADFA.jpeg [ 576.1 KiB | Viewed 3482 times ]

Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Mar 13, 2020 12:47 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Sweet man. Very crisp.


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 46 posts ]  Go to page 1, 2  Next



You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
