So I just got my SPH..

Looking around, it doesn't seem as if there's a lot of reference to be had on the drop lids.

I'm going to be attempting to replicate Ferro's helmet, was wondering if anyone had attempted the greeblies on the ears?

I was also wondering if anyone knew if the SU helmets were painted or retained the original OD plastic?

Couldn't find anything helpful in the archives...

Disposable camera parts... painted OD.

Looking good

Two of these photos were ebay images, the rest I believe came
from Jesse Degraff and were posted to the old Ezboard forums.

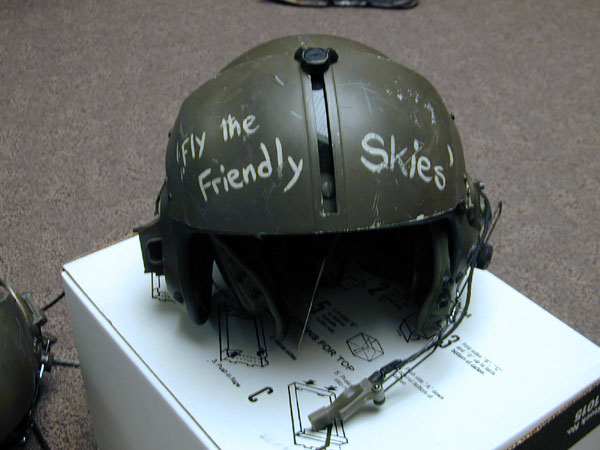

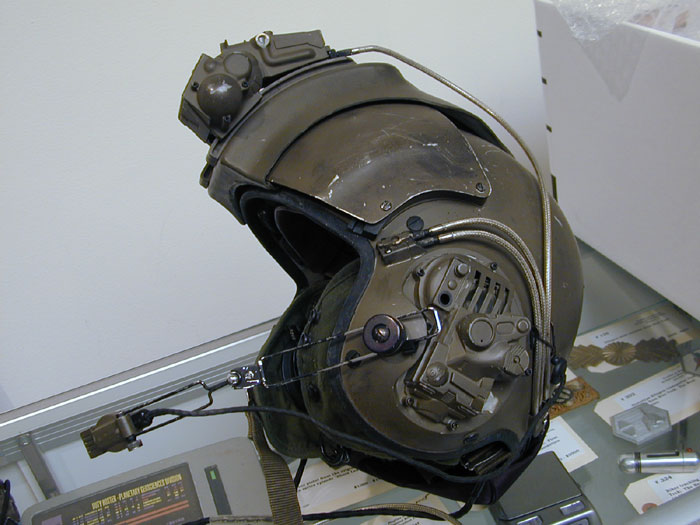

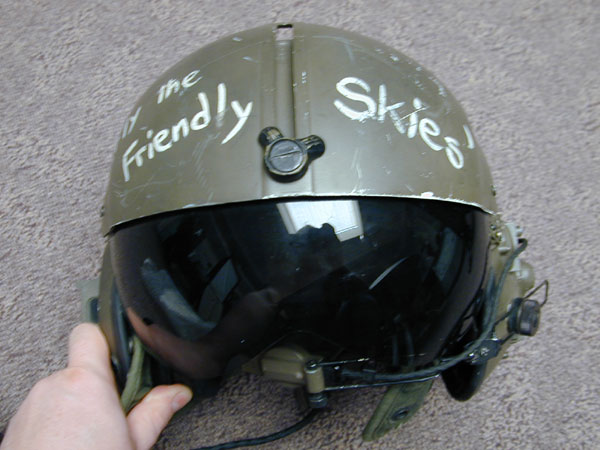

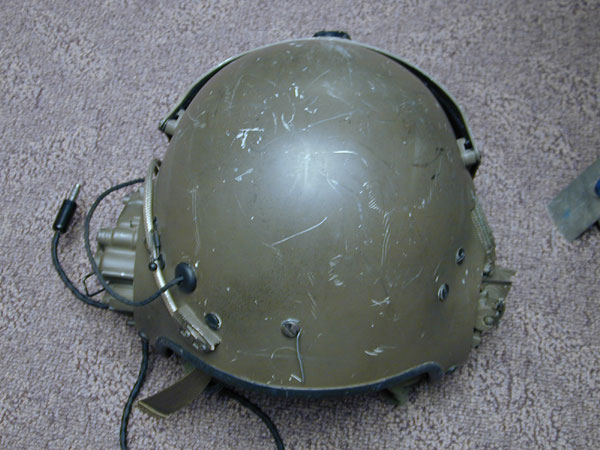

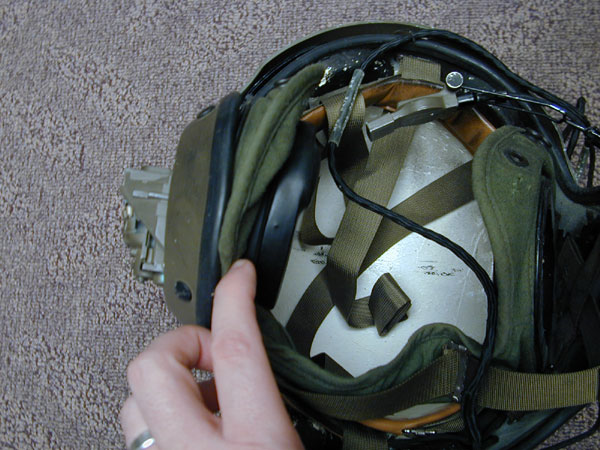

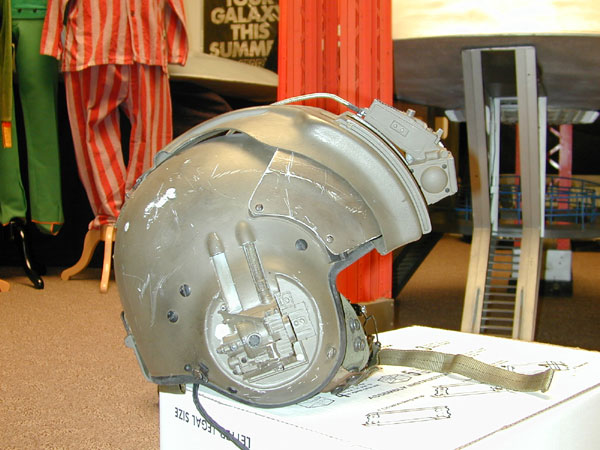

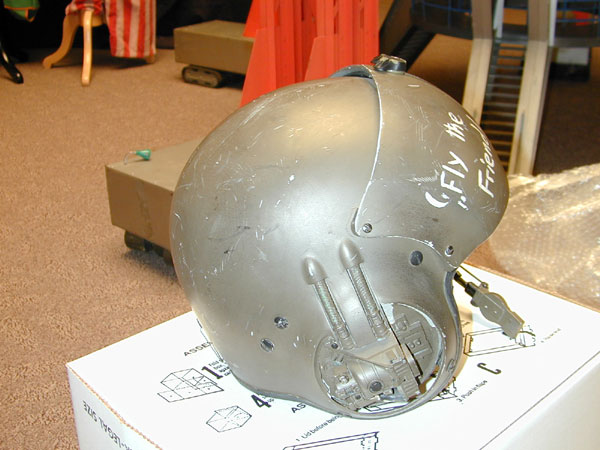

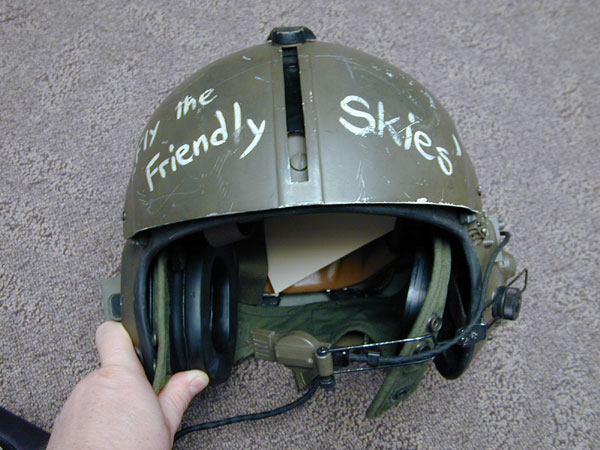

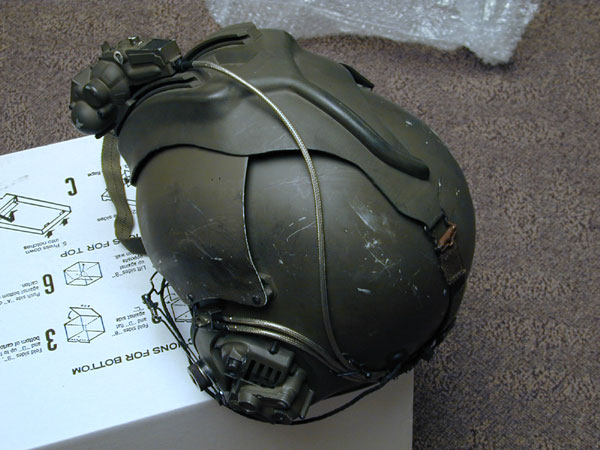

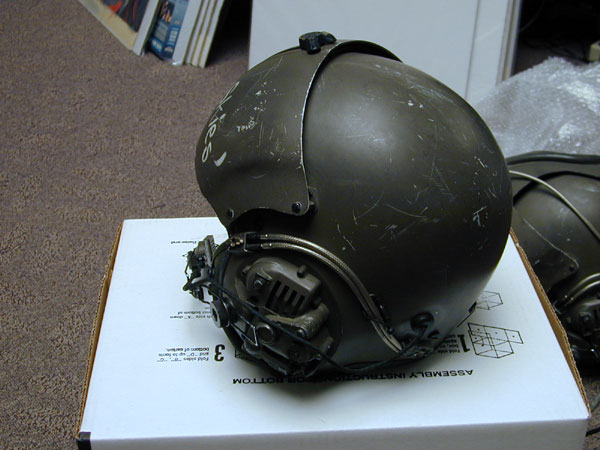

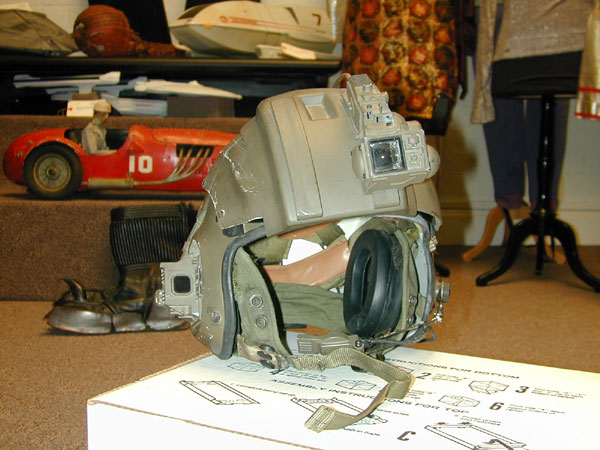

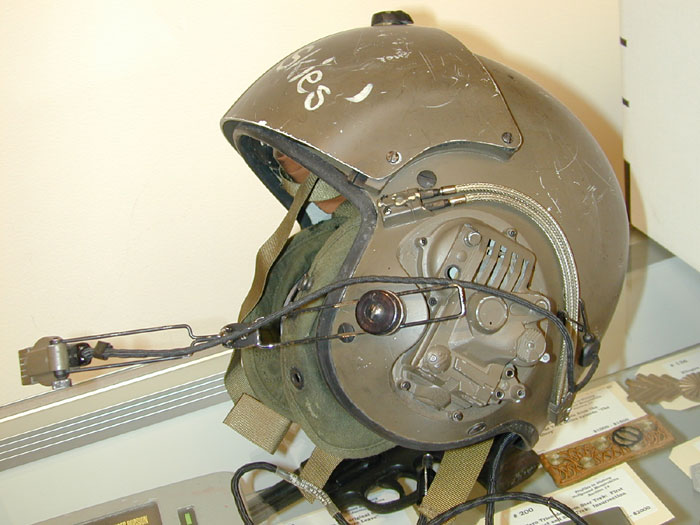

The photos are of both Ferro's and Spunkmeyer's helmets.

Enjoy!

Russ

_________________
"A writer needs a pen, a painter a brush, and a filmmaker an army." - Orson Wells.

http://www.rookscastle.com
http://www.alchemyarms.com

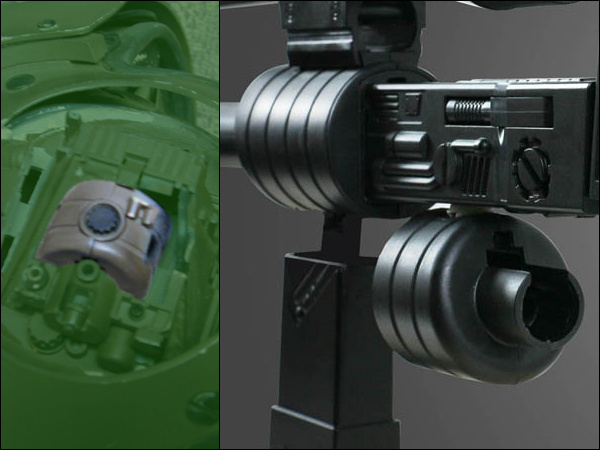

Nice to see more of G1 Megatron's parts being used

_________________
A11/TQ1.0.32150E1 Murphy, J - Covert recording headcam. There is no flashing red light when you are on Kona-Cam
Weyland-Yutani: Their projects are intentionally full of bugs. Avoid!

Amazing pics!



Which part of Megabonce are we looking at?

Is the greeble on the right side of both helmets supposed to be the equivalent of a helmet cam?

Awesome pics!

As for the Megatron piece- it looks like part of the barrel extension? The part that slipped over the P38 barrel-

_________________
I told you I'd shoot, but you didn't believe me! WHY DIDN'T YOU BELIEVE ME!?!

More motorcycle bits too. The cable is titanium look brake cable outer.

The cables are HAMA cable releases.



The ones I see in the shops now though are all black.

Cheers

Darren

My bad. They look a hell of a lot like brake cables, then I found these:

http://cgi.ebay.co.uk/5mm-Titanium-Look ... dZViewItem

That would be a good substitute if you cant find them. They look to be basically the same thing anyway, all you'd need to do is fabricate something to go on the ends which shouldnt be too hard I imagine.

nice find mate.

Cheers

Darren

The brake cables in my bike actually have the metal tips on the end, which is what I thought I recognised. Strange coincidence

Edit: here ya go:

http://cgi.ebay.co.uk/Brake-Cable-Road- ... dZViewItem

Birdie...if you ordered that Megatron I sent you the link to, then you already have the piece needed


Derek

_________________
Cpl D. Smith CMD
A04/TQ1.0.62147E1


RIP Pvt. Chris Chulamanis A14/TQ4.0.66993E7 You are missed.

Great photos I agree!

There's something awfully familiar about that piece...



Like the bottom part of a Franchi SPAS 12 foregrip with a couple greeblies attached perhaps.

_________________
Rick "Ripstick"
A03/TQ3.0.12142E1

Thats the Megatron piece were talking about Rick...

but that does look close to the foregrip.


Derek

_________________
Cpl D. Smith CMD
A04/TQ1.0.62147E1


RIP Pvt. Chris Chulamanis A14/TQ4.0.66993E7 You are missed.

Alright, alright... so I've got 1980's Italian gun parts in my head instead of 1980's Transformers parts. Although my brother did have Megatron, that part simply wasn't ringing a bell.

However, I am now starting to believe that Kevin knows what he's talking about...

_________________
Rick "Ripstick"
A03/TQ3.0.12142E1

Woah!
Nicely spotted!

Cheers,
Stefan

Oh man...I can bet his head is swelling up bigger than his arms right now


Derek

_________________
Cpl D. Smith CMD
A04/TQ1.0.62147E1


RIP Pvt. Chris Chulamanis A14/TQ4.0.66993E7 You are missed.

Is that even possible? Perhaps you've somehow forgotten the size of those guns he's carryin'?!?

_________________
Rick "Ripstick"
A03/TQ3.0.12142E1

Made a start....still need to do some cleanup on the shape of the cutouts....then onto he scratchbuild

What tool did you use to cut the ears Birdie?


Derek

_________________
Cpl D. Smith CMD
A04/TQ1.0.62147E1


RIP Pvt. Chris Chulamanis A14/TQ4.0.66993E7 You are missed.

The 'kidney' shape, I used the dremel to cut out a square to get access, then used a jigsaw to cut out the shape. I cut about 1/4 inch inside the pencil template.

I then used a drill mounted sanding drum to sand up to the lines.

The other side I used a junior hacksaw to just 'slice a section' through the ear.

Now I just need to hand-sand to get them 'just so'.

The plastic cuts pretty well, you shouldn't get any melt or shatter issues.

If you are good with a dremel cutter, I daresay you could do most of the job wth that. I don't get on with the things...

Should have my Smart Gun done tomorrow

Lucky....


Derek

_________________
Cpl D. Smith CMD
A04/TQ1.0.62147E1


RIP Pvt. Chris Chulamanis A14/TQ4.0.66993E7 You are missed.

I attempted scratch building the ear parts back in 2001, but in comparison to the pics of the screen used helmets, I was waaaaay off.

But I was mainly going for something "close". Back then, Jesse was building the details using much better reference than I had (and this was before the above photos were found), so I built mine with it in mind to replace mine for his.

Still waiting till this day!

_________________
"Awww, someone tell me that's a boot!

It's a boot!"
