Author:  dynofiend [ Mon Oct 24, 2016 8:00 am ]
Post subject:  Matrix PR 3d printed functionality upgrades

I game my pulse rifle, and there were a few niggles that made it harder to use than I would have liked.

I modeled up some parts in 123d and 3d printed them.

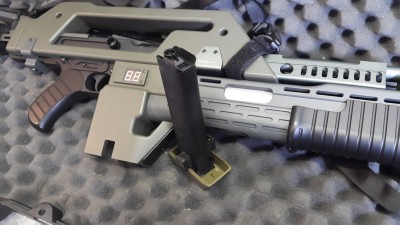

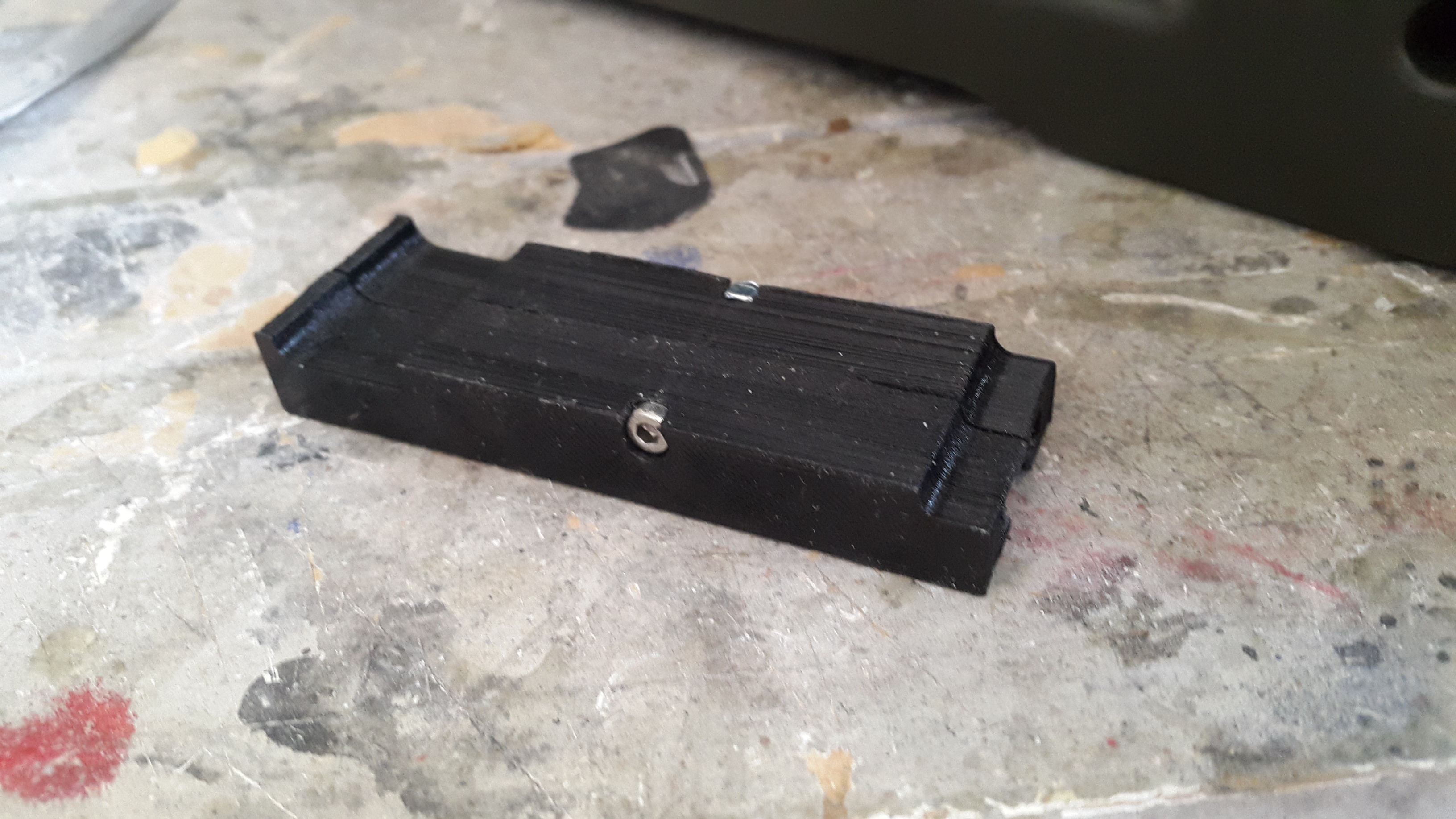

Firstly was a clip to attach the mag to the base unit. I based the design on a picture I'd seen of someone else that had made a similar one. It took several revisions to get it right!

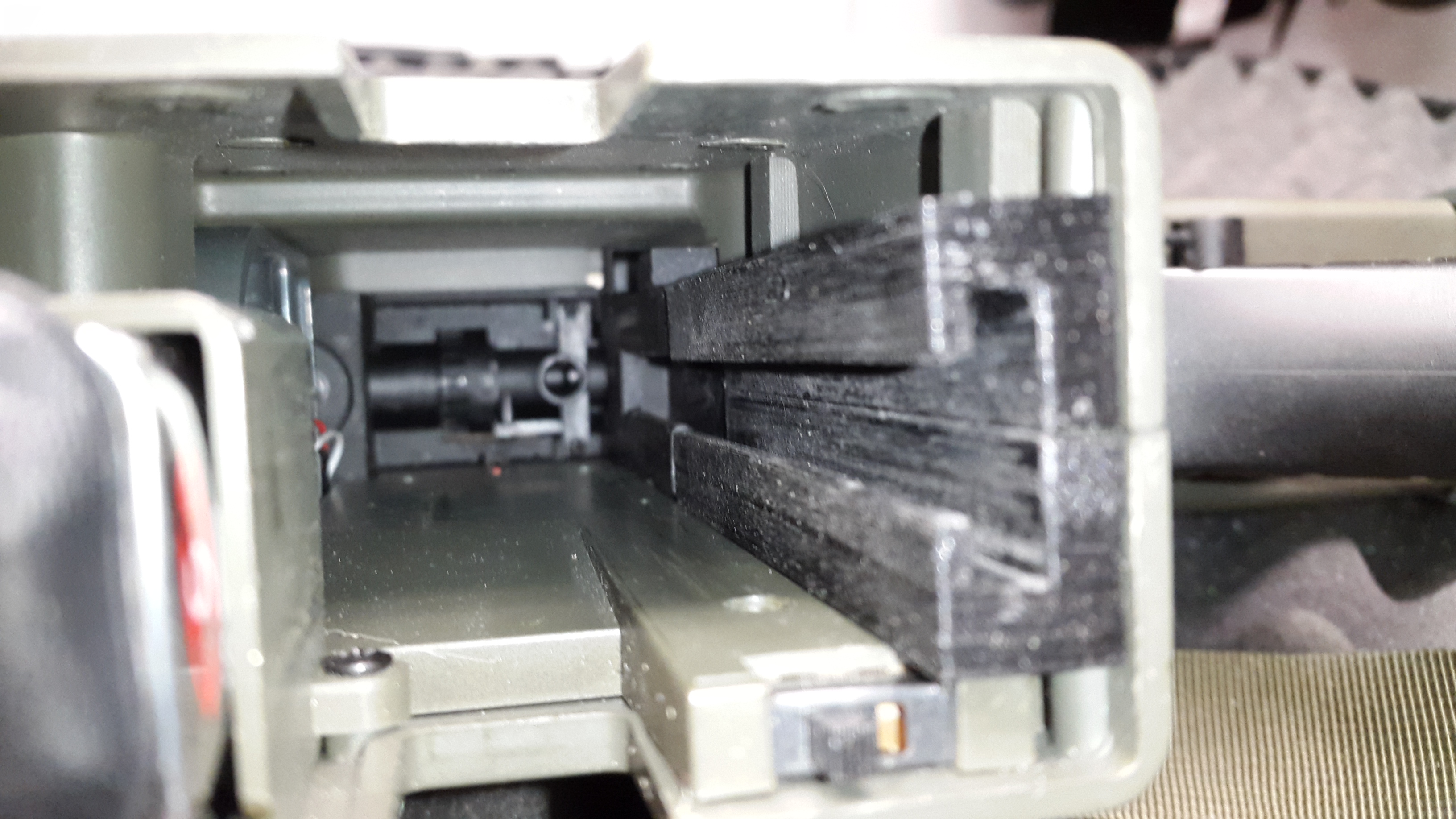

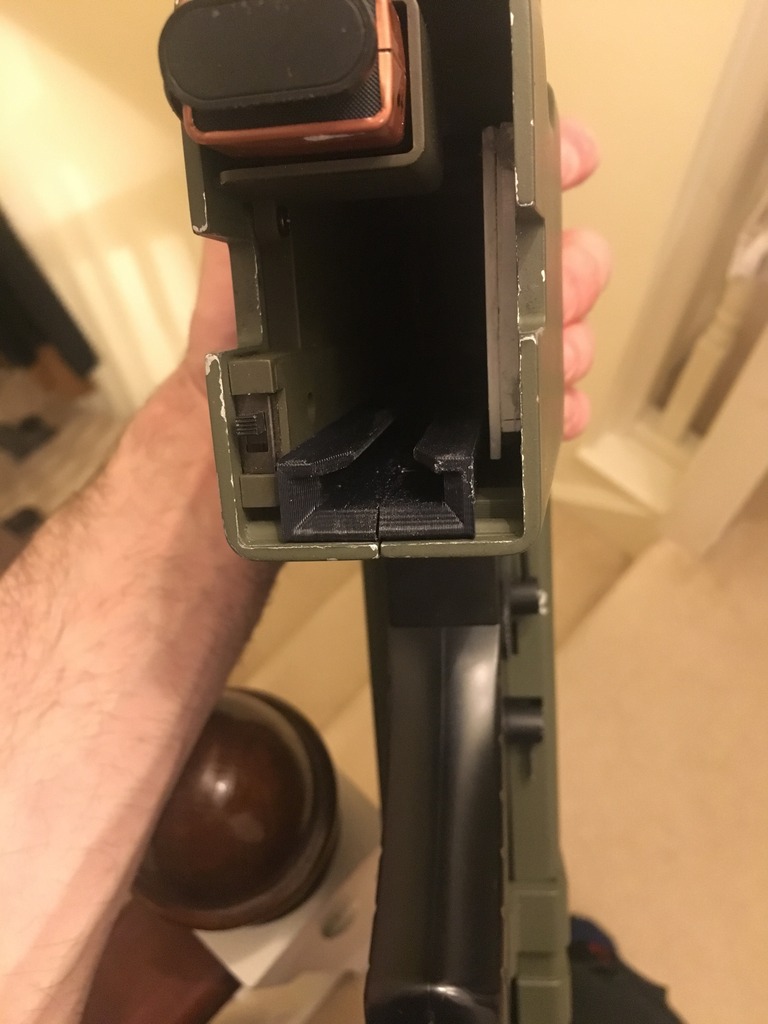

The second was an extension to the slot that the mag feeds into to make inserting the mag easier. I intend making an improvement to this to make it smoother and even easier by tapering the slot and making it more open at the bottom.

20161023_203826.jpg [ 1.49 MiB | Viewed 7429 times ]
20161023_163000.jpg [ 1.71 MiB | Viewed 7429 times ]
20161023_162954.jpg [ 1.91 MiB | Viewed 7429 times ]
20161002_135101.jpg [ 1.53 MiB | Viewed 7429 times ]

Author:  stimpy [ Mon Oct 24, 2016 11:28 am ]
Post subject:

That extra guide would be great for those fiddly mag changes. Great job!

Author:  Damster117 [ Thu Oct 27, 2016 3:09 pm ]
Post subject:  Re: Matrix PR 3d printed functionality upgrades

Would you consider sharing the files for these or maybe offering them? I actually use mine to play airsoft also and reloading under fire is interesting to say the least!

Author:  Corp_Hicks [ Fri Oct 28, 2016 1:31 pm ]
Post subject:

I'd be really interested in purchasing one off you as well!

Author:  tcm3320 [ Sat Oct 29, 2016 2:18 am ]
Post subject:  Re: Matrix PR 3d printed functionality upgrades

Me too ill be using mine for airsoft as well

Author:  dynofiend [ Fri Nov 04, 2016 8:03 am ]
Post subject:

Hey dudes, would love to offer these for sale but postage would be a killer from New Zealand!

If anyone is interested please drop me a line on and we can work something out :)

Author:  Damster117 [ Tue Nov 08, 2016 10:27 am ]
Post subject:  Re: Matrix PR 3d printed functionality upgrades

Email sent!

Author:  tcm3320 [ Mon Nov 21, 2016 2:47 am ]
Post subject:  Re: Matrix PR 3d printed functionality upgrades

Sending email

Author:  Corp_Hicks [ Mon Nov 21, 2016 3:24 pm ]
Post subject:

I shall be dropping you a line in the New Year, after Christmas is out the way.

Author:  dynofiend [ Thu Mar 09, 2017 8:12 am ]
Post subject:

Just a little update on this. I came up with a V2 version of the slot extension (which is the one that everyone has subsequently bought from me) which improves reloading even further by having a tapered entry slot.

I have also modified five KA midcap mags (using very helpful advice from this forum), and in the process, modelled and printed some simple joiners/inserts to provide a tight friction fit and allow a super strong join of the two halves of the shortened mag.

Here are some photos.

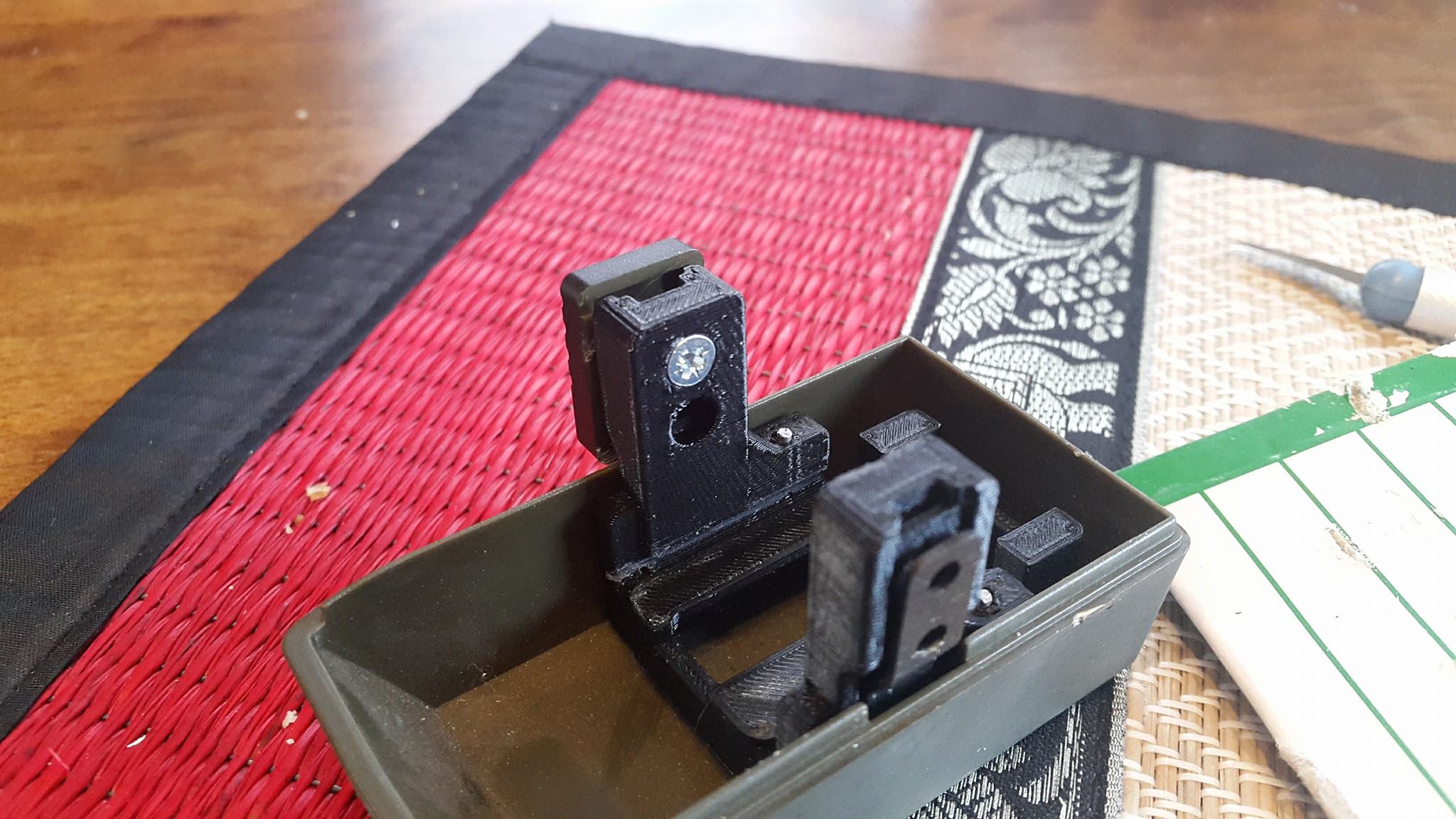

The slot extension. Picture courtesy of Damster117
2E0F3A90-E619-4C92-B96C-E185482C9277.jpg [ 123.11 KiB | Viewed 5099 times ]

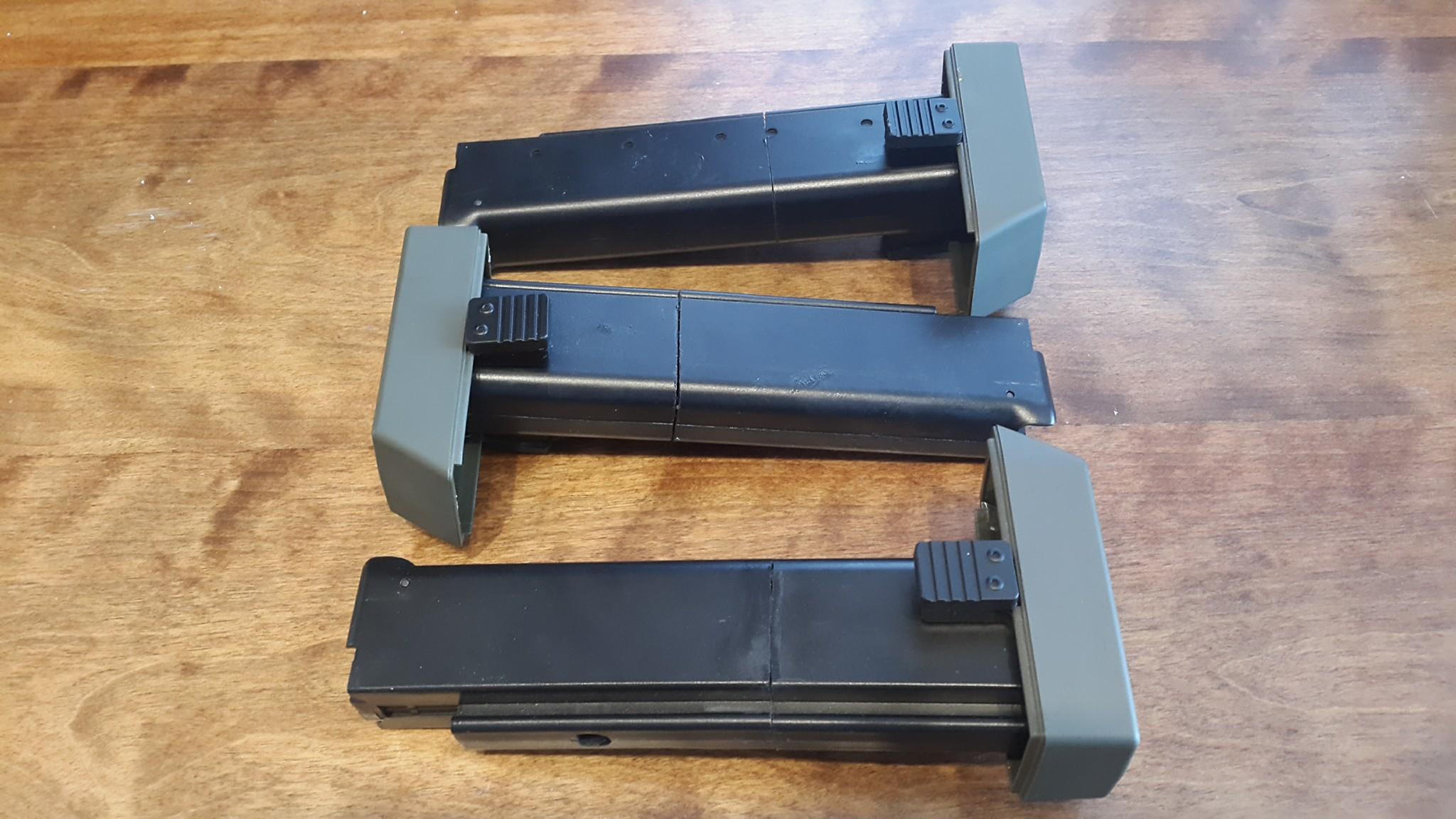

Three successfully modified KA Mid caps. (they hold 90 rounds)
15895649_1285545524873651_2733439649418893111_o.jpg [ 233.19 KiB | Viewed 5099 times ]
Mags midway through modifying.
15875354_1285545258207011_6210885639184068818_o.jpg [ 208.28 KiB | Viewed 5099 times ]

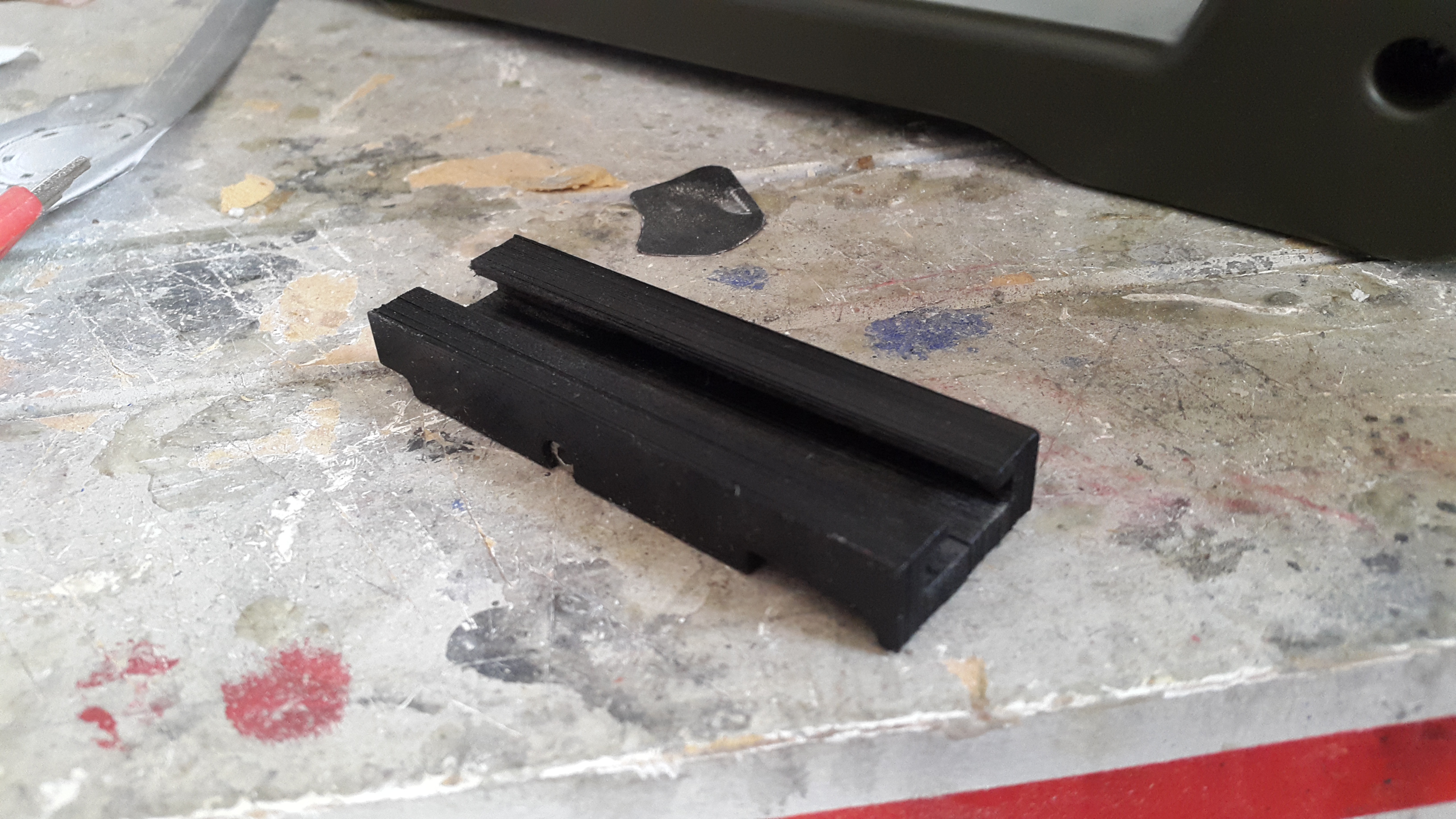

The mag base in use.
15875158_1285545471540323_9122154869461213870_o.jpg [ 283.3 KiB | Viewed 5099 times ]

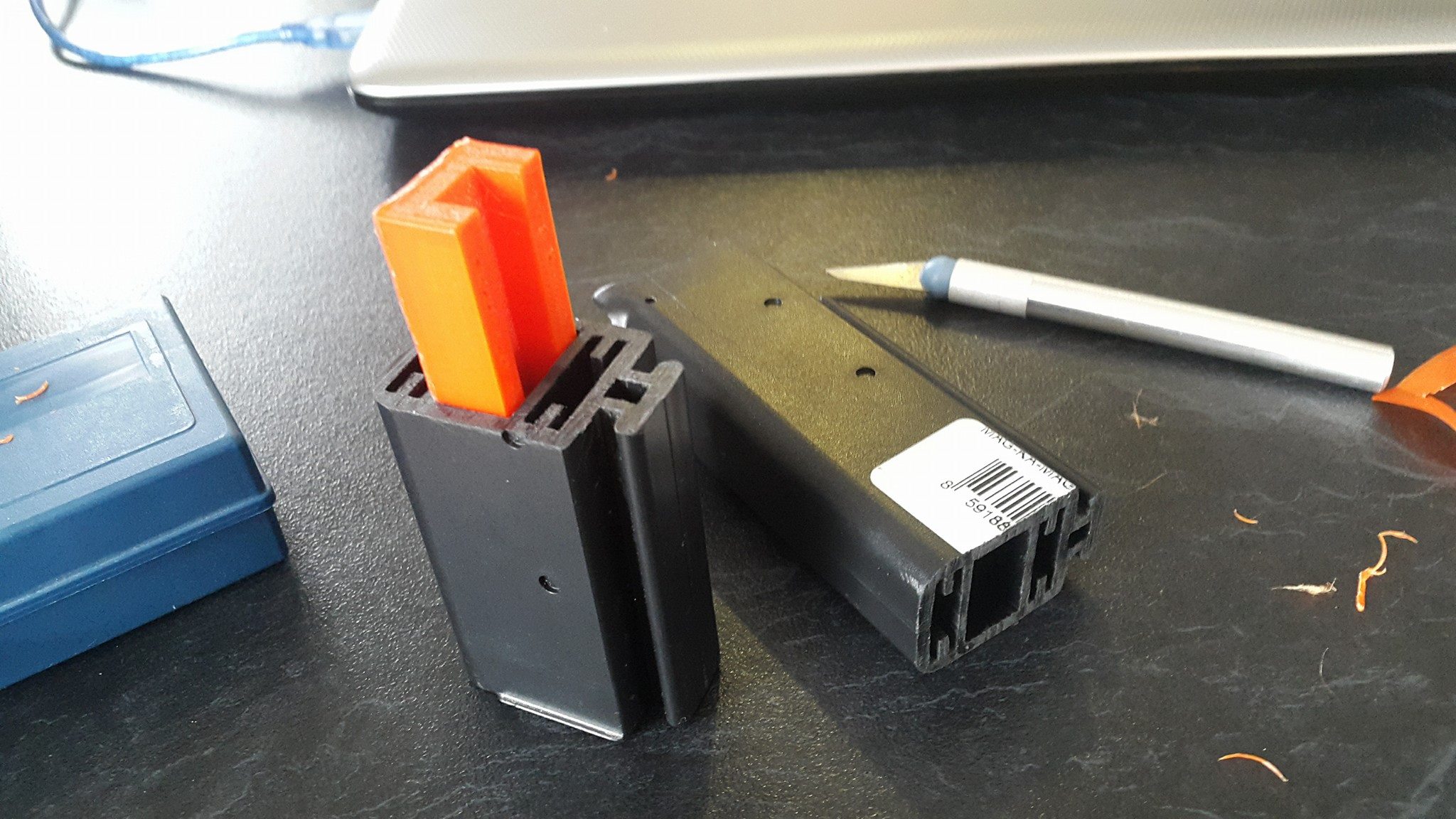

The mag joiner.
15731984_1280804305347773_1202248338490633911_o.jpg [ 370.24 KiB | Viewed 5099 times ]

Author:  stimpy [ Thu Mar 09, 2017 10:42 am ]
Post subject:

Nice mods! Ill definitely be interested in your mag joiners when i get my mid caps through the post!
