TS826
 Post subject: Welder build
PostPosted: Sun Mar 26, 2023 8:11 pm

Location: Chicago
Until landing a vintage grip, I'm going with the Wired Workshop plans.

viewtopic.php?f=5&t=19815

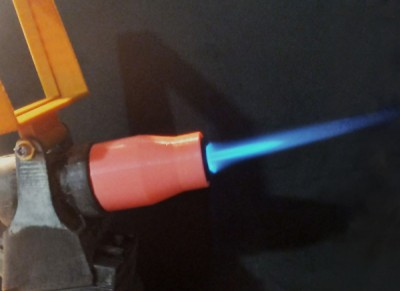

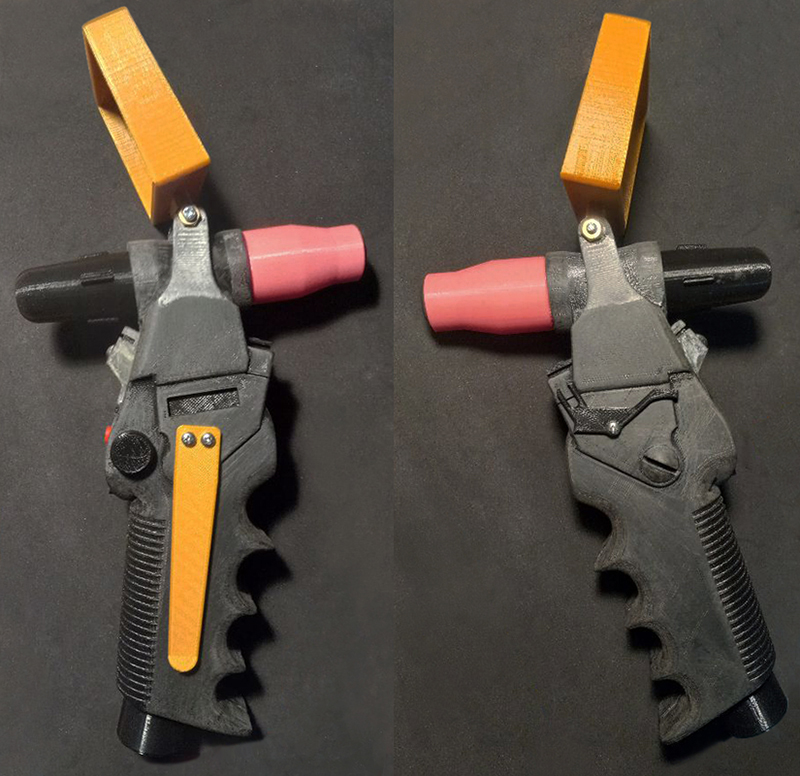

PLA printed with different colors to resemble some of the original parts.
Had to sand the inside pretty well to keep some of the moving parts from binding, but afterward it works well.

Welder6.jpg [ 383.69 KiB | Viewed 1296 times ]

Welder6b.jpg [ 117.32 KiB | Viewed 1296 times ]

Top
 Profile
Reply with quote
Corp Hicks
 Post subject:
PostPosted: Sun Mar 26, 2023 8:28 pm
Mercenary
User avatar

Location: KMS Bismarck
Country: Germany
Awesone build...

Is there any chance to get those 3D files.. ?
I have the grip, but I'm not that good to build myself those 3D files...

Thanks anyway....
Top
 Profile
Reply with quote
knoxvilles_joker
 Post subject: Re:
PostPosted: Sun Mar 26, 2023 11:09 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
Corp Hicks wrote:
Awesone build...

Is there any chance to get those 3D files.. ?
I have the grip, but I'm not that good to build myself those 3D files...

Thanks anyway....


https://www.thingiverse.com/thing:5253059

I built one. I had to add a couple of screws to make sure it stays together better. There is another forum thread on this. And yes it works. refilling is annoying but doable...

_________________
The impossible takes a while longer and goes over budget too...
Top
 Profile
Reply with quote
knoxvilles_joker
 Post subject:
PostPosted: Sun Mar 26, 2023 11:10 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
and fyi the belt clip piece needs to be metal so it don't break when clipping on a belt...

_________________
The impossible takes a while longer and goes over budget too...
Top
 Profile
Reply with quote
septic
 Post subject:
PostPosted: Mon Mar 27, 2023 9:22 pm
User avatar

Location: Wellywood.
Service Number: A10/TQ0.0.82146E1
Country: New Zealand
Very cool! I notice that there are a few [read: hundreds] of those little butane torches avaible, I'd assume that for this 3d model that it requires a torch with the angled nozzle, yeah (as opposed to the dead horizontal nozzled ones)?

_________________
Cpl Aron "septic" Williams
A10/TQ0.0.82146E1
Top
 Profile
Reply with quote
TS826
 Post subject: Re: Welder build
PostPosted: Tue Mar 28, 2023 1:27 am

Location: Chicago
This is the style of torch needed.
The same model is listed under different brand names, but are identical.

Welder07.jpg [ 50.85 KiB | Viewed 1230 times ]

Top
 Profile
Reply with quote
knoxvilles_joker
 Post subject:
PostPosted: Wed Mar 29, 2023 11:07 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
The torch needs to match whatever the housing was built for.

_________________
The impossible takes a while longer and goes over budget too...
Top
 Profile
Reply with quote
TS826
 Post subject: Re: Welder build
PostPosted: Fri Apr 14, 2023 5:47 pm

Location: Chicago

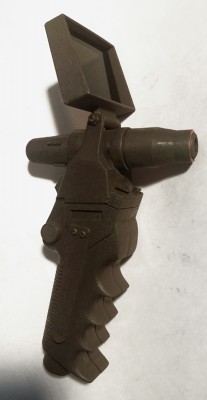

A quick paint job and lens installed.

Welder08e.jpg [ 164.97 KiB | Viewed 1096 times ]

Top
 Profile
Reply with quote
metalalien
 Post subject:
PostPosted: Sun Apr 16, 2023 12:37 am
User avatar
sexy!

_________________
still alive
Top
 Profile
Reply with quote
friendlyskies
 Post subject: Re: Welder build
PostPosted: Sun Apr 16, 2023 8:15 pm
User avatar

Location: Yo Momma
Country: United Kingdom
Very nice work.
Top
 Profile
Reply with quote
