 Post subject: idea on flash replacement for sentry gun terminal program
PostPosted: Thu Mar 18, 2021 7:39 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
The kicker is that with pygame you can have great control over what is drawn on the screen and how the display changes.

Does anyone have pixel measurements of the screen?

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Mar 21, 2021 7:52 am

Service Number: A05/TQ2.0.32141E1
Country: United States
The gridcase had a resolution of 640x200 pixels and ran a custom ms-dos 2.11 grid os.

https://www.old-computers.com/museum/co ... t=1&c=1054

link courtesy of Gman.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Mar 21, 2021 9:49 am

Service Number: A05/TQ2.0.32141E1
Country: United States
According to this site:
https://int10h.org/oldschool-pc-fonts/fontlist/

The most likely font used on the grid cases would have been the IBM MDA font. between lighting and other things I think the pixel differences would have made things difficult to tell font lettering pixel wise.

The other possibility is that the batch file that they would have used could have had custom screen made fonts. But knowing time constraints it would have been easier to use built-in fonts instead of making a custom menu lettering scheme.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Mar 21, 2021 8:42 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
The more and more I look at the sentry gun terminal program the more it appears that, a custom font may have been generated or a custom bitmapped screen character set was used. The IBM MDA TTF font is the closest I have found so far, but, nothing matches perfectly, but, between screen granularity, later upscale of original footage, lighting, and blur from lighting it is not impossible to say that some details may have been lost or skewed creating much of the confusion.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Mar 21, 2021 10:16 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
This is the code as it stands and I will stress that this is a very primitive deal that uses mouse versus keyboard input at the moment.

Code:
import pygame
import sys


# initializing the constructor
pygame.init()
# grid case resoolution is 640 x 200 pixels, 80 charactoers x 25 lines monochrome
# screen resolution
res = (640,200)

line_width = 10

# opens up a window
screen = pygame.display.set_mode((res), pygame.RESIZABLE)

# white color
color = (0,3,99)

# light shade of the button
color_light = (255,255,0)

# dark shade of the button
color_dark = (100,100,100)

# stores the width of the
# screen into a variable
width = screen.get_width()

# stores the height of the
# screen into a variable
height = screen.get_height()


pygame.display.update()

# defining a font
smallfont = pygame.font.SysFont('Corbel',35)

# rendering a text written in
# this font
text = smallfont.render('quit' , True , color)

while True:

   for ev in pygame.event.get():

      if ev.type == pygame.QUIT:
         pygame.quit()

      #checks if a mouse is clicked
      if ev.type == pygame.MOUSEBUTTONDOWN:

         #if the mouse is clicked on the
         # button the game is terminated
         if width/2 <= mouse[0] <= width/2+140 and height/2 <= mouse[1] <= height/2+40:
            pygame.quit()

   # fills the screen with a color 60,25,60
        # this sets the background color
   screen.fill((0,0,0))
   pygame.draw.rect(screen, color_light, (0, 0, 640, 5), 0)
   pygame.draw.rect(screen, color_light, (0, 195, 640, 5))
   pygame.draw.rect(screen, color_light, (0, 0, 5, 200), 0)
   pygame.draw.rect(screen, color_light, (635,0,5, 200), 0)

   # stores the (x,y) coordinates into
   # the variable as a tuple
   mouse = pygame.mouse.get_pos()

   # if mouse is hovered on a button it
   # changes to lighter shade
   if width/2 <= mouse[0] <= width/2+140 and height/2 <= mouse[1] <= height/2+40:
      pygame.draw.rect(screen,color_light,[width/2,height/2,140,40])

   else:
      pygame.draw.rect(screen,color_dark,[width/2,height/2,140,40])

   # superimposing the text onto our button
   screen.blit(text , (width/2+50,height/2))

   # updates the frames of the game
   pygame.display.update()

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Sat Mar 27, 2021 11:22 am

Service Number: A05/TQ2.0.32141E1
Country: United States
OK going through things I have limited options on borders. I have to use a background image to have a resizeable border. Pygame does not allow for resizable bordering rectangles.

This is a simple button layout
Code:
import pygame
from pygame_widgets import Button
pygame.init()
win = pygame.display.set_mode((640, 200))

button = Button(
            win, 5, 46, 158, 50, text='System\nMode',
            fontSize=16, margin=20,
            inactiveColour=(255, 0, 0),
            pressedColour=(0, 255, 0), radius=20,
            onClick=lambda: print('Click')
         )
#button2 = Button(
 #           win, 4, 4,
  #       )

run = True
while run:
    events = pygame.event.get()
    for event in events:
        if event.type == pygame.QUIT:
            pygame.quit()
            run = False
            quit()

    win.fill((255, 255, 255))

    pygame.draw.circle(win, (255, 0, 0), (30, 25), 20, 1)
    button.listen(events)
    button.draw()

    pygame.display.update()

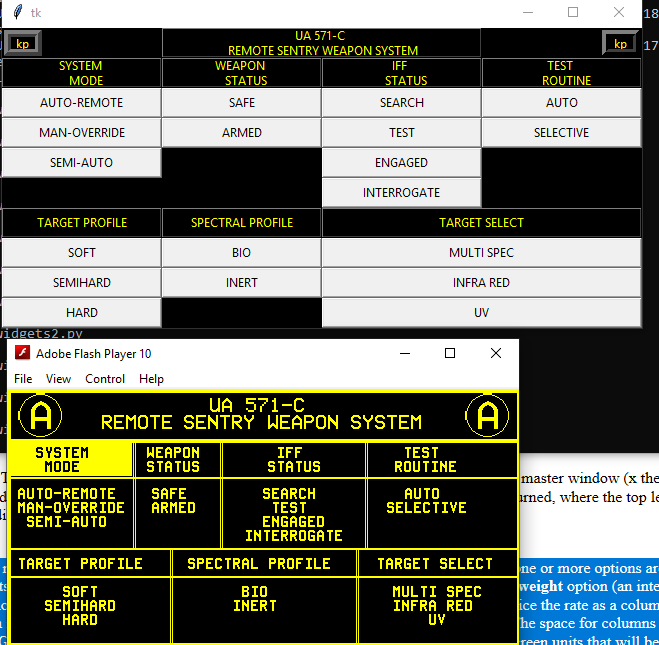

This is a more accurate option
Code:
# Import module
from tkinter import *
from PIL import Image, ImageTk

# Create object
root = Tk()

# Adjust size
root.geometry("640x200")

# Specify Grid
Grid.rowconfigure(root,0,weight=1)
Grid.columnconfigure(root,0,weight=1)

Grid.rowconfigure(root,1,weight=1)

#image files
photo = PhotoImage(file = r"c:\Menu_title.png")


# Create Buttons
# master, option=value, ...
# activebackground, activeforeground, bd, bg, command, fg, font, height, highlightcolor, image, justify, padx, pady, relief, state, underline, width, wraplength
button_1 = Button(root,text="Button 1")
button_2 = Button(root,justify=CENTER,text="Button 2")
gun_1 = Button(root,text="kp")
gun_2 = Button(root,text="kp")
header = Button(root, image = photo, compound = TOP)

# Set grid
# widget.grid(grid_options)
# column, columnspan, ipadx, ipady, padx, pady, row, rowspan, sticky
gun_1.grid(row=0,column=0,ipadx=2,ipady=2,padx=2,pady=2,sticky="NW")
gun_2.grid(row=0,column=2,sticky="NE")
button_1.grid(row=1,column=0,sticky="NSEW")
button_2.grid(row=2,column=0,sticky="NSEW")
header.grid(row=0,column=1,sticky="NEW")

# Execute tkinter
root.mainloop()


This is a simpler menu interface:
Code:
import pygame
import pygame_menu

pygame.init()
surface = pygame.display.set_mode((600, 400))

def set_difficulty(value, difficulty):
    # Do the job here !
    pass

def start_the_game():
    # Do the job here !
    pass

menu = pygame_menu.Menu(300, 400, 'Welcome',
                       theme=pygame_menu.themes.THEME_BLUE)

menu.add.text_input('Name :', default='John Doe')
menu.add.selector('Difficulty :', [('Hard', 1), ('Easy', 2)], onchange=set_difficulty)
menu.add.button('Play', start_the_game)
menu.add.button('Quit', pygame_menu.events.EXIT)

while True:
    menu.mainloop(surface)




This is as close as I can get on the loading bar for the start menu so that part is more or less sorted:
Code:
import pygame
import time
from progress.bar import ChargingBar
pygame.init()
mylist = [1,2,3,4,5,6,7,8]
bar = ChargingBar('Sys Init', max = len(mylist))
for item in mylist:
    bar.next()
    time.sleep(1)
bar.finish()

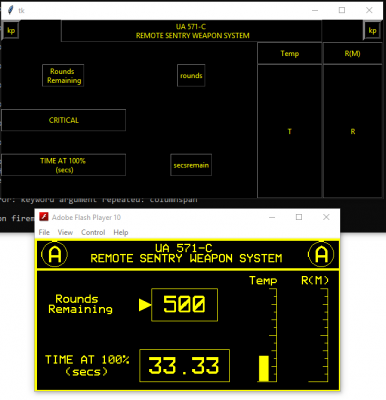

Basically scenes will have to be used which is the nomenclature to denote initialization screens, level screens, and quit/reload screens.

This is mouse interactive but I will get it also or keyboard interactive. I just have to get the look set first as that is the biggest piece.

I am trying to keep the code as clean and compact as possible and running with as few resources as possible. I will also try to add modularity to things so that this could plug in to other things.

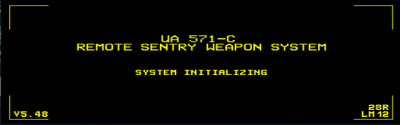

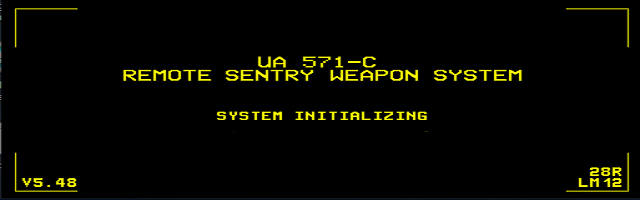

sentryinit.png [ 11.73 KiB | Viewed 476 times ]

Menu_title.png [ 1.12 KiB | Viewed 476 times ]


_________________
The impossible takes a while longer and goes over budget too...
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Apr 01, 2021 7:10 am
Proceed on a 2-1-6...
User avatar

Location: Sunny Sussex
Service Number: A02/TQ2.0.52141E1
Country: United Kingdom
Nice work!

_________________
A02/TQ2.0.52141E1

"Errr... Roger that's a 2-1-6..."


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Thu Apr 01, 2021 10:30 am

Location: Derby
Country: United Kingdom
yep, looking good


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Apr 01, 2021 2:05 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
I will have two version in the end. I will make every attempt for accuracy. One will use a mouse driven interface and another a keyboard driven one.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Fri Apr 02, 2021 11:46 am

Location: Derby
Country: United Kingdom
Hi, don't know if this helps or not but i had a go at putting a blur method into the mix so it emulates the screen blur in the movie. Not sure what's going on with the text but if it helps i'll keep looking.

it's controlled by the numberOfBlurLoops argument passed to the method addBlur(). 0 loops = no blur and then the more loops you have the more blur. I apply blur to the base image that has been rendered in the game loop. once the blur has happened i overlay the original rendered image back on top for clarity although i'm thinking this may be too harsh and could be tweaked.

anyway if this is no use to you no problem but it was fun anyway.

Attachment:
Blur.png [ 38.17 KiB | Viewed 396 times ]


Code:
import pygame
from PIL import Image, ImageFilter

#convert a pillow image to a pygame surface
def pilImageToSurface(pilImage):
    return pygame.image.fromstring(
        pilImage.tobytes(), pilImage.size, pilImage.mode).convert()

#remove the black background from an image
def removeBackground(image):
    pixeldata = list(image.getdata())

    for i,pixel in enumerate(pixeldata):
        if pixel[:3] == (0,0,0):
            pixeldata[i] = (0,0,0,0)

    noBackgroundImage = image
    noBackgroundImage.putdata(pixeldata)
    return noBackgroundImage

#define method to blur the contents of a surface image
def addBlur(numberOfLoops):

    if numberOfLoops==0:
        return

    #create a copy of the surface graphics so that we can remove the black background so that we can overlay it back on top of the blurred image
    imageNoBlur = pygame.image.tostring(screen, 'RGBA')
    pilImageNoBlur = Image.frombytes("RGBA", (width, height), imageNoBlur)
    pilImageNoBlurNoBackground = removeBackground(pilImageNoBlur)
    noBackgroundNoBlurSurface = pygame.image.fromstring(pilImageNoBlurNoBackground.tobytes('raw', 'RGBA'), (width, height), 'RGBA')

    #apply blur to the original image. The original image will be overlaid on top of the blurred image
    for x in range(numberOfLoops):
        #get the current surface so we can apply blur to it. Subsequent iterations will increase the blur effect
        imageToBlur = pygame.image.tostring(screen, 'RGBA')
        pil_blurred = Image.frombytes("RGBA", (width, height), imageToBlur).filter(ImageFilter.GaussianBlur(radius=(numberOfBlurLoops-((x+10)-1))))
        blurredSurface = pygame.image.fromstring(pil_blurred.tobytes('raw', 'RGBA'), (width, height), 'RGBA')
        #first blit the blurred surface
        screen.blit(blurredSurface, (0, 0))
        #now blit the noBackgroundNoBlurSurface surface back for clarity
        #consider applying a little transparency to this in future
        screen.blit(noBackgroundNoBlurSurface, (0, 0))

#define driver variables
background_colour = (0,0,0)
width, height = (640, 200)
borderOffset = 20
lineWidth = 5

# light shade of the button
color_light = (255,255,0)

#setup the display and initialise fonts
screen = pygame.display.set_mode((width, height))
pygame.font.init()

#define number of blur loops. more loops=more blur, 0=no blur
numberOfBlurLoops = 6

# defining a font
fontSize = 100
smallfont = pygame.font.SysFont('Rockwell Extra Bold',fontSize)

# rendering a text written in
# this font
text = smallfont.render('Test' , True , color_light)

running = True
while running:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            running = False

    #draw the screen graphics
    screen.fill(background_colour)
    pygame.draw.rect(screen, color_light, (borderOffset, borderOffset, width-(2*borderOffset), lineWidth), 0)
    pygame.draw.rect(screen, color_light, (borderOffset, height-(borderOffset)-lineWidth, width-(2*borderOffset), lineWidth), 0)
    pygame.draw.rect(screen, color_light, (borderOffset, borderOffset, lineWidth, height-(2*borderOffset)), 0)
    pygame.draw.rect(screen, color_light, (width-(borderOffset+lineWidth),borderOffset,lineWidth, height-(2*borderOffset)), 0)
    screen.blit(text, ((width/2)-(text.get_width()/2),(height/2)-(text.get_height()/2)))

    #add blur effect to screen graphics
    addBlur(numberOfBlurLoops)

    pygame.display.flip()

pygame.quit()


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Fri Apr 02, 2021 11:17 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
martinr1000 wrote:
Hi, don't know if this helps or not but i had a go at putting a blur method into the mix so it emulates the screen blur in the movie. Not sure what's going on with the text but if it helps i'll keep looking.

it's controlled by the numberOfBlurLoops argument passed to the method addBlur(). 0 loops = no blur and then the more loops you have the more blur. I apply blur to the base image that has been rendered in the game loop. once the blur has happened i overlay the original rendered image back on top for clarity although i'm thinking this may be too harsh and could be tweaked.

anyway if this is no use to you no problem but it was fun anyway.

Attachment:


Code:
import pygame
from PIL import Image, ImageFilter

#convert a pillow image to a pygame surface
def pilImageToSurface(pilImage):
    return pygame.image.fromstring(
        pilImage.tobytes(), pilImage.size, pilImage.mode).convert()

#remove the black background from an image
def removeBackground(image):
    pixeldata = list(image.getdata())

    for i,pixel in enumerate(pixeldata):
        if pixel[:3] == (0,0,0):
            pixeldata[i] = (0,0,0,0)

    noBackgroundImage = image
    noBackgroundImage.putdata(pixeldata)
    return noBackgroundImage

#define method to blur the contents of a surface image
def addBlur(numberOfLoops):

    if numberOfLoops==0:
        return

    #create a copy of the surface graphics so that we can remove the black background so that we can overlay it back on top of the blurred image
    imageNoBlur = pygame.image.tostring(screen, 'RGBA')
    pilImageNoBlur = Image.frombytes("RGBA", (width, height), imageNoBlur)
    pilImageNoBlurNoBackground = removeBackground(pilImageNoBlur)
    noBackgroundNoBlurSurface = pygame.image.fromstring(pilImageNoBlurNoBackground.tobytes('raw', 'RGBA'), (width, height), 'RGBA')

    #apply blur to the original image. The original image will be overlaid on top of the blurred image
    for x in range(numberOfLoops):
        #get the current surface so we can apply blur to it. Subsequent iterations will increase the blur effect
        imageToBlur = pygame.image.tostring(screen, 'RGBA')
        pil_blurred = Image.frombytes("RGBA", (width, height), imageToBlur).filter(ImageFilter.GaussianBlur(radius=(numberOfBlurLoops-((x+10)-1))))
        blurredSurface = pygame.image.fromstring(pil_blurred.tobytes('raw', 'RGBA'), (width, height), 'RGBA')
        #first blit the blurred surface
        screen.blit(blurredSurface, (0, 0))
        #now blit the noBackgroundNoBlurSurface surface back for clarity
        #consider applying a little transparency to this in future
        screen.blit(noBackgroundNoBlurSurface, (0, 0))

#define driver variables
background_colour = (0,0,0)
width, height = (640, 200)
borderOffset = 20
lineWidth = 5

# light shade of the button
color_light = (255,255,0)

#setup the display and initialise fonts
screen = pygame.display.set_mode((width, height))
pygame.font.init()

#define number of blur loops. more loops=more blur, 0=no blur
numberOfBlurLoops = 6

# defining a font
fontSize = 100
smallfont = pygame.font.SysFont('Rockwell Extra Bold',fontSize)

# rendering a text written in
# this font
text = smallfont.render('Test' , True , color_light)

running = True
while running:
    for event in pygame.event.get():
        if event.type == pygame.QUIT:
            running = False

    #draw the screen graphics
    screen.fill(background_colour)
    pygame.draw.rect(screen, color_light, (borderOffset, borderOffset, width-(2*borderOffset), lineWidth), 0)
    pygame.draw.rect(screen, color_light, (borderOffset, height-(borderOffset)-lineWidth, width-(2*borderOffset), lineWidth), 0)
    pygame.draw.rect(screen, color_light, (borderOffset, borderOffset, lineWidth, height-(2*borderOffset)), 0)
    pygame.draw.rect(screen, color_light, (width-(borderOffset+lineWidth),borderOffset,lineWidth, height-(2*borderOffset)), 0)
    screen.blit(text, ((width/2)-(text.get_width()/2),(height/2)-(text.get_height()/2)))

    #add blur effect to screen graphics
    addBlur(numberOfBlurLoops)

    pygame.display.flip()

pygame.quit()


Every piece helps so thanks!

When I left off I determined that the default button sizes were going to force a deviation on the 200 horizontal line minimum. At this point I am just trying to get the menus rebuilt. The quandary I was in was that if I made all the button fit on the screen, things would not resize which would cause another issue so I am having to figure that piece out. I am trying to make this universal as far as screen sizes go.

I also determined that if we go back to the roots, we need to really do a batch shell script or in this case bash, sh, korn shell, what have you. That it was written in basic c## effectively it should be possible to convert the raw code to python if one can decompile or access the actual source code. That path would be rather lengthy.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Apr 04, 2021 4:24 am

Service Number: A05/TQ2.0.32141E1
Country: United States
I am running into some brick walls to try and get the menu to look correctly. pygame-menu I am having issues trying to figure out how to use the proper syntax for columns. if I use .pack I am limited to three columns. pygame-menu natively supports arrow key functionality.

Ideally I want it to be resizeable. That limits things slightly. I can stacically program the button field sizes but that prevents resizing.

Now if I deviate slightly I can allow for resizing so it will fit any screen. The goal is to try and get a code piece that is cross platform with minimal effort AND will stand the test of time. Everything I have read indicates that python will be around for decades to come as it is the power house between many, many things.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Sun Apr 04, 2021 5:13 am

Service Number: A05/TQ2.0.32141E1
Country: United States
top is current draft and bottom is the flash program.

Attachment:
draft.png [ 36.26 KiB | Viewed 336 times ]


I had to deviate on height by 100 pixels additional. This is a resizable setup. The idea here is that this can run to any size screen and still look somewhat screen accurate.

Now I like to call these sort of things elephant projects and you eat an elephant one byte at a time. Saying that means you focus on each individual problem and forget the other issues. Get one thing hashed and move on to the next.

Code:
# Import module
from tkinter import *
import tkinter
from PIL import Image, ImageTk

# Create object
root = tkinter.Tk()

# Adjust size
root.geometry("640x300")
root.configure(bg='black')

# Specify Grid
# options for grid:
# MINSIZE, PAD, UNIFORM, WEIGHT

Grid.rowconfigure(root,0,weight=1, uniform='a')
Grid.rowconfigure(root,1,weight=1, uniform='a')
Grid.rowconfigure(root,2,weight=1, uniform='a')
Grid.rowconfigure(root,3,weight=1, uniform='a')
Grid.rowconfigure(root,4,weight=1, uniform='a')
Grid.rowconfigure(root,5,weight=1, uniform='a')
Grid.rowconfigure(root,6,weight=1, uniform='a')
Grid.rowconfigure(root,7,weight=1, uniform='a')
Grid.rowconfigure(root,8,weight=1, uniform='a')
Grid.rowconfigure(root,9,weight=1, uniform='a')
Grid.columnconfigure(root,0,weight=1, uniform='a')
Grid.columnconfigure(root,1,weight=1, uniform='a')
Grid.columnconfigure(root,2,weight=1, uniform='a')
Grid.columnconfigure(root,3,weight=1, uniform='a')
#Grid.columnconfigure(root,4,weight=1, uniform='a')
#Grid.rowconfigure(root,0,row=0,weight=0)


# notes on different widget options other notes sections will be added for late rreference needs and
# desired customizations.
# w = Canvas (master, option-value
# bd, bg, cursor, highlight color, width, height
# w = CheckButton(master, option=value)
# Title, activebackground, activeforeground, bg, command, font, image
# w=Entry(master, option=value)
# bd, bg, cursor, command, highlightcolor, width, height
# w=Label(master, option=value)
# bg, bd, command, font, image, width, height
# w = Listbox(master, option=value)
# hightlightcolor, bg, bd, font, image, width, height
# w = MenuButton(master, option=value)
# activebackground, activeforeground, bg, bd, cursor, image, width, height, highlightcolor
# w = Scrollbar(master, option=value)
# width, activebackground, bg, bd, cursor
# w = Text(master, option=value)
# highlightcolor, insertbackground, bg, font, image, width, height
# w = tk.menu button(parent, option, ...)
# activebackground, activeforeground, anchor, background or bg, cursor, compound, direction, disabledforeground, fg, font, height, highlightbackground, highlightcolor, highlightthickness, image, justify, menu, padx, pady, relief, state, takefocus, text, textvariable, underline, width, wraplength
#
#
#

#image files
#photo = PhotoImage(file = r"c:\Menu_title.png") # old sentry gun menu title

# Specify Framesw = Frame(master, option=value)
# bg, bd, cursor, height, highlightbackground, highlightcolor, highlightthickness, relief, width


# Create Buttons
# master, option=value, ...
# activebackground, activeforeground, bd, bg, command, fg, font, height, highlightcolor, image, justify, padx, pady, relief, state, underline, width, wraplength
button_1 = Button(root,justify=CENTER,text="AUTO-REMOTE")
button_2 = Button(root,justify=CENTER,text="HARD")
button_3 = Button(root,justify=CENTER,text="SEMIHARD")
button_4 = Button(root,justify=CENTER,text="SOFT")
sbutton_1 = Button(root,justify=CENTER,text="BIO")
sbutton_2 = Button(root,justify=CENTER,text="INERT")
tsbutton_1 = Button(root,justify=CENTER,text="MULTI SPEC")
tsbutton_2 = Button(root,justify=CENTER,text="INFRA RED")
tsbutton_3 = Button(root,justify=CENTER,text="UV")
wsbutton_1 = Button(root,justify=CENTER,text="SAFE")
wsbutton_2 = Button(root,justify=CENTER,text="ARMED")
isbutton_1 = Button(root,justify=CENTER,text="SEARCH")
isbutton_2 = Button(root,justify=CENTER,text="TEST")
isbutton_3 = Button(root,justify=CENTER,text="ENGAGED")
isbutton_4 = Button(root,justify=CENTER,text="INTERROGATE")
trbutton_1 = Button(root,justify=CENTER,text="AUTO")
trbutton_2 = Button(root,justify=CENTER,text="SELECTIVE")
smman = Button(root,justify=CENTER,text="MAN-OVERRIDE")
smauto = Button(root,justify=CENTER,text="SEMI-AUTO")
gun_1 = Button(root,borderwidth=7,bg='black',relief=RIDGE,disabledforeground='yellow',state=DISABLED,text="kp")
gun_2 = Button(root,borderwidth=7,bg='black',fg='yellow',disabledforeground='yellow',state=DISABLED,text="kp")
#header = Button(root, image = photo, compound = TOP) # image reference
headernew = Button(root, bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER, text="UA 571-C \n REMOTE SENTRY WEAPON SYSTEM")
syst = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="SYSTEM \n   MODE")
weap = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="WEAPON \n   STATUS")
iff = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="IFF \n   STATUS")
test = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="TEST \n   ROUTINE")
target = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="TARGET PROFILE")
spectral = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="SPECTRAL PROFILE")
ts = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="TARGET SELECT")
# bg='black', fg='yellow', highlightbackground='yellow',

# Set grid
# widget.grid(grid_options)
# column, columnspan, ipadx, ipady, padx, pady, row, rowspan, sticky
gun_1.grid(row=0,column=0,ipadx=2,ipady=2,padx=2,pady=2,sticky=W)
gun_2.grid(row=0,column=3,ipadx=2,ipady=2,padx=2,pady=2,sticky=E)
headernew.grid(row=0,column=1,columnspan=2,sticky="NSEW")
button_1.grid(row=2,column=0,sticky="NSEW")
button_2.grid(row=9,column=0,sticky="NSEW")
button_3.grid(row=8,column=0,sticky="NSEW")
button_4.grid(row=7,column=0,sticky="NSEW")
sbutton_1.grid(row=7,column=1,sticky="NSEW")
sbutton_2.grid(row=8,column=1,sticky="NSEW")
tsbutton_1.grid(row=7,column=2,columnspan=2,sticky="NSEW")
tsbutton_2.grid(row=8,column=2,columnspan=2,sticky="NSEW")
tsbutton_3.grid(row=9,column=2,columnspan=2,sticky="NSEW")
wsbutton_1.grid(row=2,column=1,sticky="NSEW")
wsbutton_2.grid(row=3,column=1,sticky="NSEW")
isbutton_1.grid(row=2,column=2,sticky="NSEW")
isbutton_2.grid(row=3,column=2,sticky="NSEW")
isbutton_3.grid(row=4,column=2,sticky="NSEW")
isbutton_4.grid(row=5,column=2,sticky="NSEW")
trbutton_1.grid(row=2,column=3,sticky="NSEW")
trbutton_2.grid(row=3,column=3,sticky="NSEW")
smman.grid(row=3,column=0,sticky="NSEW")
smauto.grid(row=4,column=0,sticky="NSEW")


syst.grid(row=1,column=0,sticky="NSEW")
weap.grid(row=1,column=1,sticky="NSEW")
iff.grid(row=1,column=2,sticky="NSEW")
test.grid(row=1,column=3,sticky="NSEW")
target.grid(row=6,column=0,sticky="NSEW")
spectral.grid(row=6,column=1,sticky="NSEW")
ts.grid(row=6,column=2,columnspan=2,sticky="NSEW")

# Execute tkinter
root.mainloop()

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Apr 04, 2021 7:20 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
I still have to work on button logic but this is as close as I can get on a resizable menu.

The fire menu is also going to be fun to layout and add logic to.

Will have to figure out how to get the gun selection triggering to work as well and I may have to deviate there on the form due to the way that python and windows treats keyboard input and sockets. Once I get it working on Windows I will hopefully have a test bed setup working to easily test on the raspberry pi and Linux.

Code:
# Import module
from tkinter import *
import tkinter
from PIL import Image, ImageTk

import keyboard
import pynput
import pygame

pygame.init()
keys = pygame.key.get_pressed()

# Create object
root = tkinter.Tk()

# Adjust size
root.geometry("640x300")
root.configure(bg='black')

# Specify Grid
# options for grid:
# MINSIZE, PAD, UNIFORM, WEIGHT

Grid.rowconfigure(root,0,weight=1, uniform='a')
Grid.rowconfigure(root,1,weight=1, uniform='b')
Grid.rowconfigure(root,2,weight=1, uniform='b')
Grid.rowconfigure(root,3,weight=1, uniform='b')
Grid.rowconfigure(root,4,weight=1, uniform='b')
Grid.rowconfigure(root,5,weight=1, uniform='b')
Grid.rowconfigure(root,6,weight=1, uniform='b')
Grid.rowconfigure(root,7,weight=1, uniform='b')
Grid.rowconfigure(root,8,weight=1, uniform='b')
Grid.rowconfigure(root,9,weight=1, uniform='b')
Grid.columnconfigure(root,0,weight=1, uniform='d')
Grid.columnconfigure(root,1,weight=1, uniform='d')
Grid.columnconfigure(root,2,weight=1, uniform='d')
Grid.columnconfigure(root,3,weight=1, uniform='d')
Grid.columnconfigure(root,4,weight=1, uniform='d')
Grid.columnconfigure(root,5,weight=1, uniform='d')
Grid.columnconfigure(root,6,weight=1, uniform='d')
Grid.columnconfigure(root,7,weight=1, uniform='d')
#Grid.columnconfigure(root,4,weight=1, uniform='a')
#Grid.rowconfigure(root,0,row=0,weight=0)


# notes on different widget options other notes sections will be added for late rreference needs and
# desired customizations.
# w = Canvas (master, option-value
# bd, bg, cursor, highlight color, width, height
# w = CheckButton(master, option=value)
# Title, activebackground, activeforeground, bg, command, font, image
# w=Entry(master, option=value)
# bd, bg, cursor, command, highlightcolor, width, height
# w=Label(master, option=value)
# bg, bd, command, font, image, width, height
# w = Listbox(master, option=value)
# hightlightcolor, bg, bd, font, image, width, height
# w = MenuButton(master, option=value)
# activebackground, activeforeground, bg, bd, cursor, image, width, height, highlightcolor
# w = Scrollbar(master, option=value)
# width, activebackground, bg, bd, cursor
# w = Text(master, option=value)
# highlightcolor, insertbackground, bg, font, image, width, height
# w = tk.menu button(parent, option, ...)
# activebackground, activeforeground, anchor, background or bg, cursor, compound, direction, disabledforeground, fg, font, height, highlightbackground, highlightcolor, highlightthickness, image, justify, menu, padx, pady, relief, state, takefocus, text, textvariable, underline, width, wraplength
#
#
#

#image files
#photo = PhotoImage(file = r"c:\Menu_title.png") # old sentry gun menu title

# Specify Framesw = Frame(master, option=value)
# bg, bd, cursor, height, highlightbackground, highlightcolor, highlightthickness, relief, width


# Create Buttons
# master, option=value, ...
# activebackground, activeforeground, bd, bg, command, fg, font, height, highlightcolor, image, justify, padx, pady, relief, state, underline, width, wraplength
button_1 = Button(root,justify=CENTER,text="AUTO-REMOTE",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
button_2 = Button(root,justify=CENTER,text="HARD",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
button_3 = Button(root,justify=CENTER,text="SEMIHARD",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
button_4 = Button(root,justify=CENTER,text="SOFT",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
sbutton_1 = Button(root,justify=CENTER,text="BIO",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
sbutton_2 = Button(root,justify=CENTER,text="INERT",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
tsbutton_1 = Button(root,justify=CENTER,text="MULTI SPEC",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
tsbutton_2 = Button(root,justify=CENTER,text="INFRA RED",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
tsbutton_3 = Button(root,justify=CENTER,text="UV",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
wsbutton_1 = Button(root,justify=CENTER,text="SAFE",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
wsbutton_2 = Button(root,justify=CENTER,text="ARMED",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
isbutton_1 = Button(root,justify=CENTER,text="SEARCH",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
isbutton_2 = Button(root,justify=CENTER,text="TEST",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
isbutton_3 = Button(root,justify=CENTER,text="ENGAGED",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
isbutton_4 = Button(root,justify=CENTER,text="INTERROGATE",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
trbutton_1 = Button(root,justify=CENTER,text="AUTO",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
trbutton_2 = Button(root,justify=CENTER,text="SELECTIVE",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
smman = Button(root,justify=CENTER,text="MAN-OVERRIDE",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
smauto = Button(root,justify=CENTER,text="SEMI-AUTO",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
gun_1 = Button(root,borderwidth=7,bg='black',relief=RIDGE,disabledforeground='yellow',state=DISABLED,text="kp")
gun_2 = Button(root,borderwidth=7,bg='black',fg='yellow',disabledforeground='yellow',state=DISABLED,text="kp")
#header = Button(root, image = photo, compound = TOP) # image reference
headernew = Button(root, bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER, text="UA 571-C \n REMOTE SENTRY WEAPON SYSTEM")
syst = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="SYSTEM \n   MODE")
weap = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="WEAPON \n   STATUS")
iff = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="IFF \n   STATUS")
test = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="TEST \n   ROUTINE")
target = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="TARGET PROFILE")
spectral = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="SPECTRAL PROFILE")
ts = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="TARGET SELECT")
# bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black'

# Set grid
# widget.grid(grid_options)
# column, columnspan, ipadx, ipady, padx, pady, row, rowspan, sticky
gun_1.grid(row=0,column=0,ipadx=2,ipady=2,padx=2,pady=2,sticky=W)
gun_2.grid(row=0,column=7,ipadx=2,ipady=2,padx=2,pady=2,sticky=E)
headernew.grid(row=0,column=1,columnspan=6,sticky="NSEW")
button_1.grid(row=2,column=0,columnspan=2,sticky="NSEW")
button_2.grid(row=9,column=0,columnspan=3,sticky="NSEW")
button_3.grid(row=8,column=0,columnspan=3,sticky="NSEW")
button_4.grid(row=7,column=0,columnspan=3,sticky="NSEW")
sbutton_1.grid(row=7,column=3,columnspan=2,sticky="NSEW")
sbutton_2.grid(row=8,column=3,columnspan=2,sticky="NSEW")
tsbutton_1.grid(row=7,column=5,columnspan=3,sticky="NSEW")
tsbutton_2.grid(row=8,column=5,columnspan=3,sticky="NSEW")
tsbutton_3.grid(row=9,column=5,columnspan=3,sticky="NSEW")
wsbutton_1.grid(row=2,column=2,columnspan=2,sticky="NSEW")
wsbutton_2.grid(row=3,column=2,columnspan=2,sticky="NSEW")
isbutton_1.grid(row=2,column=4,columnspan=2,sticky="NSEW")
isbutton_2.grid(row=3,column=4,columnspan=2,sticky="NSEW")
isbutton_3.grid(row=4,column=4,columnspan=2,sticky="NSEW")
isbutton_4.grid(row=5,column=4,columnspan=2,sticky="NSEW")
trbutton_1.grid(row=2,column=6,columnspan=2,sticky="NSEW")
trbutton_2.grid(row=3,column=6,columnspan=2,sticky="NSEW")
smman.grid(row=3,column=0,columnspan=2,sticky="NSEW")
smauto.grid(row=4,column=0,columnspan=2,sticky="NSEW")


syst.grid(row=1,column=0,columnspan=2,sticky="NSEW")
weap.grid(row=1,column=2,columnspan=2,sticky="NSEW")
iff.grid(row=1,column=4,columnspan=2,sticky="NSEW")
test.grid(row=1,column=6,columnspan=2,sticky="NSEW")
target.grid(row=6,column=0,columnspan=3,sticky="NSEW")
spectral.grid(row=6,column=3,columnspan=2,sticky="NSEW")
ts.grid(row=6,column=5,columnspan=3,sticky="NSEW")

while True:
# Execute tkinter
  root.mainloop()
  for event in pygame.event.get():
    if event.type == pygame.KEYDOWN:
      if event.key == pygame.K_q:
        pygame.quit()
        sys.exit(0)
        quit()
        break
  if keys[pygame.K_w]:
    break

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Apr 04, 2021 7:22 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
I will also add that I am still working out the quit mechanism for windows. As it stand above code will have to be closed and then a ctrl+c used in the command window to kill it. killing via task manager is will also work.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Sun Apr 04, 2021 7:39 pm

Location: Derby
Country: United Kingdom
this should do it. Escape key quit

Code:
running = True
while running:

    #process pygame events
    for event in pygame.event.get(): # User did something
        if event.type == pygame.QUIT: # If user clicked close
            running = False # Flag that we are done so we exit this loop
            pass
        if event.type == pygame.KEYDOWN:
            if event.key==pygame.K_ESCAPE:
                running = False


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Sun Apr 04, 2021 7:52 pm

Location: Derby
Country: United Kingdom
then pygame.quit() outside of the while loop


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Sun Apr 04, 2021 10:38 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
martinr1000 wrote:
then pygame.quit() outside of the while loop


That does not work properly under windows 10. Something about sockets and interrupts. Stuff put in to block malicious software from finding ways to take over and compromise the system. That should work fine under Linux and MacOS though. I just have to add code that windows will play nice with as the goal here is easier usage as we do not want to make things difficult.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Sun Apr 04, 2021 10:51 pm

Service Number: A05/TQ2.0.32141E1
Country: United States
I got the formatting set on the fire screen I think. I just have to add logic.

The font deal is something I will address later by building a custom font to match what the flash utility made manually. I was thinking of calling it alienslegacy font. as an fyi there are 100k plus unique fonts out there in the world wide web of things. Before designing a font I want to see if there is anything remotely close at this point.

Complex pieces like this are best being done separately and then slowly integrated. I had to fight on a copy and paste error on this. I forgot to copy a ) and it broke the whole kitten caboodle.

keyboard input and mouse click logic is going to be a bit fun.

Code:
# Import module
from tkinter import *
import tkinter
#from PIL import Image, ImageTk
import pygame
pygame.init()

#rounds = ammocounter()
#secsremain = seconds()

# Create object
root = tkinter.Tk()

# Adjust size
root.geometry("640x300")
root.configure(bg='black')

Grid.rowconfigure(root,0,weight=1, uniform='c')
Grid.rowconfigure(root,1,weight=1, uniform='b')
Grid.rowconfigure(root,2,weight=1, uniform='b')
Grid.rowconfigure(root,3,weight=1, uniform='b')
Grid.rowconfigure(root,4,weight=1, uniform='b')
Grid.rowconfigure(root,5,weight=1, uniform='b')
Grid.rowconfigure(root,6,weight=1, uniform='b')
Grid.rowconfigure(root,7,weight=1, uniform='b')
Grid.rowconfigure(root,8,weight=1, uniform='b')
#Grid.rowconfigure(root,9,weight=1, uniform='b')
Grid.columnconfigure(root,0,weight=1, uniform='a')
Grid.columnconfigure(root,1,weight=1, uniform='a')
Grid.columnconfigure(root,2,weight=1, uniform='a')
Grid.columnconfigure(root,3,weight=1, uniform='a')
Grid.columnconfigure(root,4,weight=1, uniform='a')
Grid.columnconfigure(root,5,weight=1, uniform='a')
#Grid.columnconfigure(root,6,weight=1, uniform='a')
#Grid.columnconfigure(root,7,weight=1, uniform='a')

gun_1 = Button(root, borderwidth=7,bg='black',fg='yellow',disabledforeground='yellow',state=DISABLED,text="kp")
gun_2 = Button(root, borderwidth=7,bg='black',fg='yellow',disabledforeground='yellow',state=DISABLED,text="kp")
headernew = Button(root, bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER, text="UA 571-C \n REMOTE SENTRY WEAPON SYSTEM")
rm = Button(root,justify=CENTER,text="R(M)",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
temp = Button(root,justify=CENTER,text="Temp",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
rmbar = Button(root,justify=CENTER,text="R",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
tempbar = Button(root,justify=CENTER,text="T",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
timer = Button(root,justify=CENTER,text="secsremain",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
rounds = Button(root,justify=CENTER,text="rounds",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
crit = Button(root,justify=CENTER,text="CRITICAL",bg='black', fg='yellow', highlightbackground='yellow', highlightcolor='black',activebackground='yellow')
roundsr = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="Rounds \n Remaining")
timestat = Button(root,bg='black',state=DISABLED, fg='yellow',disabledforeground='yellow',highlightbackground='yellow',borderwidth=2,justify=CENTER,text="TIME AT 100% \n (secs)")

gun_1.grid(row=0,column=0,columnspan=2,rowspan=2,sticky=NW)
gun_2.grid(row=0,column=5,columnspan=2,rowspan=2,sticky=NE)
headernew.grid(row=0,column=1,columnspan=4,rowspan=2,sticky="NSEW")
tempbar.grid(row=3,column=4,rowspan=6,sticky="NSEW")
rmbar.grid(row=3,column=5,rowspan=6,sticky="NSEW")
rm.grid(row=2,column=5,sticky="NSEW")
temp.grid(row=2,column=4,sticky="NSEW")
timer.grid(row=7,column=2,columnspan=2,sticky="NS")
rounds.grid(row=3,column=2,columnspan=2,sticky="NS")
timestat.grid(row=7,column=0,columnspan=2,sticky="NSEW")
crit.grid(row=5,column=0,columnspan=2,sticky="NSEW")
roundsr.grid(row=3,column=0,columnspan=2,sticky="NS")
# Execute tkinter

running = True
while running:

  root.mainloop()
  for event in pygame.event.get(): # User did something
    if event.type == pygame.QUIT: # If user clicked close
      running = False # Flag that we are done so we exit this loop
      pass
    if event.type == pygame.KEYDOWN:
      if event.key==pygame.K_q:
        running = False
        pygame.quit()

firescreenwip.png [ 23.2 KiB | Viewed 291 times ]


_________________
The impossible takes a while longer and goes over budget too...
Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Sun Apr 04, 2021 11:19 pm

Location: Derby
Country: United Kingdom
knoxvilles_joker wrote:
martinr1000 wrote:
then pygame.quit() outside of the while loop


That does not work properly under windows 10. Something about sockets and interrupts. Stuff put in to block malicious software from finding ways to take over and compromise the system. That should work fine under Linux and MacOS though. I just have to add code that windows will play nice with as the goal here is easier usage as we do not want to make things difficult.


it's working on my windows 10 box bud. Not sure why it wouldn't on yours


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Mon Apr 05, 2021 12:14 am

Service Number: A05/TQ2.0.32141E1
Country: United States
martinr1000 wrote:
knoxvilles_joker wrote:
martinr1000 wrote:
then pygame.quit() outside of the while loop


That does not work properly under windows 10. Something about sockets and interrupts. Stuff put in to block malicious software from finding ways to take over and compromise the system. That should work fine under Linux and MacOS though. I just have to add code that windows will play nice with as the goal here is easier usage as we do not want to make things difficult.


it's working on my windows 10 box bud. Not sure why it wouldn't on yours


I added a quit button and that seemed to do the trick:
quit = Button(root, bg='black', fg='yellow', text='q', command=root.quit)
quit.grid(row=8,column=0,sticky="SW")

I can change foreground and background options to make it invisible.

On the other window I just activated the header and made it quit if clicked.

I suspect my issue is due to security with the script not running right. THis is not a bad problem in the development phase, it allows me to code for possible issues encountered.

I just have to write a couple of variants of this program, the mouse driven one will be more for smart devices and gui based OS, I will have to write a separate keyboard driven one for our alternate setups.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Apr 05, 2021 2:55 am

Service Number: A05/TQ2.0.32141E1
Country: United States
I am working on the ammo count down now. I am not getting much progress. I have found that I have to use a label and use a .get() call to get the current ammo count. I am suspecting though that some of my problems are computer related. the tkinter Label feature allows use of a textvariable flag that you can use to dynamically display counts.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Wed Apr 07, 2021 7:27 pm

Location: Derby
Country: United Kingdom
Hi, spent a bit of time trying to make up a font that is close to that of the sentry terminal. Think it needs some tweaking but here is the first test version. I'm not done yet as i need to do the lower case characters. I also need everyone's opinion regarding which version to stick with because I have a smooth version and a jagged version. See pics.

Attachment:
smooth.png [ 79.97 KiB | Viewed 218 times ]

smooth

Attachment:
notsmooth.png [ 80.63 KiB | Viewed 218 times ]

jagged


Top
 Profile
Reply with quote
 Post subject: Re: idea on flash replacement for sentry gun terminal progra
PostPosted: Wed Apr 07, 2021 7:32 pm

Location: Derby
Country: United Kingdom
Also i was reading that the max resolution of the gridcase could be 640x400 because of dual scan. Wondering if this is possible and whether or not it would make more sense in terms of the proportions of the terminal software that we see. 640x200 looks a bit thin to me but i am no expert in this area. (the pics above are based on 640x400)

cheers


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Apr 08, 2021 12:49 am

Service Number: A05/TQ2.0.32141E1
Country: United States
The key is to have the window so it is resizable so we can use the thing as a main attraction at our fan table with all of the hacked grid case setups we have out there now amongst our group.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 47 posts ]  Go to page 1, 2  Next



You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
