 Post subject: General shapes/measurement for Scratch Building Armour
PostPosted: Fri Apr 03, 2020 4:42 pm
THAT guy
User avatar
Online

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
After building a few sets of scratch-built armour from various materials, and especially after my latest video-documented aluminium build, people have asked where I get my patterns.

In short, I basically drew some out on regular copy paper, taped them together, cut them down and evolved them with each build. After my first metal build, I was able to compare them to a TE set and saw I was actually really close. I tweaked them a bit further after that (mostly just cutting some things smaller). I don't really have the ability to do 1:1 scans and make files of all this stuff, but maybe the below info could be helpful if you are trying to scratch build your own.

*I want to stress this is a STARTING POINT. I am not taking multiple measurements from multiple angles because because these are not undisputed gospel. They are not "Terry English's patterns". They are not necessarily a good size and shape for every body type. You WILL need to play around with the shapes.
For example, even just measuring from the neck down the centre to the belly area of a breastplate, a TE set is 15 inches. A fibreglass cast of the screen used Dietrich armour is only 13 inches. My own 'final' set ended up 15.5 inches and I find this my most comfortable set yet. I know my shoulder bells are overall a bit wider than a TE set and this is because I myself have fairly large shoulders. I am 6ft, 250lbs and this is what I decided was best for me after 5 builds of guess-and-test. So seriously, this is just a starting point to hopefully help people get going. All that said.... on to the shapes.

Attachment:
20200403_094223.jpg [ 643.13 KiB | Viewed 1005 times ]

Attachment:
20200403_095341.jpg [ 454.92 KiB | Viewed 1005 times ]

Attachment:
20200403_095347.jpg [ 696.52 KiB | Viewed 1005 times ]


A- Tailpad - 14.25 inches
B- Ab plate - 11 inches
C- cod piece - 4 inches
D- Shoulder Pauldron - 18 inches
E- Shoulder Bell - 13 inches
F- Shoulder Tab - 4.4 inches
G- Rt Shoulder buckle plate - 4.4 inches
*not pictured- Lft shoulder top plate - 3x4 inches (piece between breastplate and backplate, hidden by shoulder assembly)
H- Helmet bump plate - 10.75 inches (I like mine to butt right up against the camera. if you want a space it needs to be narrower)
I- Lower Lobster plate - 10.5 inches
J- Center lobster plate - 9.4 inches
K- Ear flap Top - 3 inches
L- Ear flap lower - 2.9 inches
M- knee pad - 7 inches
N- Shin guard - 13.5 inches (truly variable! How tall are you?)
O- Calf plate/guard - 11.5 inches (on center. left and right mirror each other for higher peak)

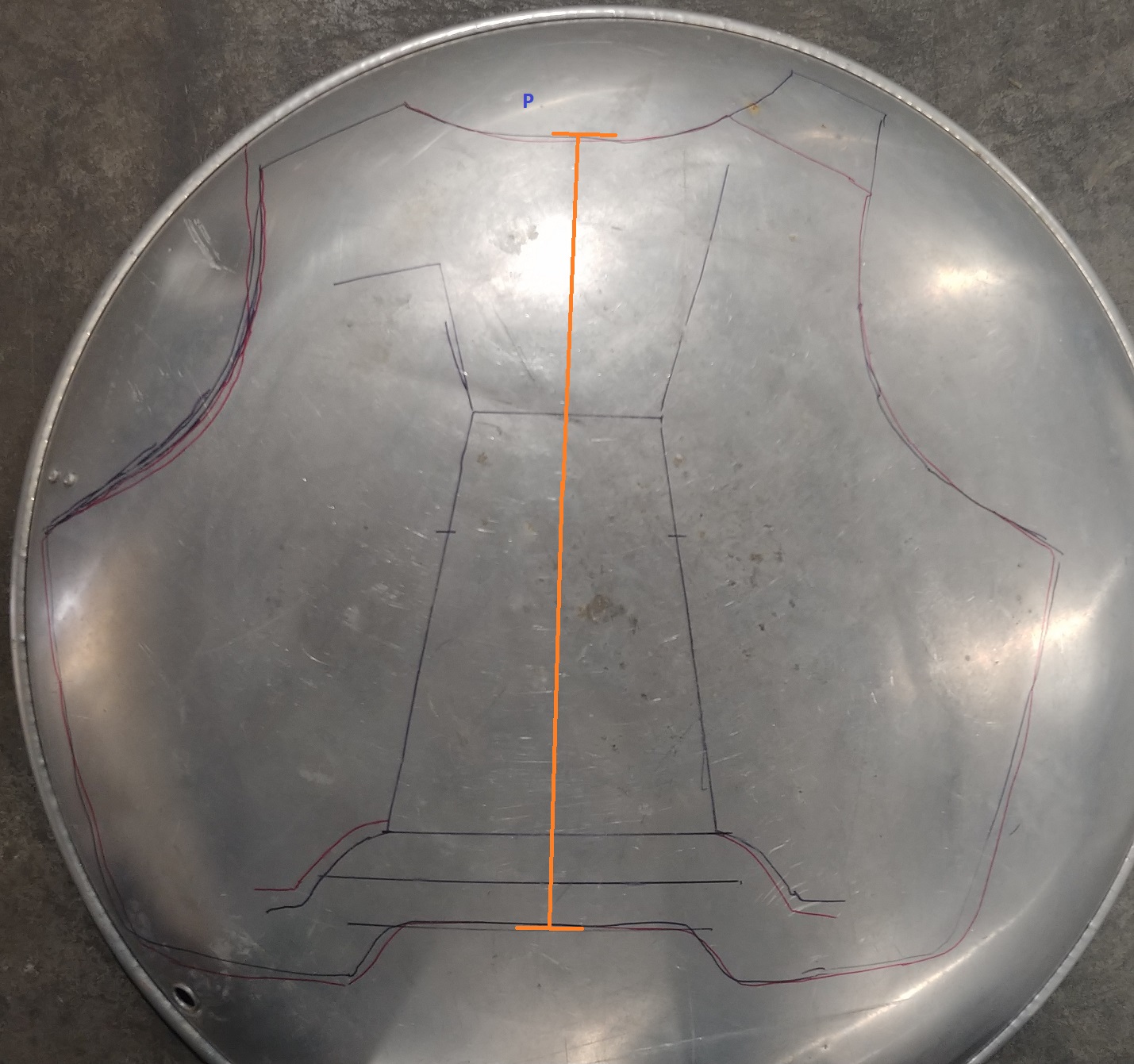

P- Breastplate - 15.5 inches
Q- Back plate - 24.5 inches (neck to tail a tad taller than breastplate measurement of same area)


Hopefully this is useful to my fellow scratch-builders with their "trashcan armor", Pepakura, and all other builds from all other types of materials.


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Fri Apr 03, 2020 6:53 pm
Enjoy the silence
User avatar

Location: Germany
That is more than one can ask for! Thanks for this!
By the way: I'd love to see your next video!

_________________
17 days? 17 days?


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Fri Apr 03, 2020 10:12 pm

Location: Derby
Country: United Kingdom

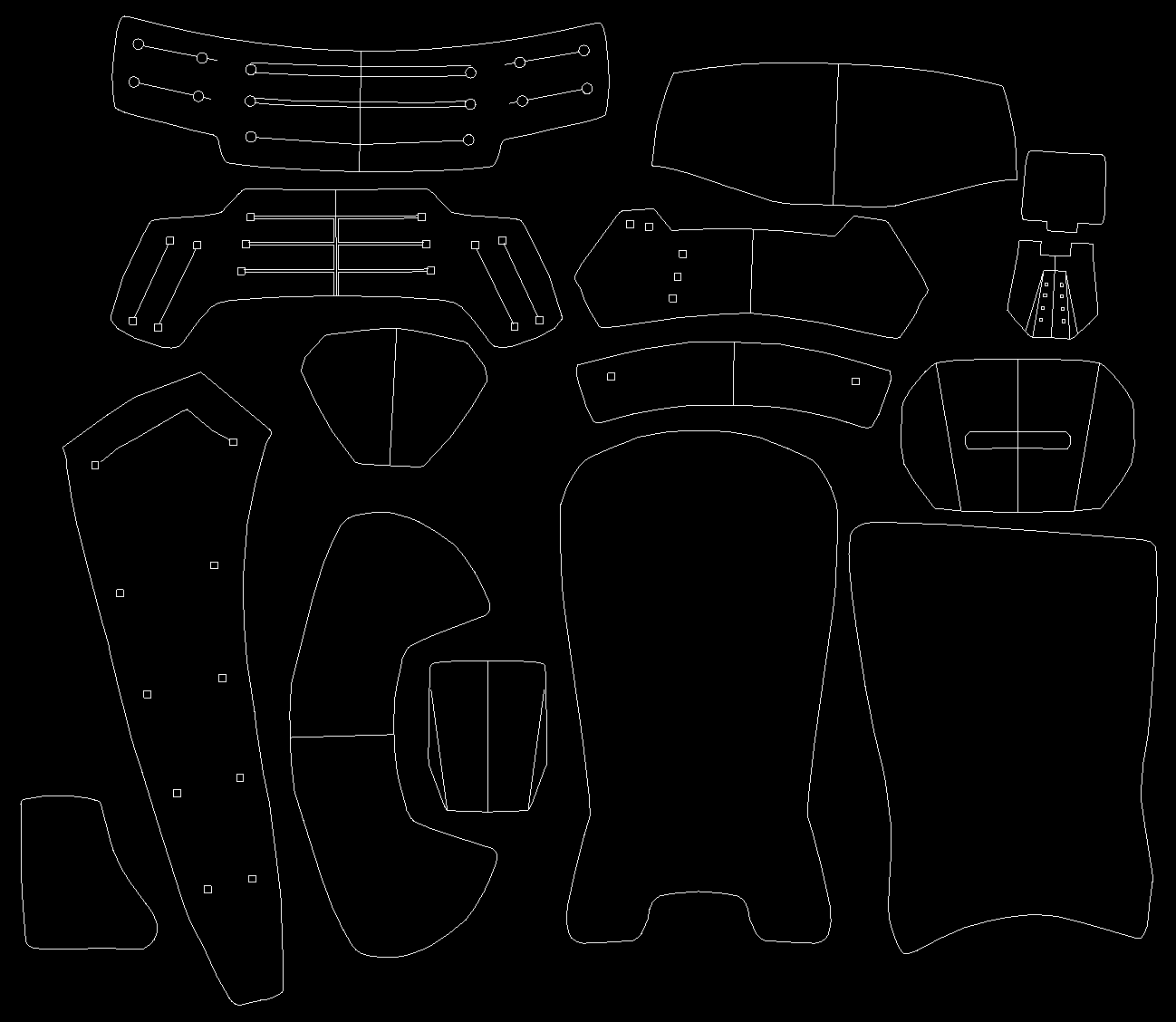

I thought I would trace this out in cad so that I could mirror symmetrical pieces and be easier to print. I'm scaling it to the proper sizes but I'd appreciate comment before I finalise it. cheers

Attachment:
trace overlay.png
trace overlay.png [ 993.8 KiB | Viewed 976 times ]


Attachment:
armour trace.png
armour trace.png [ 36.36 KiB | Viewed 976 times ]


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Sat Apr 04, 2020 12:05 am

Location: Derby
Country: United Kingdom
thinking I got the shin guard wrong (n). Is it supposed to be symmetrical?


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Sat Apr 04, 2020 1:34 am

Location: Derby
Country: United Kingdom
I've added the 1st sheet. Hopefully it can be hosted here.

Attachment:
ab pad and tail pad.pdf [21.59 KiB]
Downloaded 26 times


i'll do some more tomorrow but it's bed time.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Apr 04, 2020 2:44 am
User avatar

Country: United States
this is what everyones been wanting for years.


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Sat Apr 04, 2020 11:31 am

Location: Derby
Country: United Kingdom
Still need to tinker with the lobster plates so that'll come later. Not fully sure how to accurately map out the breast plates but I'll figure something out. Anyway here are the rest for now. Any feedback would be appreciated, especially from the main man bigbisont.

cheers

Attachment:
calf guard.pdf [18.08 KiB]
Downloaded 23 times

Attachment:
helmet bump plate.pdf [17.92 KiB]
Downloaded 21 times

Attachment:
knee guard.pdf [18.41 KiB]
Downloaded 25 times

Attachment:
left shoulder pauldren.pdf [20.73 KiB]
Downloaded 27 times

Attachment:
right shoulder pauldren.pdf [21.93 KiB]
Downloaded 21 times

Attachment:
shin guard symmetrical.pdf [17.97 KiB]
Downloaded 25 times

Attachment:
shoulder and ear parts.pdf [24.16 KiB]
Downloaded 22 times


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Apr 04, 2020 4:04 pm
Enjoy the silence
User avatar

Location: Germany
Excellent work! Thank you!

_________________
17 days? 17 days?


Last edited by Ice on Sat Apr 04, 2020 9:28 pm, edited 1 time in total.

Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Sat Apr 04, 2020 8:41 pm

Location: Derby
Country: United Kingdom
crotch plate and lobster plates

Attachment:
crotch plate and lobster plates.pdf [23.84 KiB]
Downloaded 20 times


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Sat Apr 04, 2020 8:45 pm

Location: Derby
Country: United Kingdom
one thing i'm not clear on, and if I had time I would re-watch BigBisonT's you tube videos. But i'm thinking you will need extra material around the edges of the templates for round overs.

anyway moving on to breast plates.


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Tue Apr 07, 2020 8:50 pm
THAT guy
User avatar
Online

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
martinr1000 wrote:
I thought I would trace this out in cad so that I could mirror symmetrical pieces and be easier to print. I'm scaling it to the proper sizes but I'd appreciate comment before I finalise it. cheers


That is nuts!!! Awesome job. The one thing I will say (too late?!) is somehow to me the ab and tail plates look a bit tall. I feel like in my head and on my pieces they are not as wide (top to bottom). Might have been a funny angle of the camera? Or maybe just seeing it in black and white feels different.

martinr1000 wrote:
thinking I got the shin guard wrong (n). Is it supposed to be symmetrical?

My goal was to start out symmetrical. Looks like you corrected it for the better. I can tell you they don't exactly stay symmetrical after hammering. Both my shin and calf guards needed some trimming up after hammering in order to fit up nicely. I think this is another good example of these being considered a 'starting point'.

martinr1000 wrote:
one thing i'm not clear on, and if I had time I would re-watch BigBisonT's you tube videos. But i'm thinking you will need extra material around the edges of the templates for round overs.

...


I am pretty certain the "hammer down" room is built into the shapes EXCEPT where parts need a true "rolled edge".

For example, outside edges that need to be hammered down on the shoulder bells and shoulder pouldrons to lock in the shape are more or less built into the template*. However you will need extra space on anything requiring a full 'rolled edge' for comfort. Prominent areas needing a full 'rolled edge' (and therefore 'extra' space beyond template) are INSIDE edge of the pouldrons against the neck, the arm pit areas, and neck areas. Hope that makes sense.


*you will get a sense if you like its size after you make your template and compare it to yourself.


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Tue Apr 07, 2020 10:16 pm

Location: Derby
Country: United Kingdom
bigbisont wrote:
That is nuts!!! Awesome job. The one thing I will say (too late?!) is somehow to me the ab and tail plates look a bit tall. I feel like in my head and on my pieces they are not as wide (top to bottom). Might have been a funny angle of the camera? Or maybe just seeing it in black and white feels different.


Hey bud, thanks for the reply. Well it's never too late to make changes. I've checked the drawing scale and it seems accurate to what I traced out. I've attached the same drawing with dimensions (metric mm sorry) and i'll have another look at the tracing.

I've had a rubbish time trying to trace the main chest pieces. I figured since it is traced on dome shaped surfaces I could model it in 3d and then unwrap it to a 2d image but unfortunately this seems impossible without buying expensive software. Might have to take a stab at it and see if members can help me refine it as we go along.

Attachment:
ab pad and tail pad.pdf [25.8 KiB]
Downloaded 19 times


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Thu Apr 30, 2020 1:20 am

Location: Derby
Country: United Kingdom
Hi all, I have, what I would term a best guess of the breastplate trace using BigbisonT's original photo. I had to make an assumption about the centre height of the sled (I went with 6 inches) so if this isn't too far off I think it should stack up. My process for doing this was as follows.
1) model an approximation of the sled in 3d
2) trace the lines from the photo into the 3d model
3) cut the traced out lines to create a mesh and then flatten it out to get the 2d pattern

so as you can tell if the sled model was about right then the pattern should be about right.

DISCLAIMER: what ever happens please don't cut any metal without first checking the pattern against yourself

I need to do the same process with the back plate so maybe I can upload that tomorrow

Attachment:
Breastplate-A.pdf [19.17 KiB]
Downloaded 24 times

Attachment:
Breastplate-B.pdf [19.31 KiB]
Downloaded 24 times

Attachment:
Breastplate-C.pdf [19.37 KiB]
Downloaded 17 times


Top
 Profile
Reply with quote
 Post subject: Re: General shapes/measurement for Scratch Building Armour
PostPosted: Thu Apr 30, 2020 7:21 pm

Location: Derby
Country: United Kingdom
and here's the back.

Attachment:
Backplate-A.pdf [19.18 KiB]
Downloaded 20 times

Attachment:
Backplate-B.pdf [19.15 KiB]
Downloaded 11 times

Attachment:
Backplate-C.pdf [19.31 KiB]
Downloaded 19 times
