Question about the M203 Handguard
http://forum.alienslegacy.com/viewtopic.php?f=3&t=18158		 Page 1 of 1
Author:  Drake555 [ Thu Apr 11, 2019 7:04 pm ]
Post subject:  Question about the M203 Handguard
Hi everyone,

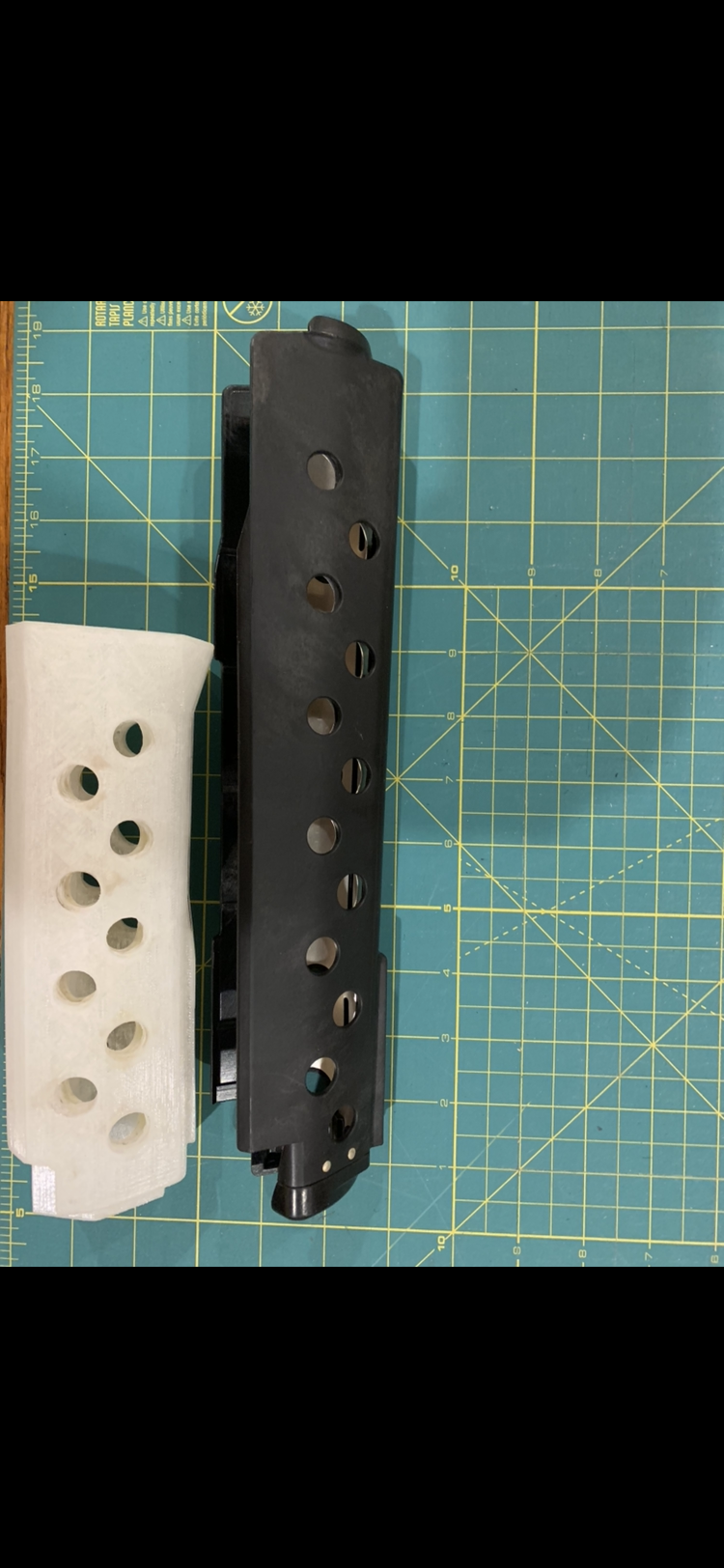

I recently purchased a real M203 Handguard. My plan was to adapt it to a 3D printed M240 Flamethrower. Now that I have it, side by side comparison shows the 3D printed piece is quit a bit shorter than the real M203 Handguard. Should I cut the real piece down to size? Would it be accurate if I didn’t cut it down? Would it be to long? What was the size of the screen used flamethrowers?
Thanks for any input or opinions.

Attachments:
1AD260E8-ED67-4176-AD00-57A437B5D4E3.png [ 1.96 MiB | Viewed 1422 times ]
Author:  Harry Harris [ Thu Apr 11, 2019 7:20 pm ]
Post subject:
There's some info on the Propstore website here.

Harry
Author:  martinr1000 [ Thu Apr 11, 2019 7:20 pm ]
Post subject:  Re: Question about the M203 Handguard
hi, I wouldn't cut that down. I think there is enough area in the highlighted section below to accommodate it and attach it to the substructure. I'd be willing to bet that that was how it was done originally

Attachment:
flamer.png [ 223.77 KiB | Viewed 1416 times ]
Author:  martinr1000 [ Thu Apr 11, 2019 7:22 pm ]
Post subject:  Re:
Harry Harris wrote:
There's some info on the Propstore website here.

Harry


£30000.....astonishing
Author:  Harry Harris [ Thu Apr 11, 2019 9:57 pm ]
Post subject:  Re: Question about the M203 Handguard
martinr1000 wrote:
hi, I wouldn't cut that down. I think there is enough area in the highlighted section below to accommodate it and attach it to the substructure. I'd be willing to bet that that was how it was done originally.

Looks that way. There are 12 holes on each side of the original handgurards, but only 9 visible on the flamethrower props.
Author:  Drake555 [ Thu Apr 11, 2019 11:00 pm ]
Post subject:
Cool! Thank you Harry!
I’ll adapt it without cutting it down.

WOW! $32,000!!
