200x200 png interlaced. composite image.
Would this work for your needs Ian/Vyper?
| Attachments: |
|
testboot.png [ 33.05 KiB | Viewed 7332 times ] |
| The Aliens Legacy http://forum.alienslegacy.com/ |
|
| Make your own functional motion tracker http://forum.alienslegacy.com/viewtopic.php?f=3&t=16829 |
Page 3 of 4 |
| Author: | knoxvilles_joker [ Thu Jun 01, 2017 8:00 pm ] |
| Post subject: | Re: |
Vypr wrote: Hmm, something seems ot have gone wrong with the website publishing. THis linkshowuld workL http://virtualfrontiers.co.uk/pi_files/pitracker.rar Something looked off on the website. http://www.virtualfrontiers.co.uk/index ... racker.rar Is the link on the site. I prefer to use word and notepad to do my edits as it allows for cleaner code. Automated utilities can cause issues like this from time to time. |
|
| Author: | knoxvilles_joker [ Thu Jun 01, 2017 9:02 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
This code tweak might work to get a boot logo for 10 seconds: #Load images # bootup image # 200x200 res image should work compass=pygame.image.load('boot.png') # this puts it to sleep for 10 seconds then loads another image time.sleep(10) # now it loads the tracker image # screen res is 240x320 QVGA info=pygame.image.load('motion.png') compass=pygame.image.load('compassblacksmall.png') blip=pygame.image.load('gradientsmall.png') backdrop= rot_center(compass,bearing) wave = pygame.image.load('wave.png') font = pygame.font.Font(None, 30) smallfont = pygame.font.Font(None, 15) display_scale=smallfont.render('m',1,(215,0,0)) possible image candidates: http://www.movietshirt.org/wp-content/u ... irt_18.jpg composite of these: https://vignette2.wikia.nocookie.net/av ... 1122010150 http://vignette1.wikia.nocookie.net/avp ... 1113111101 or https://vignette3.wikia.nocookie.net/av ... 1104202405 http://starland.com/catalog/images/ptal07.jpg You can grey scale it and the compress it down. The resolution would be such things should be OK. |
|
| Author: | knoxvilles_joker [ Fri Jun 02, 2017 1:07 am ] | ||
| Post subject: | Re: Make your own functional motion tracker | ||
200x200 png interlaced. composite image. Would this work for your needs Ian/Vyper?
|
|||
| Author: | Noble [ Fri Jun 02, 2017 2:50 am ] |
| Post subject: | Re: Make your own functional motion tracker |
Looks clip arty to me. I suggest drawing inspiration from sulaco, dropship, sentry terminal, colony map, motion tracker screens. keep it more simple. |
|
| Author: | knoxvilles_joker [ Fri Jun 02, 2017 11:21 am ] |
| Post subject: | Re: Make your own functional motion tracker |
Noble wrote: Looks clip arty to me. I suggest drawing inspiration from sulaco, dropship, sentry terminal, colony map, motion tracker screens. keep it more simple. It did not feel complete to me either. |
|
| Author: | knoxvilles_joker [ Sat Jun 03, 2017 3:26 pm ] | ||
| Post subject: | Re: Make your own functional motion tracker | ||
How about this? I think the Eagles hovering over the Weyland Yutani logo fits with the comic book story in that despite Weyland testing out of control, the marines eventually manage to restore order and kill off the threat. This doesn't look as clip arty, but in the sight of the universe, this does fit better. Now does anyone have any ideas on how to make it look better? Vyper was this what you were thinking of?
|
|||
| Author: | knoxvilles_joker [ Sat Jun 03, 2017 3:32 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
On a separate note I am looking at making a replica unit. https://sketchfab.com/models/1c945eab34 ... c320aaac92 |
|
| Author: | Vypr [ Sat Jun 03, 2017 8:03 pm ] |
| Post subject: | |
For the bootscreen, I tried this http://www.recantha.co.uk/blog/?p=799 And it worked. For one boot. After that I just got a black screen  On another note, new update to website. Added a page for getting the audio set up with the Zero. |
|
| Author: | knoxvilles_joker [ Sat Jun 03, 2017 9:01 pm ] |
| Post subject: | Re: |
Vypr wrote: For the bootscreen, I tried this http://www.recantha.co.uk/blog/?p=799 And it worked. For one boot. After that I just got a black screen On another note, new update to website. Added a page for getting the audio set up with the Zero. Looks like that may need to stop as a service and then launch the script, or stop it as part of the script setup sequence. |
|
| Author: | Willie Goldman [ Sun Jun 04, 2017 12:52 am ] |
| Post subject: | |
See this one? https://www.facebook.com/itsmeatoburrea ... 3445164767 |
|
| Author: | retrogarde [ Sun Jun 04, 2017 4:11 am ] |
| Post subject: | Re: |
Those Nostromo audio clips are a nice touch! I think the point is that it is military tech. No splashy pictures, slogans or anything else. Just boot up, calibrate and go. |
|
| Author: | knoxvilles_joker [ Sun Jun 04, 2017 9:03 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
Add a picture with the green text on black background and then play a background sound of the boot up sequence? |
|
| Author: | Vypr [ Mon Jun 05, 2017 6:35 pm ] |
| Post subject: | |
I think I'll go with this as the loading screen for now:
|
|
| Author: | Noble [ Mon Jun 05, 2017 8:12 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
For fonts, aliens heavy used Helvetica + Eurostile. The delta background is black, I suggest a black screen with fonts used in Aliens. One other suggestion, it's a Motion Tracker. |
|
| Author: | retrogarde [ Mon Jun 05, 2017 10:10 pm ] |
| Post subject: | |

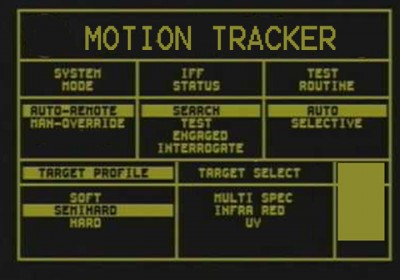

This is just a quickie mockup, but you could steal a lot right from the SentryGun terminal screen: Attachment: mtbootscreen1.jpg [ 178.83 KiB | Viewed 7153 times ] If you really want a splashy image though, at least it could be semi-diagnostic, like this schematic for the Motion Tracker: Attachment: SMmotiontrackerblueprint.jpg [ 495.83 KiB | Viewed 7153 times ] |
|
| Author: | knoxvilles_joker [ Mon Jun 05, 2017 11:46 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
I have reached out to the referenced page posted by willie goldman and see if I can get hands on the creator there as the side panel lit up. With a panel like that if functional, we could do a scripted screen like the smart gun that would also make it easier to script in a reboot and shutdown script. |
|
| Author: | retrogarde [ Mon Jun 05, 2017 11:51 pm ] |
| Post subject: | |
The lit up key pad isn't screen accurate. A very odd choice. |
|
| Author: | knoxvilles_joker [ Tue Jun 06, 2017 1:11 am ] |
| Post subject: | Re: |
retrogarde wrote: This is just a quickie mockup, but you could steal a lot right from the SentryGun terminal screen: Attachment: mtbootscreen1.jpg If you really want a splashy image though, at least it could be semi-diagnostic, like this schematic for the Motion Tracker: Attachment: SMmotiontrackerblueprint.jpg I think it would be quicker and dirtier to just invoke a slideshow interactive with specific keypresses to go up and down. Alternately, just adding another button for a shut down script should be simpler and just stick with the single logo. |
|
| Author: | knoxvilles_joker [ Tue Jun 06, 2017 6:57 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
The 10u capacitor you mention on the sound board page: 2 x 670 Ohm resistors•2 x 0.1 uF Cerramic Capacitors•2 x 10u Electrolytic Capacitors•2 x 100 Ohm Resistors (Optional) Is it 10 Farads or 10 micro Farads? |
|
| Author: | Vypr [ Wed Jun 07, 2017 12:25 pm ] |
| Post subject: | |
It's 10 uF capacitors |
|
| Author: | knoxvilles_joker [ Wed Jun 07, 2017 12:40 pm ] |
| Post subject: | Re: |
Vypr wrote: For the bootscreen, I tried this http://www.recantha.co.uk/blog/?p=799 And it worked. For one boot. After that I just got a black screen On another note, new update to website. Added a page for getting the audio set up with the Zero. Vyper is your boot screen working well, or do you still need to tweak the script you mentioned? |
|
| Author: | Vypr [ Wed Jun 07, 2017 6:34 pm ] |
| Post subject: | Re: Re: |
knoxvilles_joker wrote: Vyper is your boot screen working well, or do you still need to tweak the script you mentioned? The link I posted worked initially till I tried adding the python script to start after boot had finished. This broke the bootlogo. Still investigating this. |
|
| Author: | knoxvilles_joker [ Wed Jun 07, 2017 9:45 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
In the init script this is the line to pay attention to: do_start () { /usr/bin/fbi -T 1 -noverbose -a /etc/splash.png Look at /usr/bin/fbi in my case I would replace with nohup /boot/motion_tracker_v3.py & I would place it in /etc/init.d name it aamotion alternately we could try adding to rc.local test.sh as nohup sh /boot/test.sh & test.sh would contain #!/bin/bash # init /usr/bin/fbi -T 1 -noverbose -a /etc/splash.png sleep 5 # this kills all running instances of fbi in case you multi launched it on accident killall /usr/bin/fbi # if you want sounds initial indications are you do this: # also you could force the also sound to max amixer -c 0 set Master playback 100% unmute aplay a.wav # a.wav could be say the nostromo boot sequence # Display welcome message, computer name and date echo "*** motiontracker script initializing***" echo echo "Check your corners" echo "property USCM" echo "running script now" python /boot/motion_tracker_v3.py & I have to buy another screen to really play with things though. **Update** Mac OS due to its FreeBSD/Unix underpinnings is not a good candidate to test with ahead of time (Mac even in the old PowerPC days was a Unix OS at its cores in the very beginning). The above script does display text. I will have to wait on parts to actually test on the printf and echo implementation within Raspbian/Debian based OS. I found files linked here: https://www.youtube.com/watch?v=qb43-hn_-_c Please note Russia has some different IP laws so if you have Alien Isolation you could technically use the isolation sound 17323853.ogg and edit it to suit your needs. Just make sure you buy the game as you would then technically have purchased the sounds. We need to make sure we compensate the content creators for their efforts. With the lower quality rips and editing we do we should be OK IP wise. Per previous digging in the matter the IP Nazis will not go after cosplayers as we actually bring more money to them, not the other way around. |
|
| Author: | knoxvilles_joker [ Wed Jun 07, 2017 9:57 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
It also appears that FBI could do a slide show so if you wanted to do a faux slide show to make it look like the sentry gun terminal software you could run: #! /bin/bash PHOTODIR=$1 INTERVAL=5 fbi -noverbose -a -t 5 -noverbose --norandom `find \boot\pics -iname "*.jpg"` |
|
| Author: | knoxvilles_joker [ Thu Jun 08, 2017 11:31 pm ] |
| Post subject: | Re: Make your own functional motion tracker |
I have parts on order. I will have another test rig here soon. I'll work on the spat cave tracker then. I will try to have more process pics on that build. |
|
