Hi All,

I had posted a couple things on the RPF, but decided to show it off here, too. I'm in the middle of a smart gun build, and I'm using my 3D printers to make the majority of my parts. So far, I've printed a test specimen of the front gun shroud (the square cage around the barrel). This wound up being fairly weak, and I decided that I'd need some design changes for when I go to mount the handles, AR125 footpeg brackets, and so forth, so I redesigned.

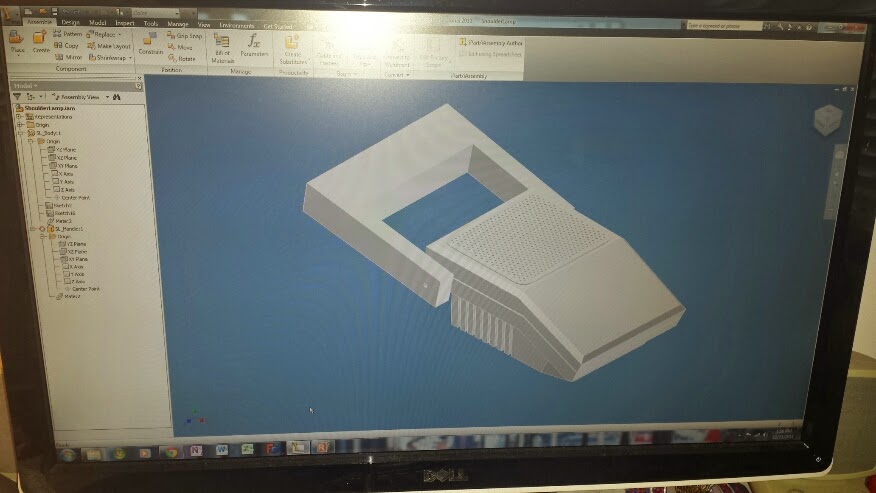

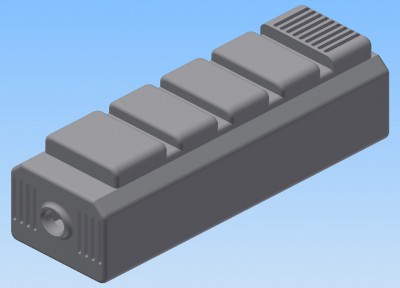

I've also started work on the shoulder lamp (using reference drawings of the alarm system base from here), and the headset (using a crap load of reference photos, and guessing the dimensions)

Enjoy!

I've been making progress on my build. I've decided that the shroud that I previously 3D Printed was too flimsy, but I've been using that as a base to see how other parts (the AR125 brackets I printed) will fit on it. below is the new CAD, but I haven't printed it yet.

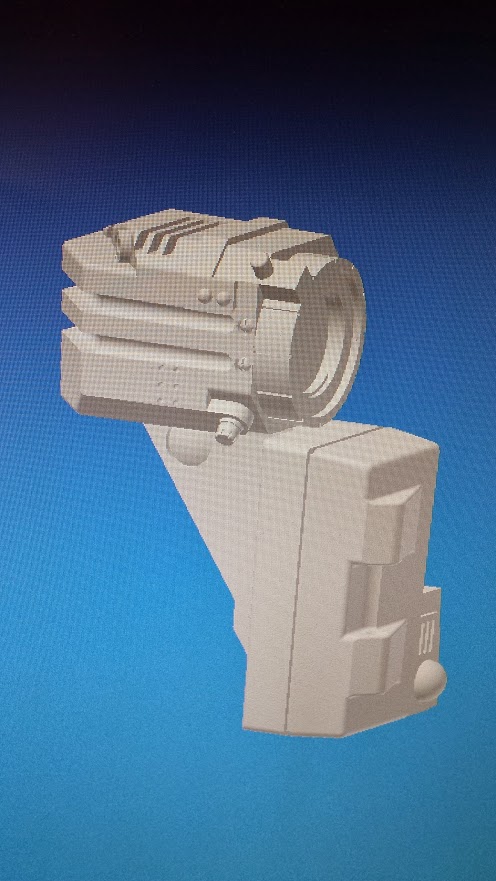

The IR Tracker design I did is slightly modified from the movie stills to fit a Raspberry PI camera module inside it.


Also, the muzzle has been sized to slip fit, and set-screw onto a very long paintball gun barrel. Photos of the printed parts to follow soon.



I have been thinking about this for a while now... what color is the smartgun itself? I've been trying to figure out what sort of paint I'll be using on it to highlight the finer details I'm adding into it. I'm thinking that just using black will hide these details in shadows. What are your thoughts on it?

-Wildcard

Looking good

_________________
Cpl Matthew Rendar. M56 smart gun operator. 2nd bat 7th colonial marines "Rendars Raiders "

Very interesting. Might have to watch this thread closely.

_________________
PFC Mike Rizzuto MVM
USS Blackhawk
3rd Batt 12th Regt

Here's the actual build so far

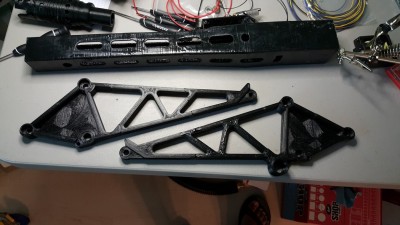

AR125 Footpegs I ballparked the dimensions on

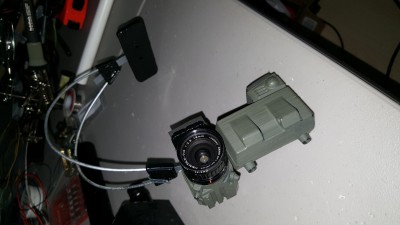

Mockup with the footpegs, IR Tracker, and Front Handle mount

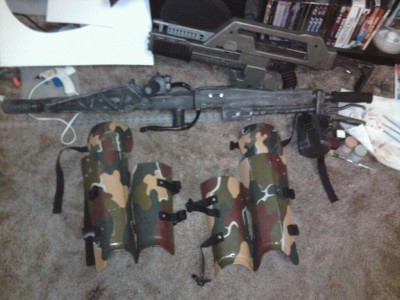

Looking great i can say the base color is black. but with the right weathering from what would be normal wear and tear it brings out the detail great.i attatched pix of my wifes rig to show how the weathering make it pop....

_________________
SGT Chris Kraemer "BIRD"
S/N: A07/TQ0.0.82154G1 Sgt Kraemer

Wow looking great !

_________________
Cpl Matthew Rendar. M56 smart gun operator. 2nd bat 7th colonial marines "Rendars Raiders "

watching this with huge interest as well!

What model printer do you have?

_________________
Lt. Melissa L. Klassen, ALG
AL Colonial Admin. - Executive Officer (XO) -- 2021-2022
RCCM | Royal Canadian Colonial Marines - Commanding Officer (CO) -- 2021-2022

Read the AL Charter Rules & Regulations: https://docs.google.com/document/d/1i3gd9QUyIqI_6rfk8kpxspbKU-JT4MBAjLPxfCkvGJ8

Right now, I'm just running a Printrbot Jr v2. It's got a 6"x6"x6" build volume, and I'm only printing ABS at the moment. I'm in the process of building a delta-style printer that will be able to print a 12"diameter cylinder that's 30" tall. I also have a printer on order capable of 18"x18"x18" in 4 materials at the same time.
