 Post subject: DIY: an aluminum breastplate and beyond!
PostPosted: Mon Jun 16, 2014 2:25 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Hi folks,
so I've dropped a few hints over the last few months, but for my birthday back in March my brother started helping me make a metal breastplate as a present. When we were kids we had these huge dished metal sleds, and I'd noticed he was turning one of them into a shield:

Attachment:
shield.jpg [ 138.41 KiB | Viewed 8920 times ]


I jokingly brought up the idea of turning the other one into a USCM breastplate, and low and behold he did:

Attachment:
breastplate1.jpg [ 149.68 KiB | Viewed 8920 times ]

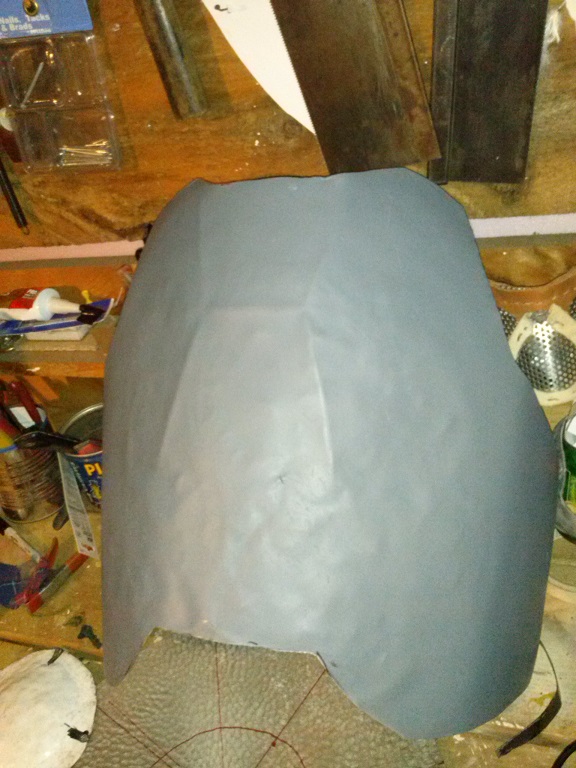

Now we're still fine tuning a lot of it. His metal-smithing is more centered around Experimental Archaeology of the 12th-14th centuries, so some of my requests no doubt seemed counter intuitive to him, but we're making some good progress.

We opted to do the "steps" (which he calls Lames) as two pieces that would then be riveted to the breastplate (where the grenade straps would hide the join) and then blended with Bondo or SteelStik.

Attachment:
lames.jpg [ 149.73 KiB | Viewed 8920 times ]


Now this photo shows before I corrected the angles on the lames. It seems pretty common for folks the make the lames both follow the same shape (even Lee got it wrong in the Tech Manual), but really the bottom one is shaped quite differently:

Attachment:
zhudsonchest_zps4a642c2d.jpg [ 101.56 KiB | Viewed 8920 times ]


It's all academic of course since the belt hides this portion of the armour, but since I'm making a go of it I'm going to try to get the details kinda right. The raised area around the shoulder clip is another bit I need to tackle.

In the end I think it will take a good paint job, the correct neck trim and webbing (thanks Noble!) and the correct sized side release clips (thanks Chef!) to sell the breastplate. I've got faith that I can make this work, and it has been a dream of mine to have metal armour, so we'll see where this adventure leads!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Last edited by retrogarde on Tue Apr 05, 2016 1:25 am, edited 1 time in total.

Top
 Profile
Reply with quote
 Post subject: Re: DIY: an aluminum breastplate (and beyond?)
PostPosted: Sat Jun 21, 2014 12:57 am
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Is he hammering this thing out the 'old fashioned' way'?

One time I went so far as to look for a rounded anvil and a hammer, but after watching a couple youtube videos on the process I totally wussed out. Man I want some metal armor bad. I dont fear drilling, cutting or welding...but somehow "hammering to form" just seems sooooo daunting.

_________________
https://www.amazon.com/photos/share/dlB ... 8C8pu8GPyw


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Jun 21, 2014 1:50 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
You can't quite tell from my crappy photo, but the sleds had a good amount of the dishing already done when we got them. But he has clearly done more (check out the hammer marks).

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Sep 15, 2015 3:55 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Time to dust off this old project and make some actual headway.

My brother's attempt was great, but the overall size was wrong, and the cutout on the bottom wasn't centered to the hourglass shape. So, I compared as many photos as I could find of the breastplate and made the following decisions:

Attachment:
CAM02164.jpg [ 518.72 KiB | Viewed 8194 times ]


I've since cut the bottom and the sides and it makes a world of difference. The top of the cutout really needs to be elbow level so that shape of the bottom of the breastplate follows the wearer's ribcage. Any lower and you're inhibiting movement.

I have been planning all along to build up the lames with layers of plate stacked like overlapping shingles, but when I look at how much material was there before the initial cuts it makes me wish I'd at least tried to make them as indentations. oh well, I can't go back now!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: DIY: an aluminum breastplate (and beyond?)
PostPosted: Tue Sep 15, 2015 1:36 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Awesome! Looking forward to the rest of this.

_________________
https://www.amazon.com/photos/share/dlB ... 8C8pu8GPyw


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Wed Sep 16, 2015 2:34 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
The edges still need to be ground down and leveled a bit, but I wanted to get started on the lames so that I could finish them all off at once instead of dragging out the metal grinder multiple times. So first I made cardboard versions to see how it was looking...

Attachment:
guides.jpg [ 435.29 KiB | Viewed 8138 times ]

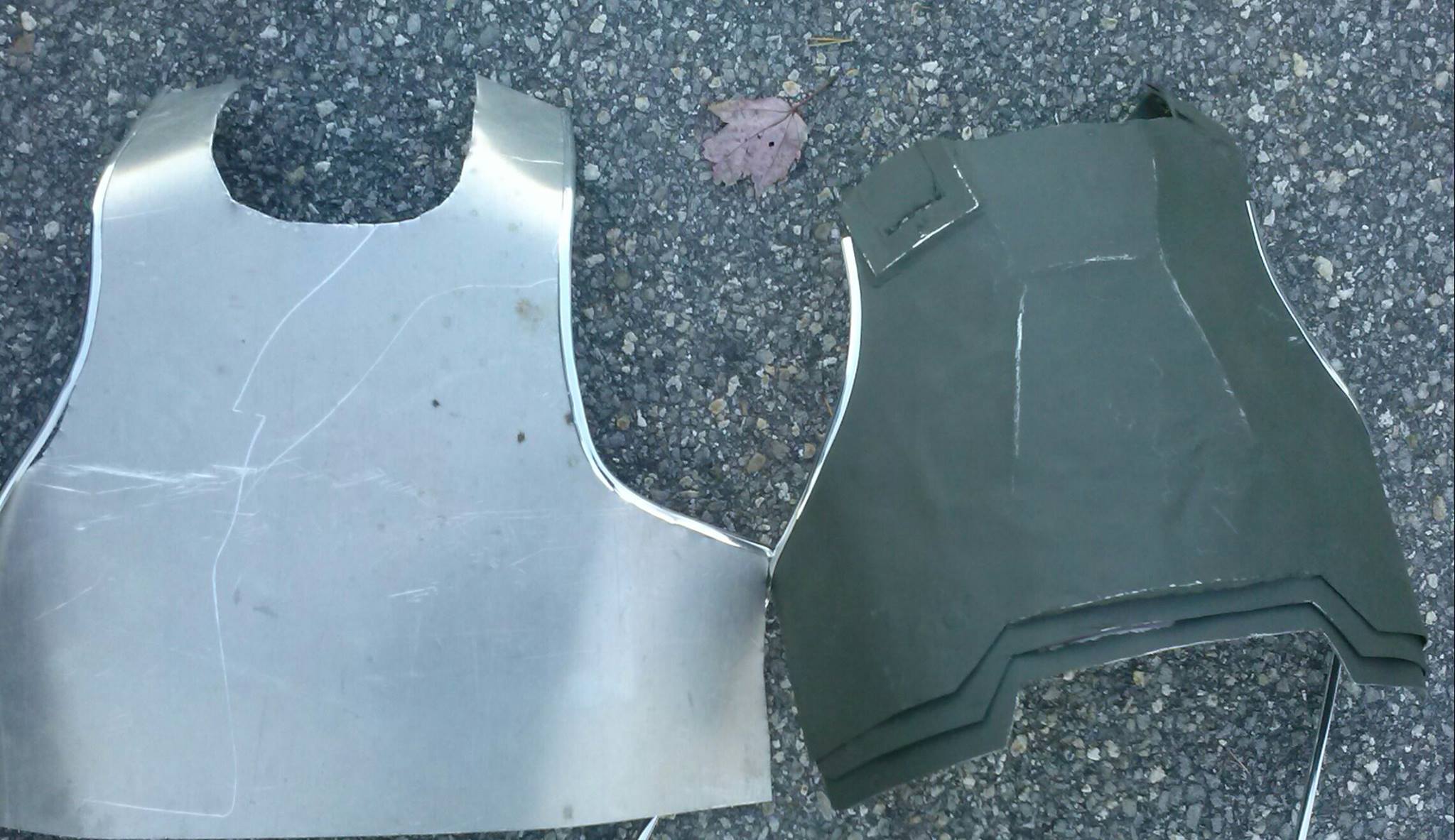

Then a test fit to see how it "wears". Now of course without a back or strapping it is very awkward to keep in place to tell how it's going to be, and that's how you end up with a photo like this where I'm holding the breastplate too low:

Attachment:
lowtestfit.jpg [ 133.11 KiB | Viewed 8138 times ]


I have an old exit sign that is a thicker gauge that I'm using for the lames. It will really help add some strength the the breastplate. I am going to use the finished edge of the sign for the bottom so that the cutout is the only thing I will need to focus on. By cutting the sign I can then take a section from the other end, flip it over, and have a second finished edge for the bottom lame as well.

Once these pieces are all cut out and have their edges smoothed down I will need to rivet the pieces to the breastplate. While I don't think the rivets will show once it is painted, I'm still planning to hide them behind the grenade straps as much as possible. I hope this weekend I can make some real headway on this!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: DIY: an aluminum breastplate (and beyond?)
PostPosted: Thu Sep 17, 2015 7:17 pm
User avatar

Location: Wolfsburg Niedersachsen
Service Number: A12/TQ2.0.02132E1
Country: Germany
That looks pretty cool,I'm looking forward to seeing the end result :D

_________________
Cpl N.Storey A12/TQ2.0.02132E1


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Sep 18, 2015 2:30 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Thanks Schotti! I knew mine would be the "runt of the litter" next to yours and Bigbisont's, but when it is finished and has all the correct bits from Noble added I think it will look pretty good.

Is it the 30th anniversary that has us pumped enough to be making these or the hope of a new Alien film? Maybe both!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Sep 18, 2015 8:14 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Test fitting the lames before riveting them this weekend...

Attachment:
CAM02178-1.jpg [ 827.08 KiB | Viewed 8056 times ]

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re:
PostPosted: Fri Sep 18, 2015 8:40 pm
User avatar

Location: Wolfsburg Niedersachsen
Service Number: A12/TQ2.0.02132E1
Country: Germany
retrogarde wrote:
Thanks Schotti! I knew mine would be the "runt of the litter" next to yours and Bigbisont's, but when it is finished and has all the correct bits from Noble added I think it will look pretty good.

Is it the 30th anniversary that has us pumped enough to be making these or the hope of a new Alien film? Maybe both!


Thanks Retro,but i'm pretty shure that yours is going to Look just as good when it's finished Pal.

_________________
Cpl N.Storey A12/TQ2.0.02132E1


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Sep 22, 2015 4:05 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
A huge amount of work done on the breastplate this weekend. But each step forward shows how much there still is to do. The edges have all been ground down and the lames have been added to the bottom. The raised guard around the right "shoulder" (where the quick release clip goes) is nearly done, but I see now that the left "shoulder" should have been extended up and not cut off. So, I need to measure and cut an extension, rivet it onto a jump plate and JB Weld the seam. Speaking of which, all the rivets in these photos have been JB'd and sanded down smooth. It's really quite a process but I'm damned happy!

Attachment:
CAM02183.jpg [ 506.07 KiB | Viewed 7995 times ]


Attachment:
CAM02187.jpg [ 945.85 KiB | Viewed 7995 times ]


Attachment:
CAM02184.jpg [ 849.81 KiB | Viewed 7995 times ]


Attachment:
CAM02186.jpg [ 1.09 MiB | Viewed 7995 times ]

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Oct 06, 2015 2:33 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Getting a bit more work done on this. I know it is rough, but in the end it will all be painted in camo anyway so I'm trying to not be down on the fact that it isn't as silver and shiny and Schotti and Bigbisont's awesome builds.

Attachment:
12087658_10205141778319609_7922827071193506734_o.jpg [ 607.65 KiB | Viewed 7860 times ]


I found an aluminum name plate off an old electrical panel that was just the right size. The lettering isn't raised so it'll disappear as soon as I start painting this puppy.

Attachment:
12132612_10205141789079878_6467121566176379307_o.jpg [ 395.16 KiB | Viewed 7860 times ]


I started working on a pattern for the back piece so hopefully I'll be working on that soon too!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Oct 29, 2015 2:03 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States

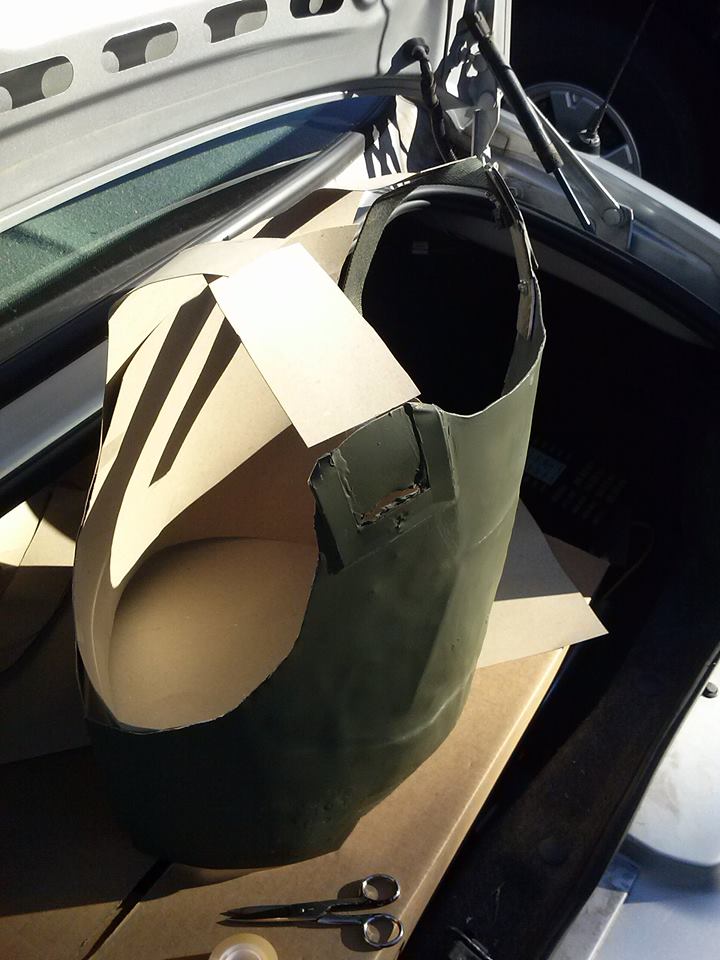

After working out what I wanted in cardboard...

Attachment:
12187683_10205238689102318_1636522196214971871_n.jpg [ 81.67 KiB | Viewed 7675 times ]

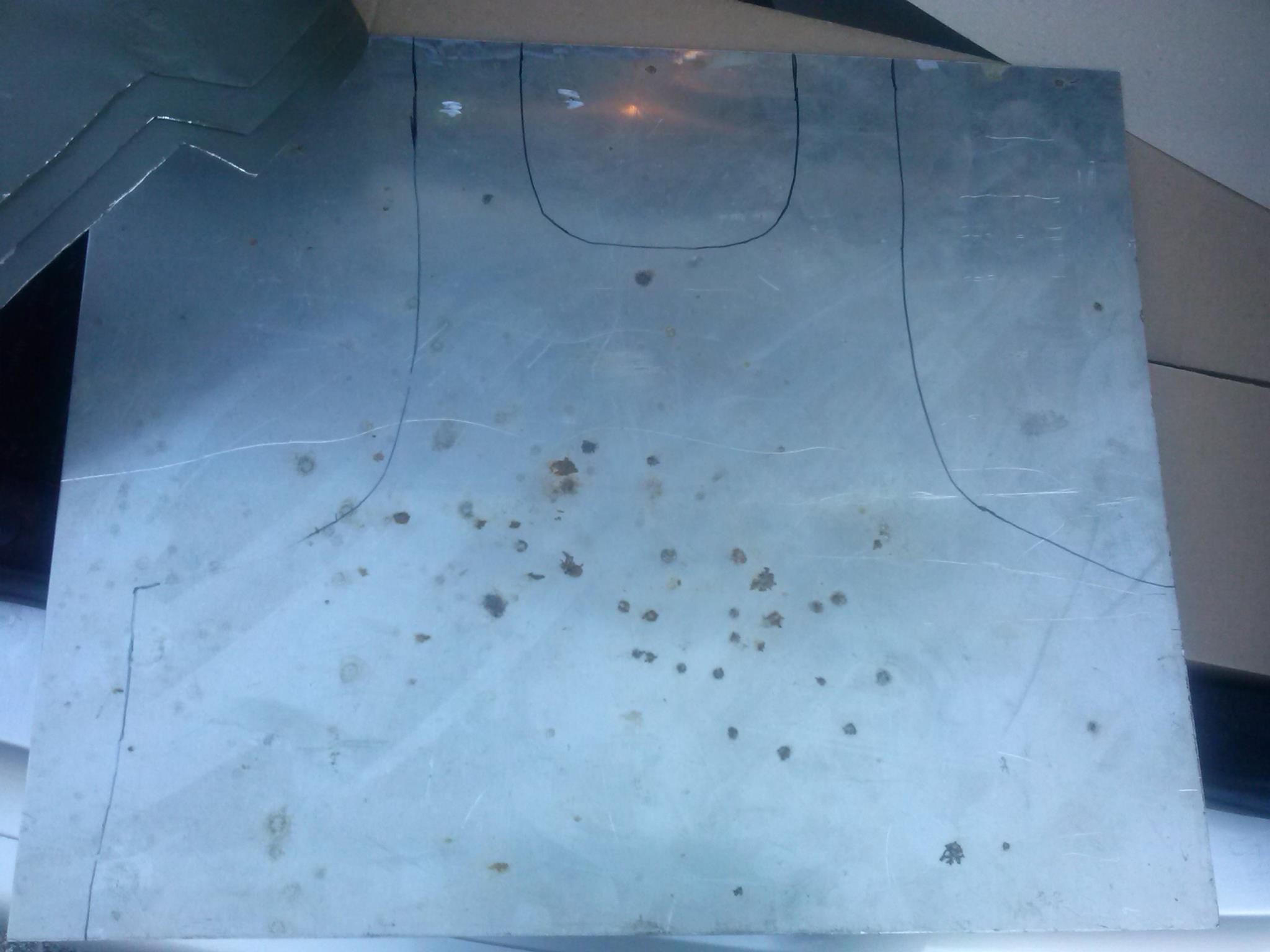

I moved on to aluminum...

Attachment:
12186803_10205238686862262_3366858212788822010_o.jpg [ 147.38 KiB | Viewed 7675 times ]


and started getting a feel for the shape.

Attachment:
12186360_10205240299702582_8172920625295012195_o.jpg [ 282.59 KiB | Viewed 7675 times ]


Using the reference photos from this site (and especially Bigbisont's build thread) I'm mapping out where everything needs to go. I need to make the indented areas before I fully shape the back late, so right now it looks pretty funny.

Attachment:
12189040_10205242647481275_5235988887846086645_n.jpg [ 86.8 KiB | Viewed 7675 times ]

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: DIY: an aluminum breastplate (and beyond?)
PostPosted: Fri Oct 30, 2015 6:14 pm
User avatar

Location: Wolfsburg Niedersachsen
Service Number: A12/TQ2.0.02132E1
Country: Germany
Hey mate Thats looking pretty Darn good keep it Up.

_________________
Cpl N.Storey A12/TQ2.0.02132E1


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Nov 05, 2015 5:02 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Psyching myself up to do the five indentations in the back plate. I'm nervous about messing it up, but this whole project has been a huge learning experience so far already.

Attachment:
12189218_10205264167339258_8795608168448372501_o.jpg [ 239.35 KiB | Viewed 7544 times ]

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Nov 05, 2015 4:06 pm
Mad Cat
User avatar

Location: Active duty: USS Catalpa
Service Number: AO3/TQ6.0.79749E8
Country: United States

_________________
"Awww, someone tell me that's a boot!

It's a boot!"

II drops


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Dec 31, 2015 2:36 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Back at it again!

So first I had to measure and sketch it all out so that everything would be even and balanced. Once I was happy with that I made paper templates of the indentations and gave them to a woodworking friend.

Attachment:
backlayout.jpg [ 91.68 KiB | Viewed 7249 times ]


He turned them into positive and negative wooden block sets.

Attachment:
woodenblocks.jpg [ 186.94 KiB | Viewed 7249 times ]


I then put the positive on the front, the negative on the back and sandwiched them in a vice to make the indent. I had my friend leave a 2mm gap the whole way around on the negative, and I'm thinking that was too much as it resulted in a softer edge than I'd expected. I'm going to try to improve it a bit, but even so I'm pretty happy with how it is turning out.

Attachment:
topindent.jpg [ 275.45 KiB | Viewed 7249 times ]


The side is proving to be trickier as I can't get my vice in to clamp on it as easily. This is still a good start, but I may have to do some extra anvil work on the sides.

Attachment:
sideindent.jpg [ 95.12 KiB | Viewed 7249 times ]

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: DIY: an aluminum breastplate (and beyond?)
PostPosted: Thu Dec 31, 2015 5:26 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Very interesting approach! I wouldn't worry about the 'soft' edges too much. A sharp edge (anvil) and flat hammer can definitely crisp things up pretty good. Can't wait to see the final product!

_________________
https://www.amazon.com/photos/share/dlB ... 8C8pu8GPyw


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Jan 01, 2016 2:14 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Thanks man! My indented area is entirely uniform which is great. Now I just need to make it look crisp. I can't believe how long this has taken, but knowing that I'll be trooping in metal armour for the 30th anniversary feels awesome.

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: DIY: an aluminum breastplate (and beyond?)
PostPosted: Fri Jan 01, 2016 10:27 am
reload
User avatar

Location: Hamburg
Service Number: A03/TQ3.0.12136E1
Country: Germany
Thanks for sharing.
Keeping fingers crossed it will be ready for your next drop.
It’s truly a great way to celebrate the 30th anniversary.

BTW: Happy New Year and good luck with all of your activities! :)

_________________
Sgt. Frank Peters 'reload' Smartgun Operator
A03/TQ3.0.12136E1 "It will be no picknick!"
UKCM Foreign Legion: The Deviant Dragoons



Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Jan 02, 2016 6:49 pm

Location: PA
Country: United States
I am forever impressed with the gear that gets created on this site.
Turning an old sled into CM armor - that's fantastic!


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Jan 04, 2016 2:41 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Well, I abandoned my early approach and just went at it with the hammer and anvil.

Attachment:
backplatejanuary3.jpg [ 250.43 KiB | Viewed 7064 times ]


Is is rough? Yes.

Is it done? No.

I'm going to see what I can do to even things out. I need another day in the shop, but right now I've got a pair of blisters on my hammerin' hand, so I need to wait. :roll:

Worst case I put a little Bondo on the rough patches, right??

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Jan 09, 2016 3:12 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
We had a break in the cold weather so I took the opportunity to do some more parking lot armour building.

Attachment:
backplatejanuary8.jpg [ 126.24 KiB | Viewed 6983 times ]


Attachment:
frontplatejanuary8.jpg [ 110.39 KiB | Viewed 6983 times ]


The back is really almost in the right shape. I need to get a few spare hands to help me check the fit and how it interacts with the pauldrons. I left the sides of the back plate intentionally long so that I would have wiggle room on both the fit and the angle. My goal is a to have a nice snug fit where the two halves clamshell together on both sides with no gap.

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jan 17, 2016 6:07 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Slow and steady...

Attachment:
1-17 armour test1sm.jpg
1-17 armour test1sm.jpg [ 645.95 KiB | Viewed 6892 times ]


I need to trim the edges of the backplate's sides to make them even with where they meet up with the sides of the front plate.

Attachment:
1-17 armour test2sm.jpg
1-17 armour test2sm.jpg [ 1.72 MiB | Viewed 6892 times ]


I still need to add the plate to the bottom of the back, and the lamp brackets. Then paint, trim, weathering... oh, and shoulder bells and tabs!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: DIY: an aluminum breastplate (and beyond?)
PostPosted: Mon Jan 18, 2016 3:32 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Looking great! Can't wait to see all the improved parts and paint all finally come together.

_________________
https://www.amazon.com/photos/share/dlB ... 8C8pu8GPyw


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 49 posts ]  Go to page 1, 2  Next



You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
