 Post subject: Counter switch
PostPosted: Sun Nov 10, 2013 9:46 pm

Country: United States
Hi all

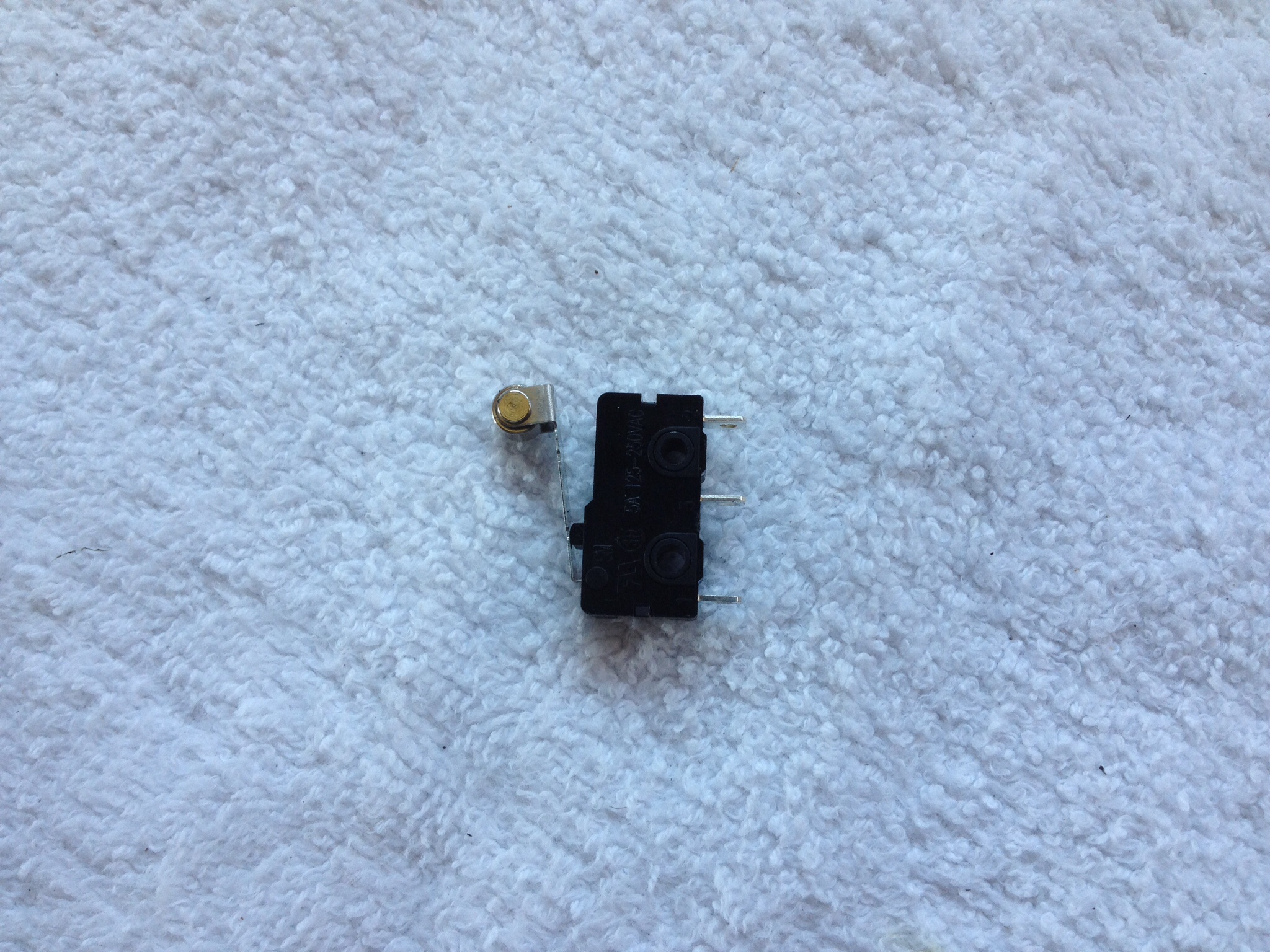

Well I feel lke the boy crying wolf here. Everytime I think Im done with the Rifle something comes up that takes twice a slong as I think it will. Insalled the counter and decided I wanted it to light up when I inserted the mag. Tried a few different methods that didnt work! Im onto Idea number three! Went to my local Radio Shack and came home with this.....
So now when I slide the mag in it his the roller arm and activates the switch. The switch is mounted at the back end of the HCG grenade launcher. I will also i stall an on/off switch so when the mag is in I can turn it off. Had one in allready but crazy glue and electronics dont work well sometimes .

image.jpg [ 780.12 KiB | Viewed 1303 times ]

image.jpg [ 760.4 KiB | Viewed 1303 times ]

image.jpg [ 980.06 KiB | Viewed 1303 times ]


_________________
I may be synthetic, but im not stupid.
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Nov 11, 2013 12:10 pm
User avatar

Location: Kentucky USA
Service Number: A03/TQ1.0.12132E1
Country: United States
Great idea. I used quite a few of the roller switches in my second and third PR builds.

_________________
viewtopic.php?f=4&t=12784
viewtopic.php?f=4&t=12917


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Nov 12, 2013 2:18 am

Country: United States
Hi
I used this area cause my battery and switch take up the lower area of the shrouds. I plan to finish the wiring in the next day or two. This is making my soldering skills better. Ill post pics when done.
