 Post subject: Christmas in August!
PostPosted: Tue Aug 06, 2013 3:21 am

Country: United States
That's right Christmas came early this year!
Attachment:
IMG_0267 (640x480).jpg
IMG_0267 (640x480).jpg [ 99.59 KiB | Viewed 8418 times ]
Attachment:
IMG_0272 (640x480).jpg
IMG_0272 (640x480).jpg [ 174.97 KiB | Viewed 8418 times ]

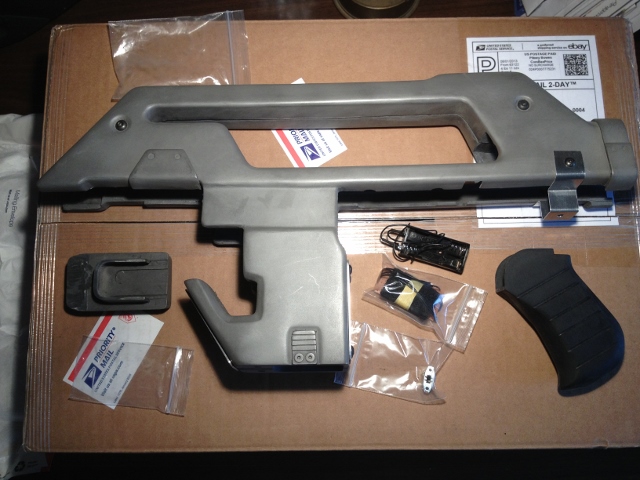

I was a good little boy saved some money and Matsuclause sent me Shrouds grip and counter!
Attachment:
IMG_0280 (640x480).jpg
IMG_0280 (640x480).jpg [ 159.73 KiB | Viewed 8418 times ]

Attachment:

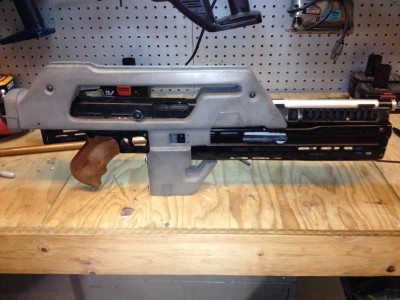

Test fitting shrouds
IMG_0275 (640x480).jpg
IMG_0275 (640x480).jpg [ 129.04 KiB | Viewed 8418 times ]

Attachment:
Test fitting parts
IMG_0281 (640x480).jpg
IMG_0281 (640x480).jpg [ 132.85 KiB | Viewed 8418 times ]

Having a hard time fitting up my gl and barrel shroud! But some more work and Ill get it. May have to tweak the parts a little. More to come!

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Aug 06, 2013 9:10 am
User avatar

Location: Kent, UK
Very nice. Is that an airsoft spas cage?


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Aug 06, 2013 9:53 am
User avatar

Location: Kentucky USA
Service Number: A03/TQ1.0.12132E1
Country: United States
Ooooohhh, those are Matt's new, more accurate shrouds he told me about! Very nice!

_________________
viewtopic.php?f=4&t=12784
viewtopic.php?f=4&t=12917


Top
 Profile
Reply with quote
 Post subject: Re: Christmas in August!
PostPosted: Tue Aug 06, 2013 11:13 am
User avatar

Location: UK all the way
Country: United Kingdom
Ohhhh very nice, Happy Xmas ! :)


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Aug 06, 2013 11:58 am

Country: United States
Yes it is Nickatron. I started with that originally and put a lot of work into it. I have an HCG launcher I might use but I scaled my barrel vent to the airsoft launcher which is only a cm shorter than the HCG launcher. Also have another dillema with the way I first mounted the launcher to the thompson. The mounting plates are a little too wide so i either have to trim down the mounting plater or the shrouds. Also I will have to trim out where my barrel vent fits into th shroud.

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject: Re: Christmas in August!
PostPosted: Tue Aug 06, 2013 1:35 pm
User avatar

Location: Kentucky USA
Service Number: A03/TQ1.0.12132E1
Country: United States

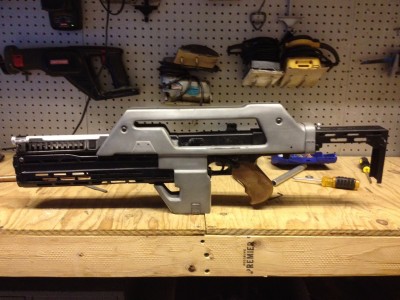

When I built my second PR using Matt's shrouds, seen below, I had to do a lot of Dremel work to get my parts to fit. Study the parts, and cut carefully. I plan to use Matt's shrouds on my next PR.

pulse rifle.jpg
pulse rifle.jpg [ 45.4 KiB | Viewed 8351 times ]


_________________
viewtopic.php?f=4&t=12784
viewtopic.php?f=4&t=12917
Top
 Profile
Reply with quote
 Post subject: Re:
PostPosted: Tue Aug 06, 2013 2:53 pm

Country: Germany
robiwon wrote:
Ooooohhh, those are Matt's new, more accurate shrouds he told me about! Very nice!


These look very crisp indeed, niice! :)

Are these molded from the HCG shrouds? They show some distinct features which I only knew from the HCG.

Markus


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Aug 06, 2013 6:52 pm

Country: United States
Not sure about the HCG shrouds. They are pretty awesome though! I thought when I receved them I could just throw thep on paint em and done. Not so. Im using my own parts so I have to do some trimming of Matts shrouds. Dont really want to seems like sacrilage and not to mention the money for them. the front just above my gl dosent sit on the gl any suggestions how to fix?

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Sep 08, 2013 5:32 pm
Proceed on a 2-1-6...
User avatar

Location: Sunny Sussex
Service Number: A02/TQ2.0.52141E1
Country: United Kingdom
Hi there - How are you getting on with your build? Any pictures? How much cutting have you had to do?

I'm pretty sure that Matsuo's shrouds are basically HCG ones (didn't Matsuo have a lot to do in the development if the HCG?)...

Anyway... I've just ordered a load of other parts for a hero build... They're SD studios parts... So I'm hoping they'll fit some Matsuo shrouds as I'm going to get an Aluminium shroud set from him...

Which counter have you got?

I'll be making my hero PR around an Airsoft Thompson and M870... Lots of work ahead!

_________________
A02/TQ2.0.52141E1

"Errr... Roger that's a 2-1-6..."


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Sep 09, 2013 1:54 am
You there! Get me a Turkey!
User avatar

Location: Oklahoma City, USA
Service Number: A03/TQ1.0.62157E1
Country: United States
Matt's shrouds are indeed HCG shrouds. Only difference is material but they are one and the same.

Beautiful pressy there....be sure to post the porn pics once she's done.

_________________


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Sep 09, 2013 7:33 am
Proceed on a 2-1-6...
User avatar

Location: Sunny Sussex
Service Number: A02/TQ2.0.52141E1
Country: United Kingdom
Matsuo does both metal and vac formed ones now I thought... I presumed the metal ones are indeed Aluminium?

_________________
A02/TQ2.0.52141E1

"Errr... Roger that's a 2-1-6..."


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Sep 13, 2013 2:37 pm

Country: United States
The shrouds I receved are resin molded. I had some questions about the shrouds and what Matt told me was he molded them off a screen used pulse. The screen used ones were hand formed so they have slightly different lines than the HCG aluminum shrouds. I was going back and fourth about using the more accurate HCG launcher. My decision was made for me when I knocked the airsoft gl off my bench and on the concrete garage floor. The airsoft gl broke into several peices. I made new mounting brakets for the gl and also reused the front block and mounted it to the HCG launcher. Had to do a lot of grinding for it to fit! Ill post new pics soon.

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Sep 14, 2013 2:42 pm

Country: United States
Hi all
Got more work done on my pulse rifle. finall got the gl mounted how i wanted. Its very solid now. With Matsuos help realized my barrel vent is too tall. So i also had to rework how my barrel mounts to the thompson. Heres some progress pics!
Attachment:
image.jpg [ 755.92 KiB | Viewed 8134 times ]

Attachment:
image.jpg [ 871.15 KiB | Viewed 8134 times ]

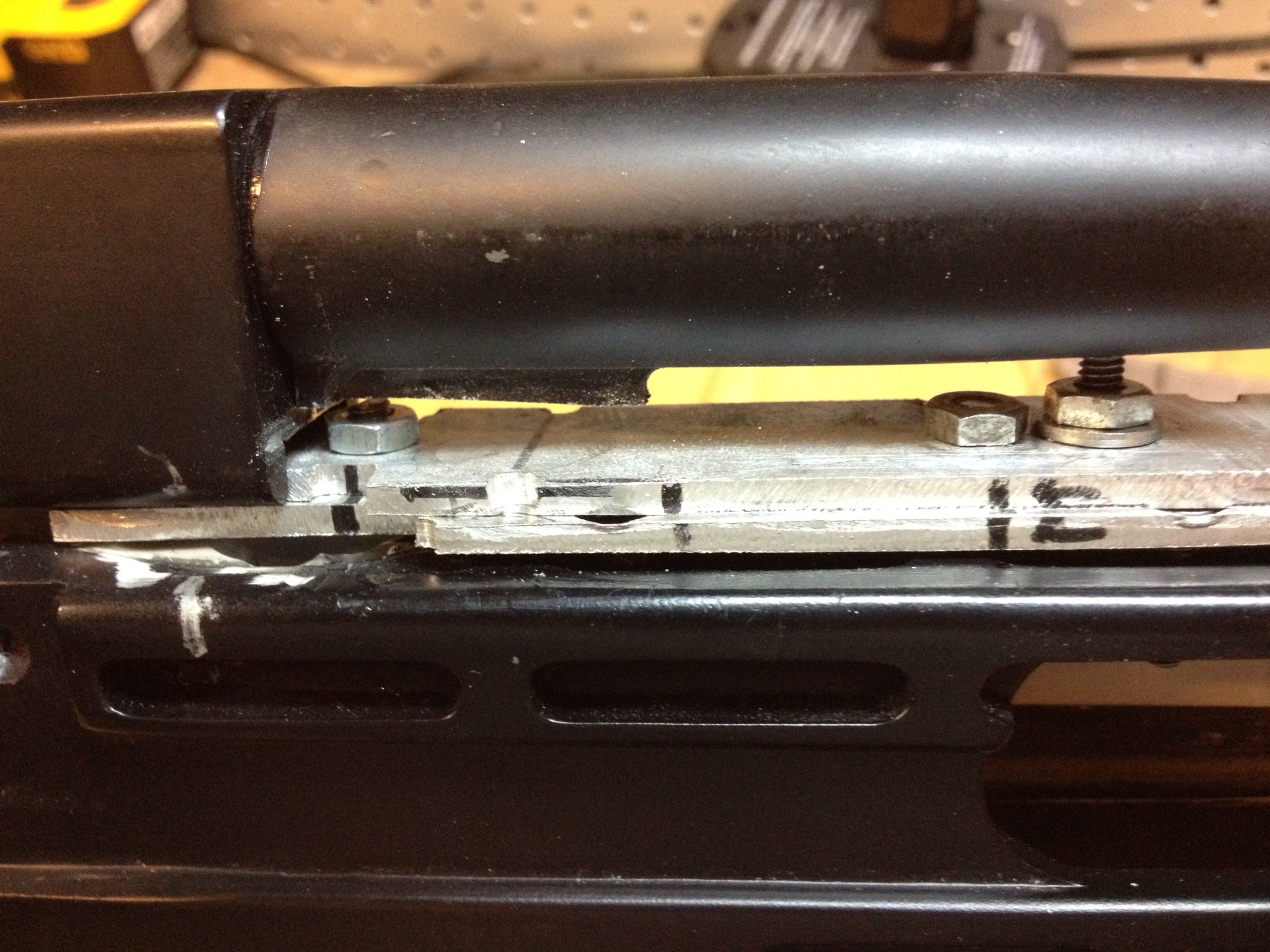

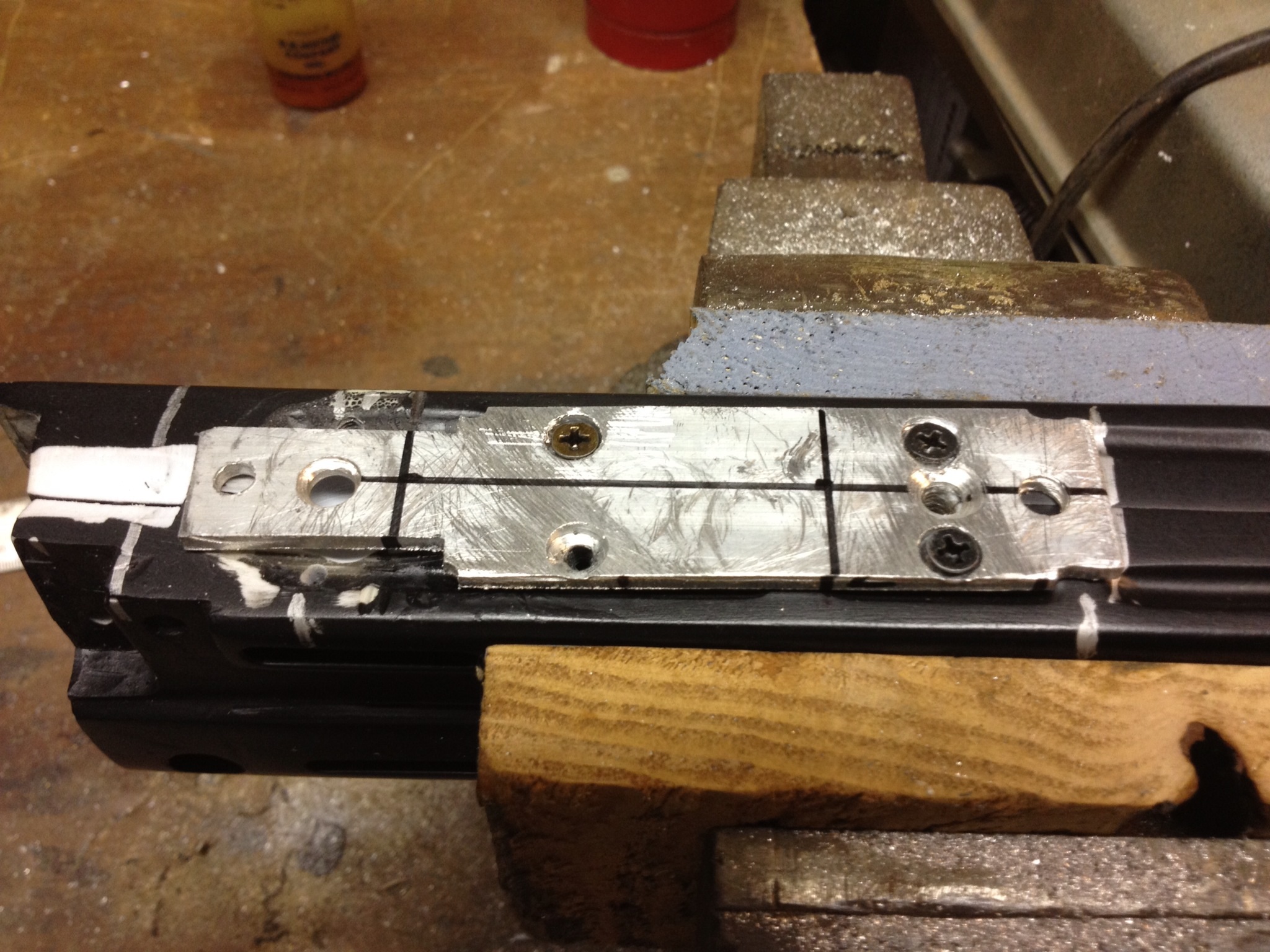

What i did in the above pics was to attach a plate to the top of the gl, I the drilled two holes, threaded them and then added two screws. I then cut the heads off the screws an created studs.
Attachment:
image.jpg [ 778.68 KiB | Viewed 8134 times ]

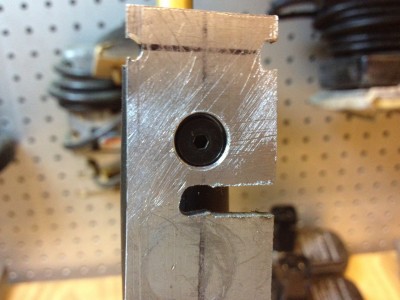

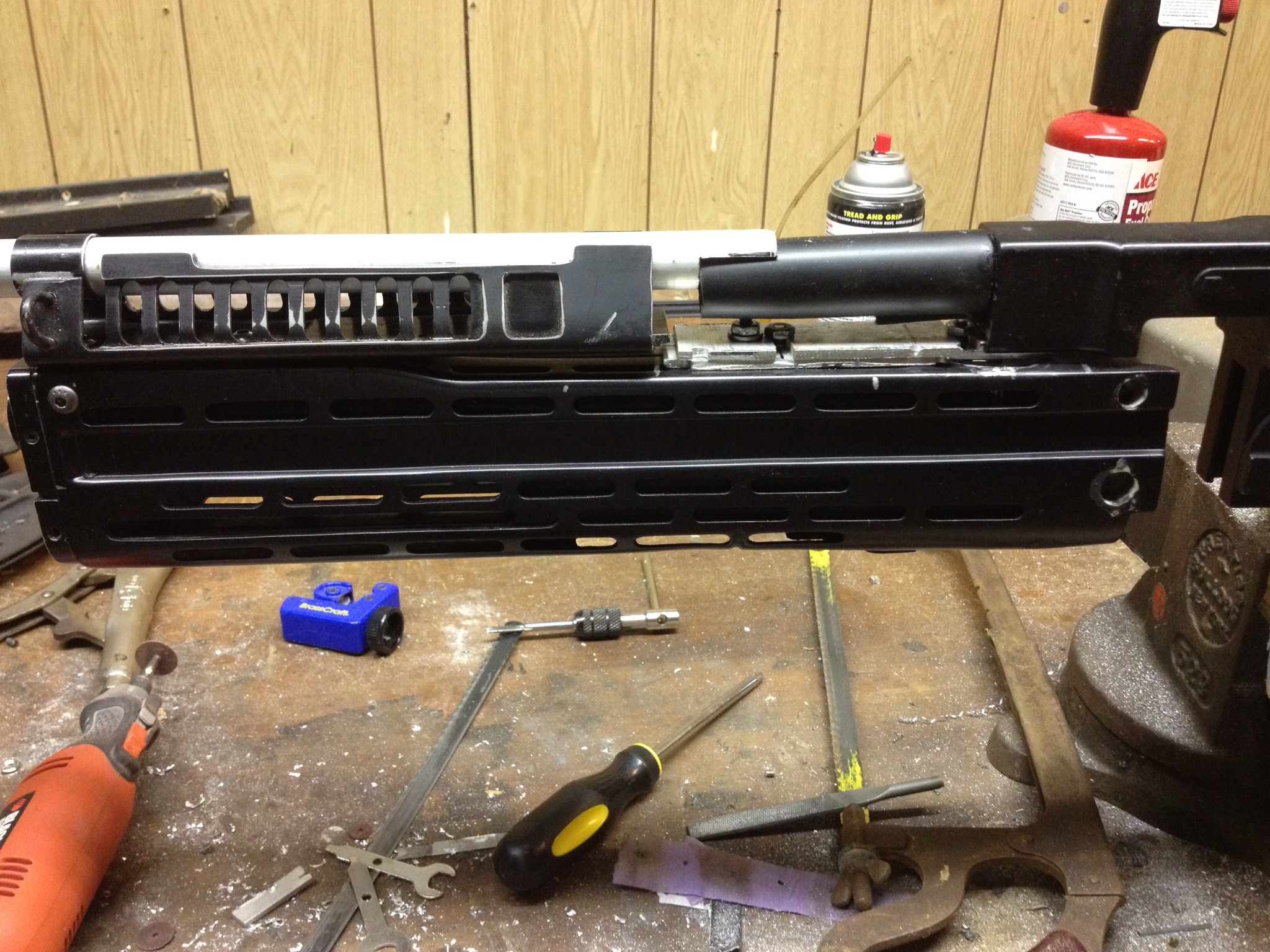

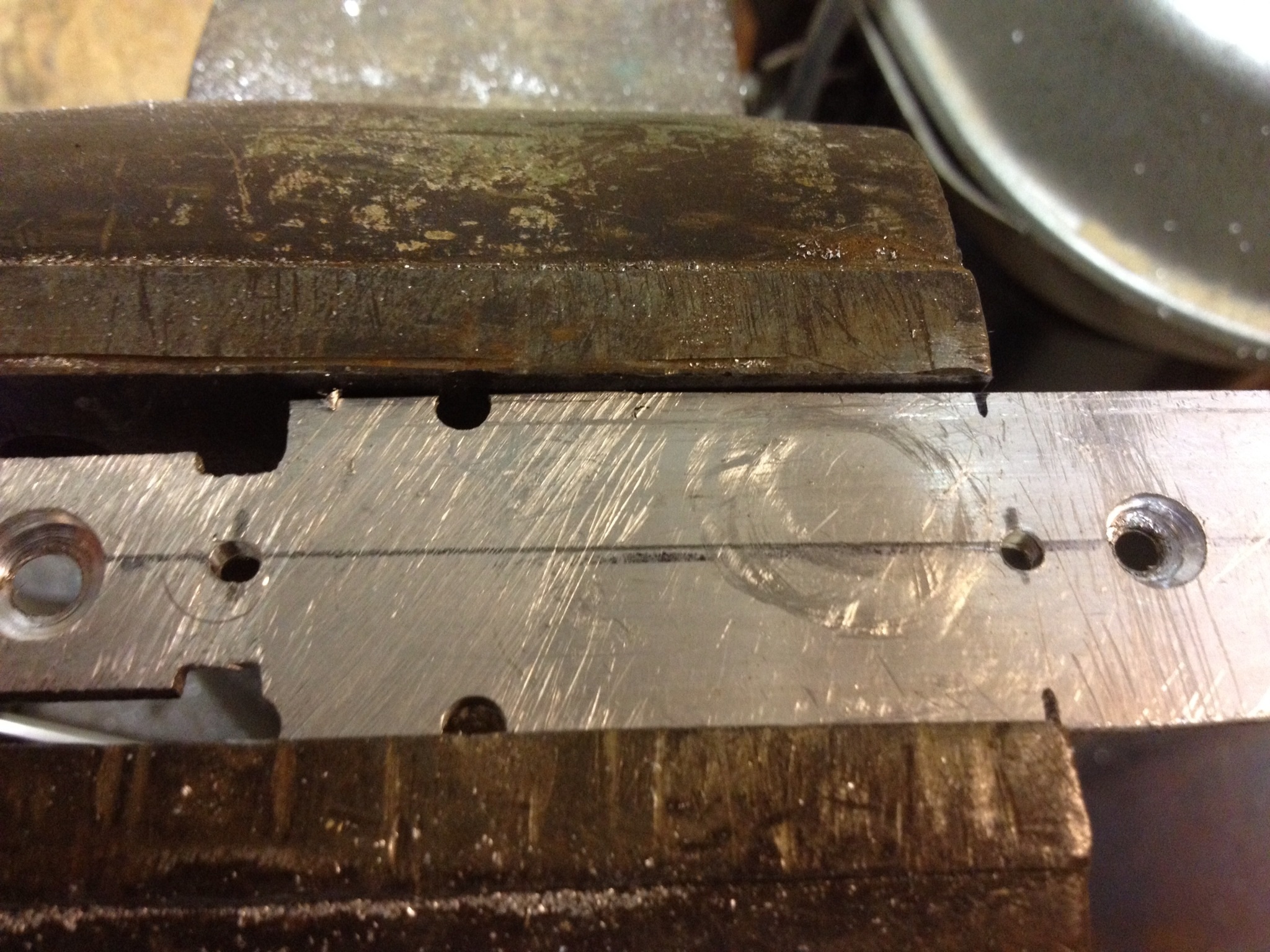

The above pic shows the anchor point for the mounting plate. this keeps everything rock solid.
Attachment:
image.jpg [ 885.74 KiB | Viewed 8134 times ]

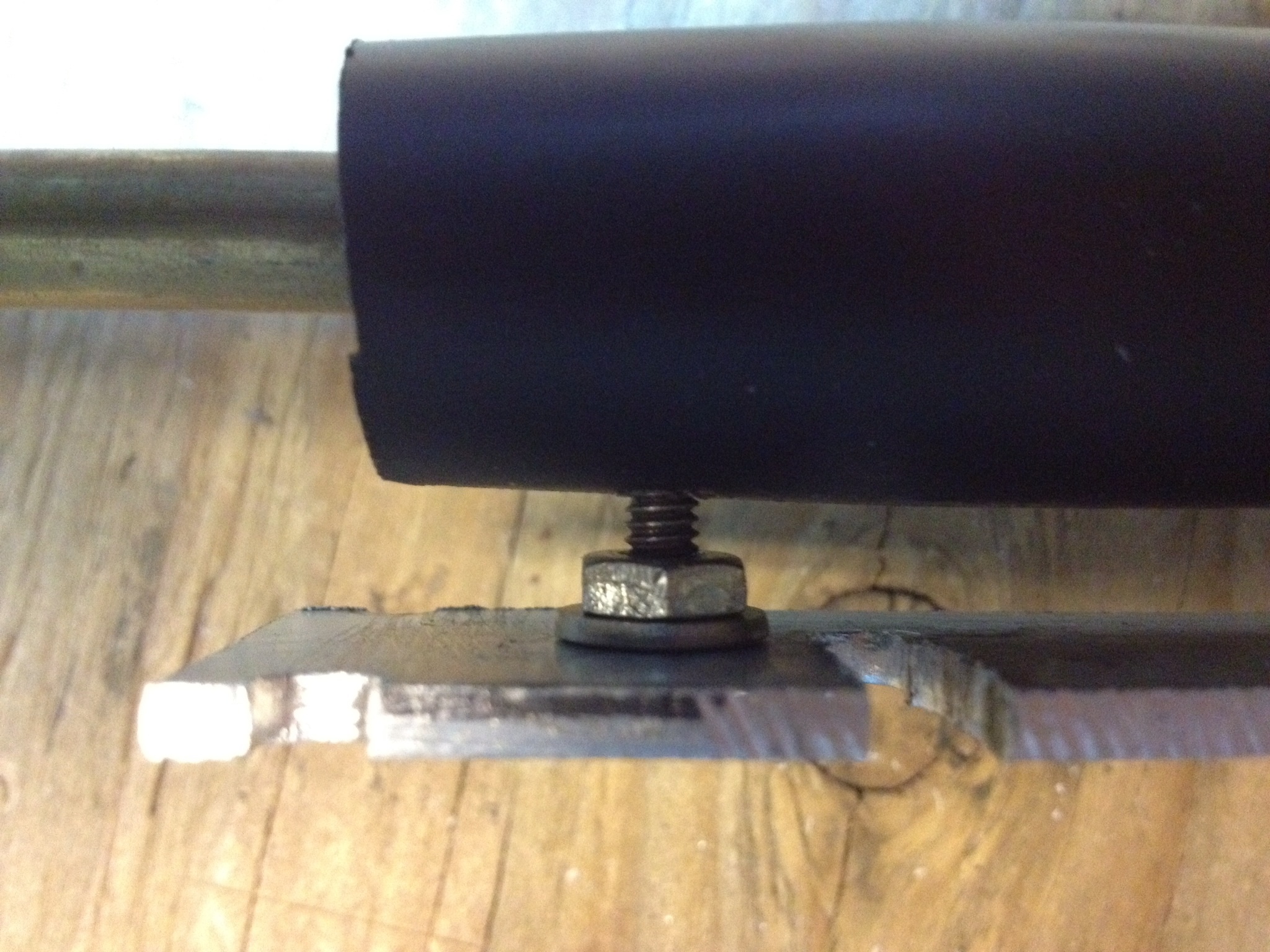

I had trouble getting the nuts onto the studs so i came up with the idea to cut slots into the mounting plate. this way I could put the nuts on first then slide the gl onto the mounting plate.
Attachment:
image.jpg [ 885.74 KiB | Viewed 8134 times ]

Well thats all for now more to come!

image.jpg [ 871.68 KiB | Viewed 8134 times ]


_________________
I may be synthetic, but im not stupid.
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Sep 17, 2013 6:44 pm

Country: United States
Here are a few more pics to add
Attachment:
image.jpg [ 923.68 KiB | Viewed 8090 times ]
Attachment:
image.jpg [ 923.68 KiB | Viewed 8090 times ]

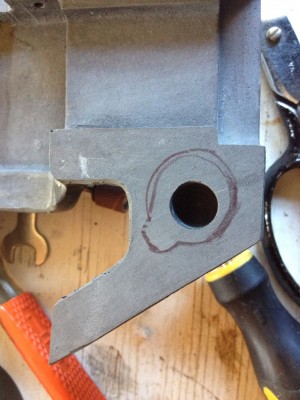

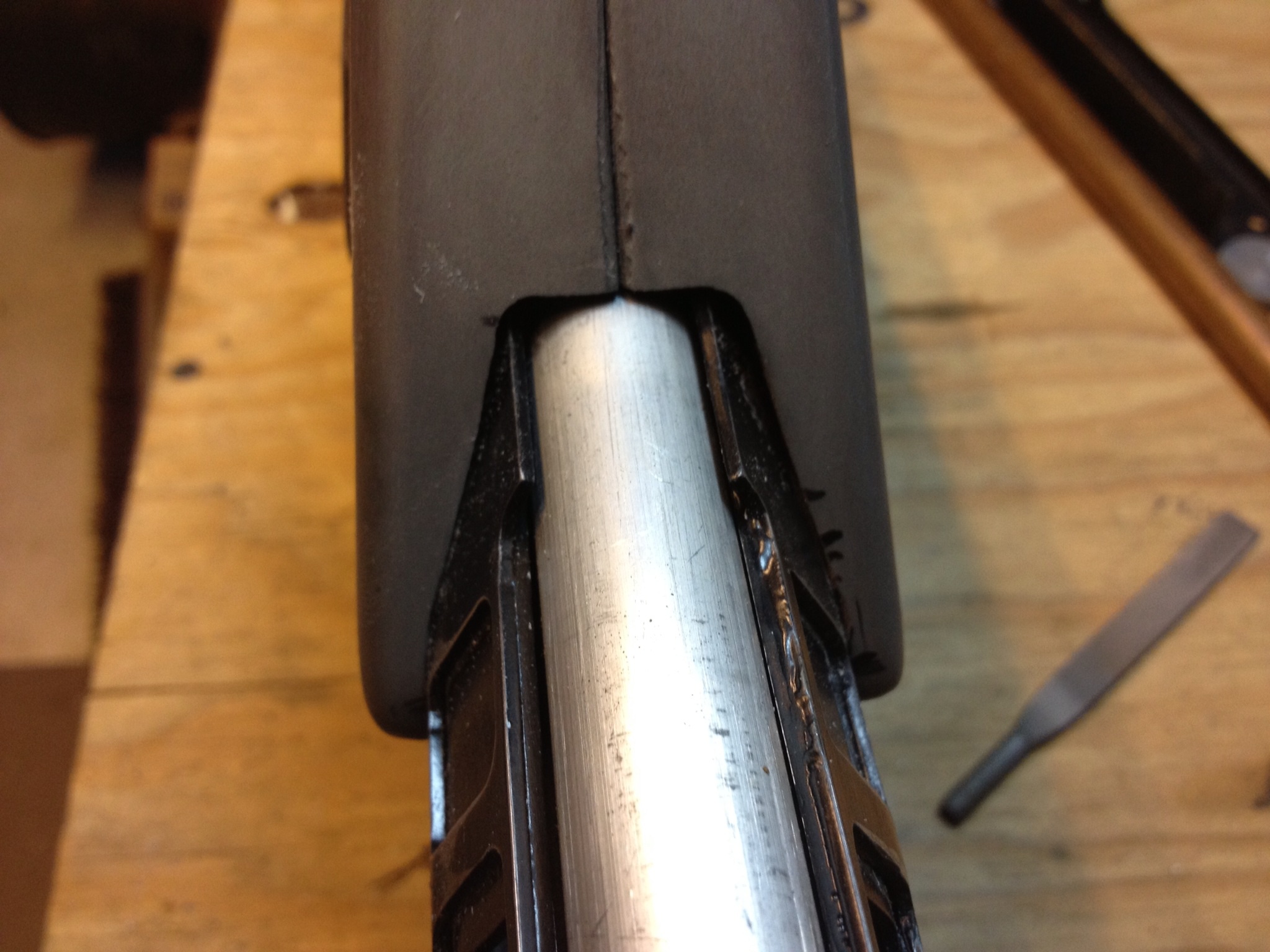

Carefully filing out the area for the barrel vent. Still more to do.

image.jpg [ 726.36 KiB | Viewed 8090 times ]


_________________
I may be synthetic, but im not stupid.
Top
 Profile
Reply with quote
 Post subject: More pics!
PostPosted: Tue Sep 17, 2013 11:46 pm

Country: United States
Hi all

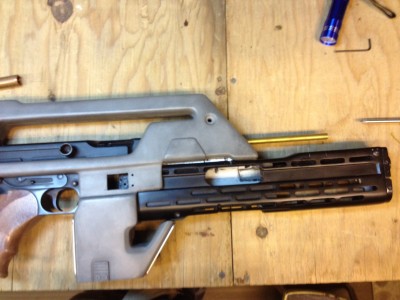

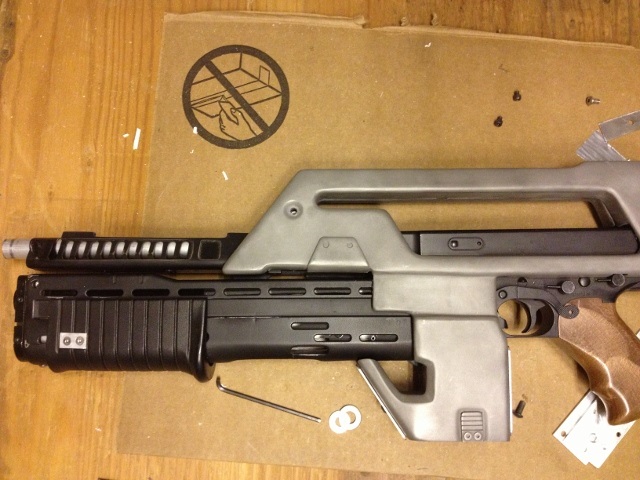

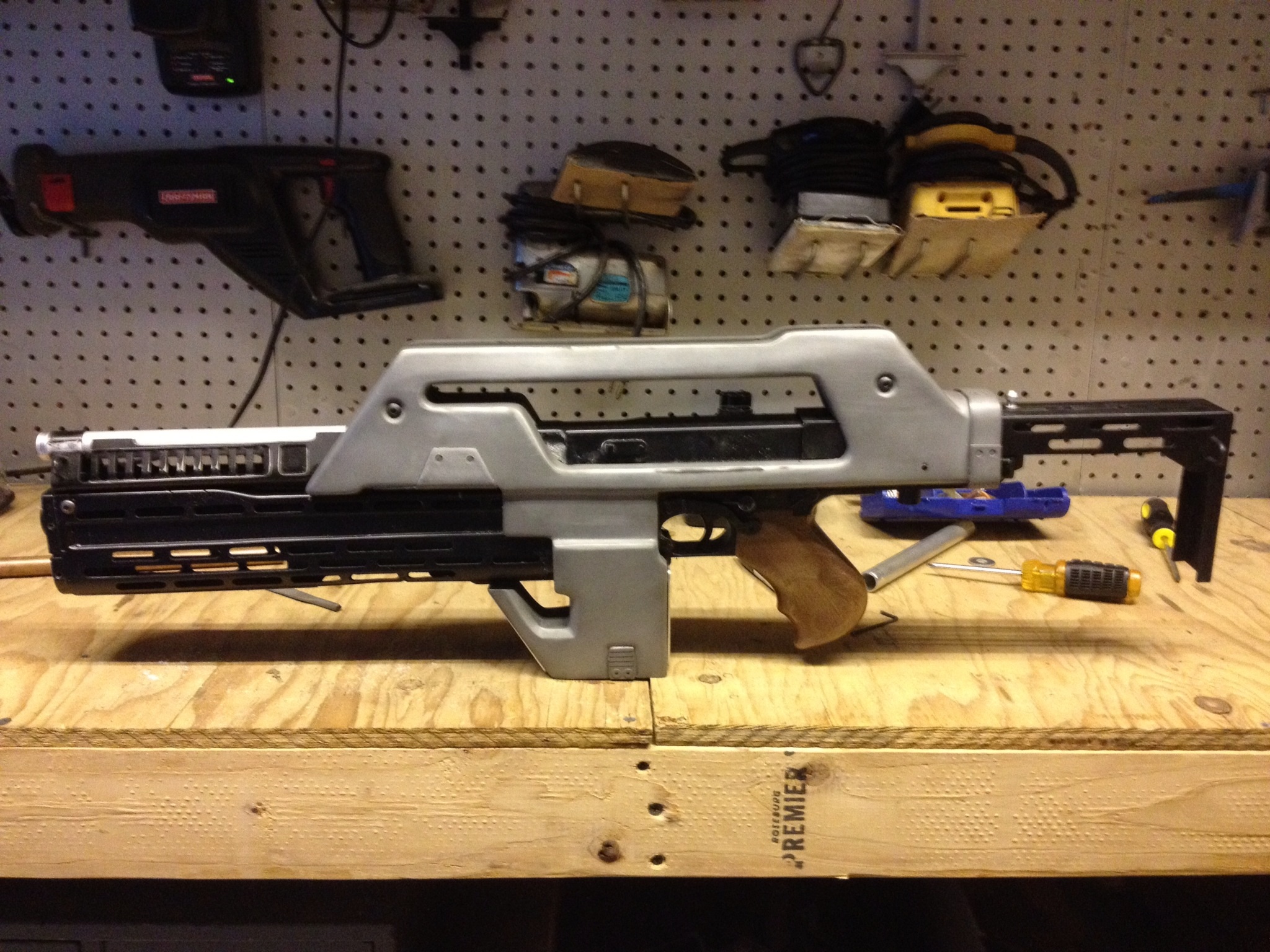

Shrouds fit very well now! Trimmed out where the barrel vent sits and now works well! More pr porn!
Attachment:
image.jpg [ 579.82 KiB | Viewed 8073 times ]

Attachment:
image.jpg [ 743.81 KiB | Viewed 8073 times ]

Attachment:
image.jpg [ 875.26 KiB | Viewed 8073 times ]

Cant wait to get paint on it! Still have to wire up the counter, get the mag base on get new batteryand wire it up. Liking the black and gray look though.

image.jpg [ 875.26 KiB | Viewed 8073 times ]

image.jpg [ 579.82 KiB | Viewed 8073 times ]


_________________
I may be synthetic, but im not stupid.
Top
 Profile
Reply with quote
 Post subject: Yet some more pulse rifle work!
PostPosted: Mon Oct 21, 2013 12:02 am

Country: United States
Hi All

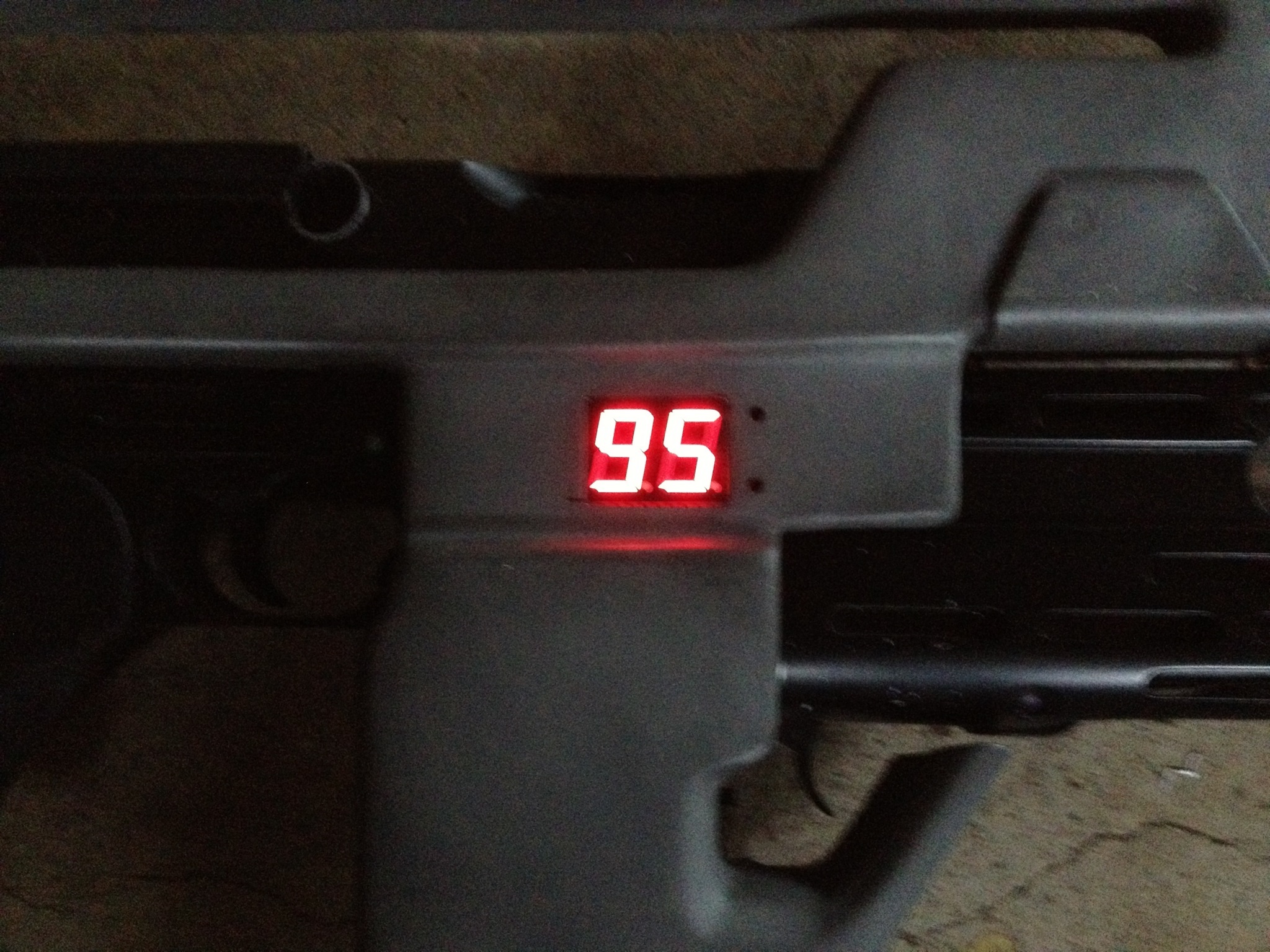

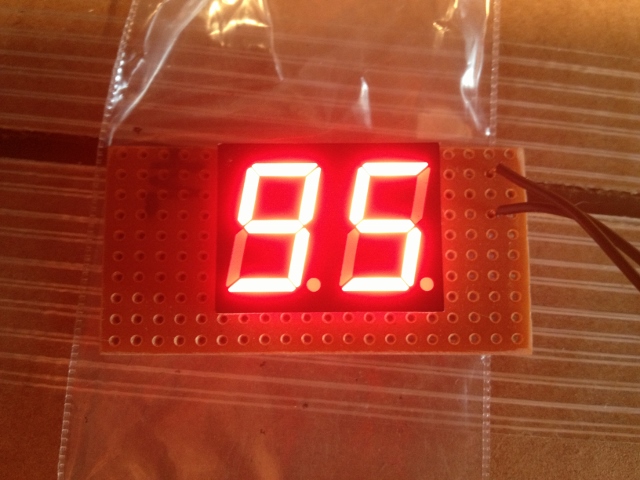

Got a big chunk of work done on the PR today. Installed the counter and switch and im really pleased with the results. The counter came with a double A battery setup but I couldnt find a suitable place to mount it. Matsuo suggested that i use a coin type battery. the following pics are what i did today.
Attachment:
image.jpg [ 1001.77 KiB | Viewed 8026 times ]

Attachment:
image.jpg [ 949.98 KiB | Viewed 8026 times ]

Attachment:
image.jpg [ 731.58 KiB | Viewed 8026 times ]

Attachment:
image.jpg [ 961.01 KiB | Viewed 8026 times ]



Attachment:
image.jpg [ 1.06 MiB | Viewed 8026 times ]

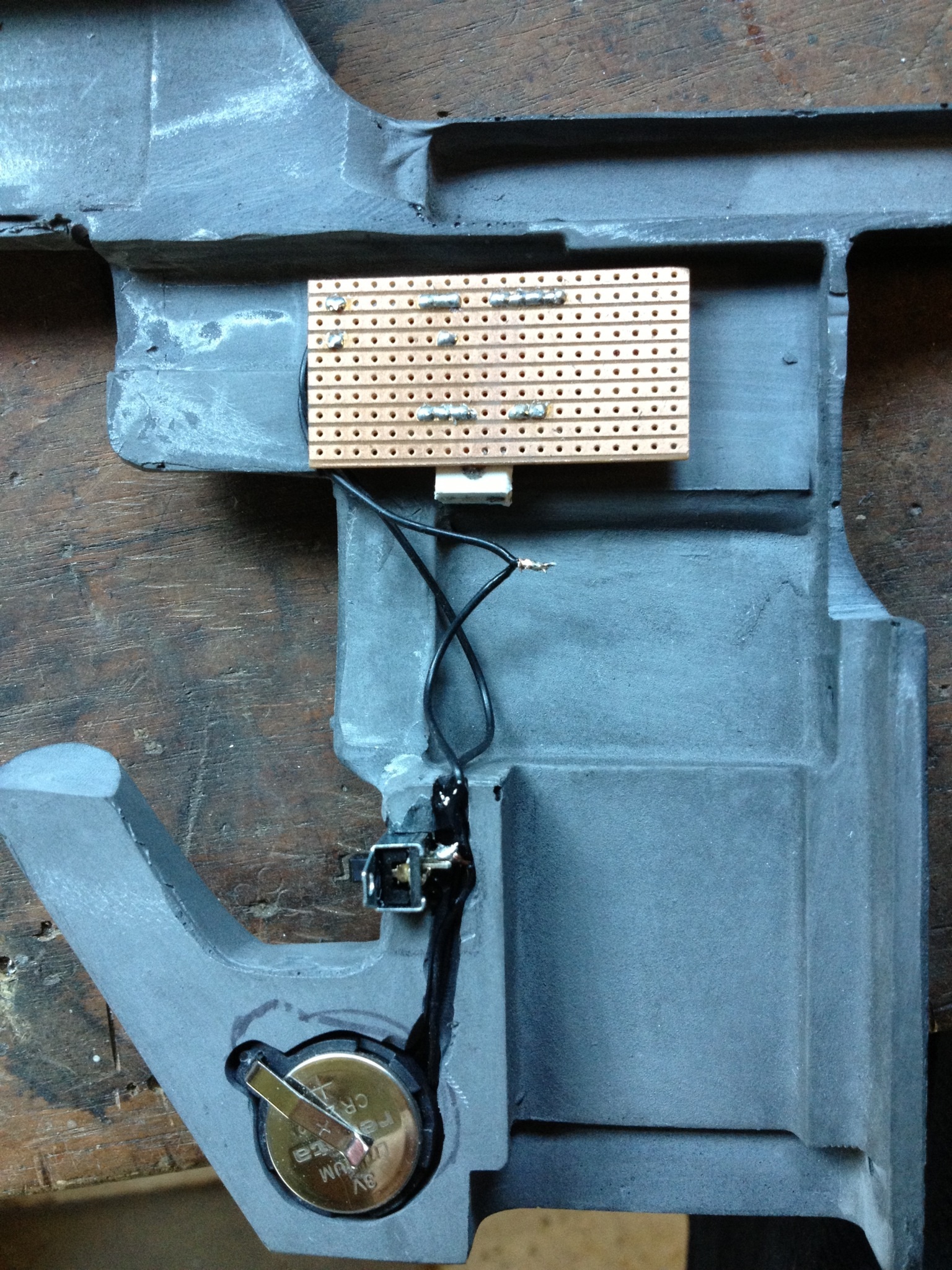

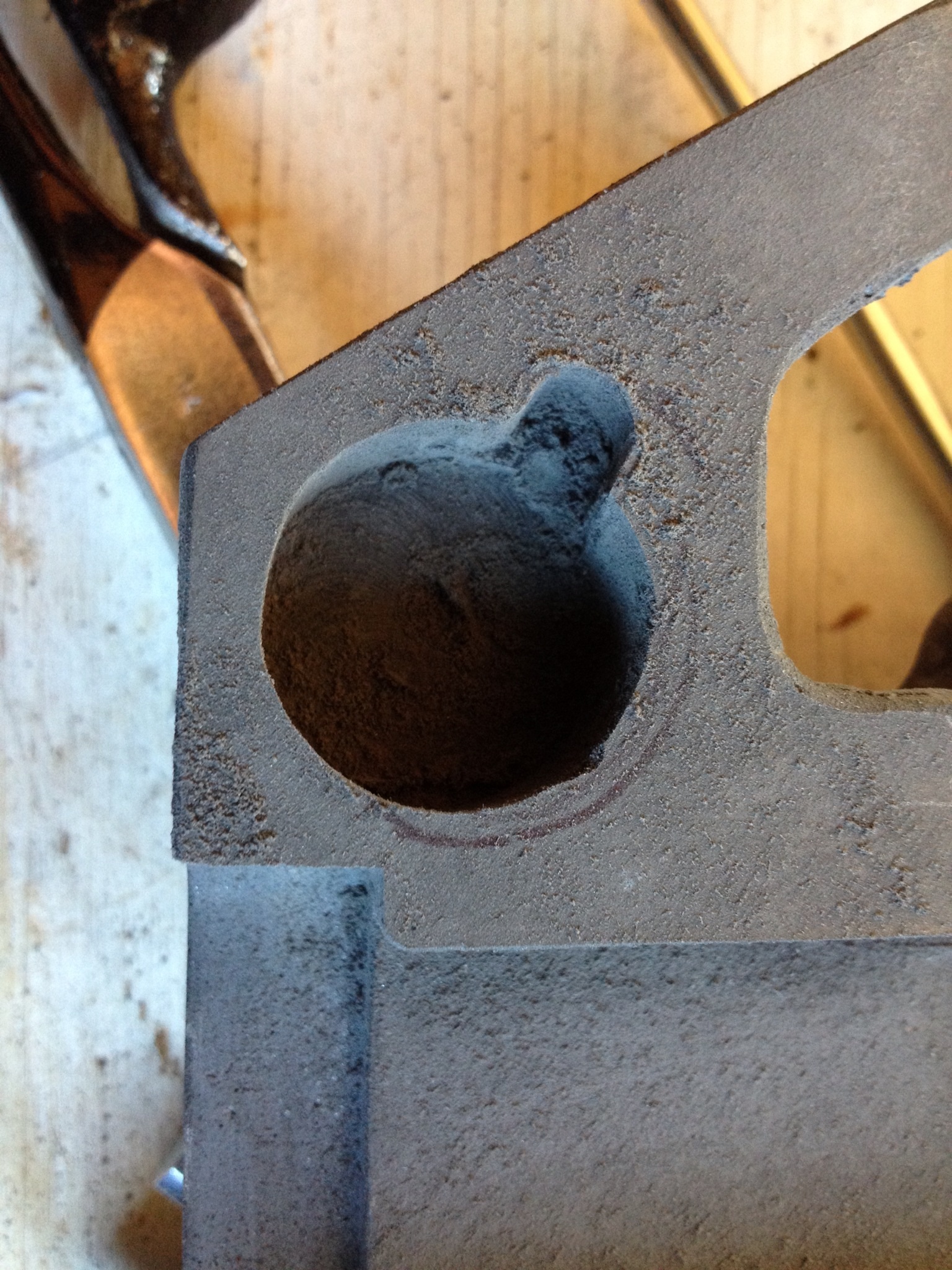

I carved out a spot for the coin battery and a spot for the wires. I made spacers for the counter so it would sit flush with the outside of the shroud. More pics to follow.

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Oct 21, 2013 1:24 am

Country: United States
Hi again
More progress pics!
Attachment:
image.jpg [ 950.56 KiB | Viewed 8022 times ]

Attachment:
image.jpg [ 864.81 KiB | Viewed 8022 times ]

More to come!

image.jpg [ 854.18 KiB | Viewed 8022 times ]


_________________
I may be synthetic, but im not stupid.
Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Oct 21, 2013 10:51 am
User avatar

Location: Kentucky USA
Service Number: A03/TQ1.0.12132E1
Country: United States
Looks great so far! Keep the progress pics coming!

_________________
viewtopic.php?f=4&t=12784
viewtopic.php?f=4&t=12917


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Wed Oct 23, 2013 12:40 am

Country: United States
Thanks! Just need to finish the mag base install and relocate the wires for the battery and ill be ready to paint!

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject: Re: Christmas in August!
PostPosted: Mon Oct 28, 2013 11:42 pm

Country: United States
Hi all

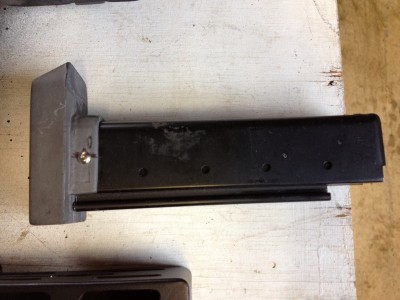

Made further progress this weekend. Cut down the mag and mounted the mag base to the mag

Attachment:
image.jpg [ 810.32 KiB | Viewed 7942 times ]

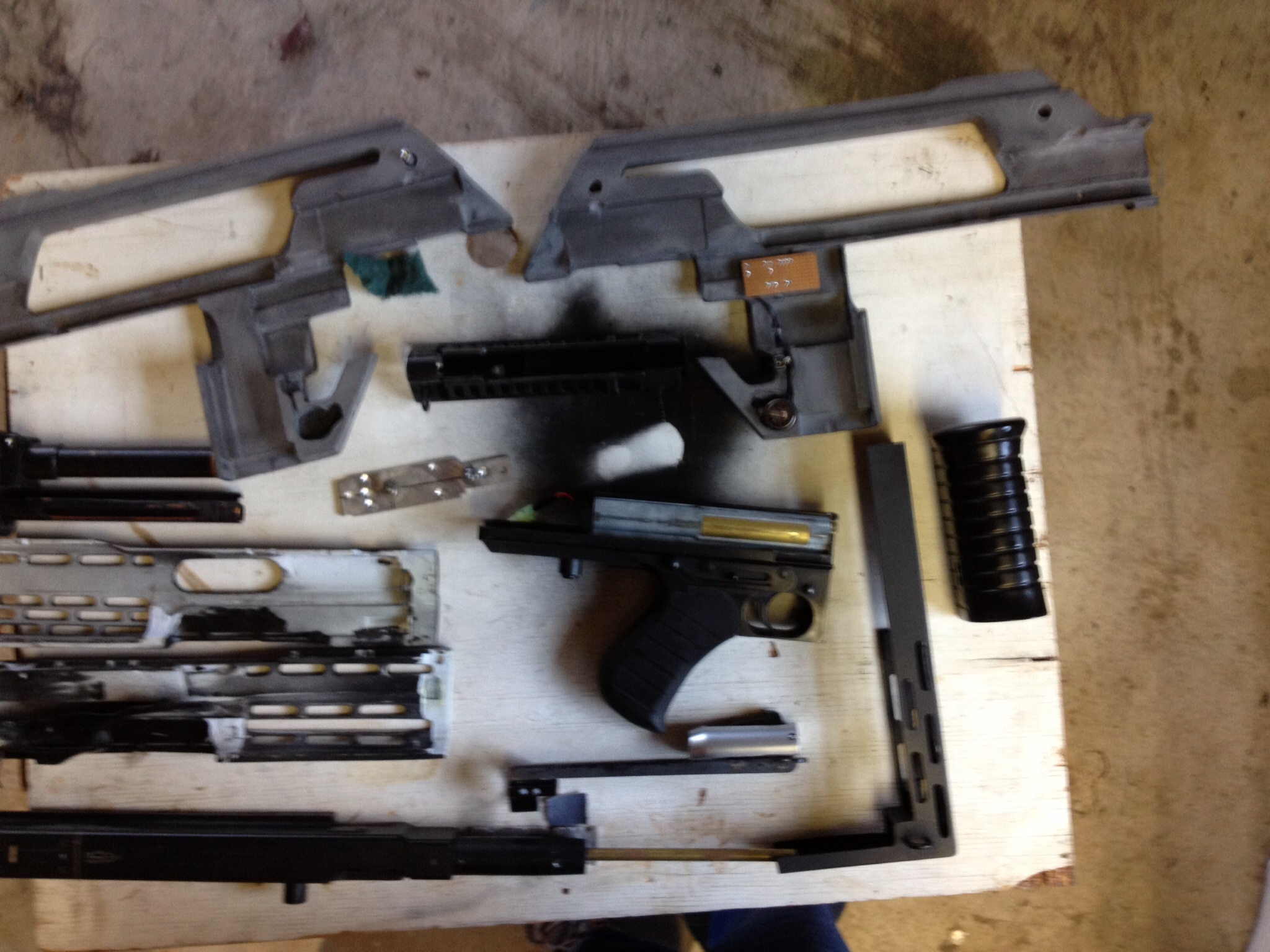

Also did one more final fitting of parts. Then dissasembled the rifle for final sanding then paint!

Attachment:
image.jpg [ 651.83 KiB | Viewed 7942 times ]

one last thing i had to do was put the t shaped peice back into the lower receiver so i can thread a screw into the bottom of the rifle. This is for the metal trim peice that mounts to the rear bottom of the shrouds.
Attachment:
image.jpg [ 788.39 KiB | Viewed 7942 times ]

Attachment:
image.jpg [ 853.38 KiB | Viewed 7942 times ]

The t shaped peice was crazy glued in using gorilla glue crazy glue gel Thats all for now! Post more later

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject: more pulse rifle work
PostPosted: Sat Nov 02, 2013 11:55 pm

Country: United States
Hi again

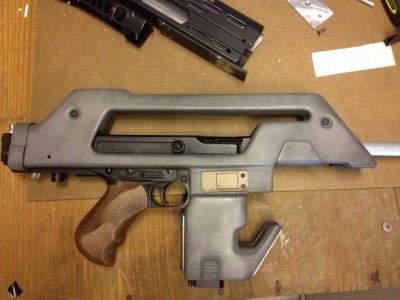

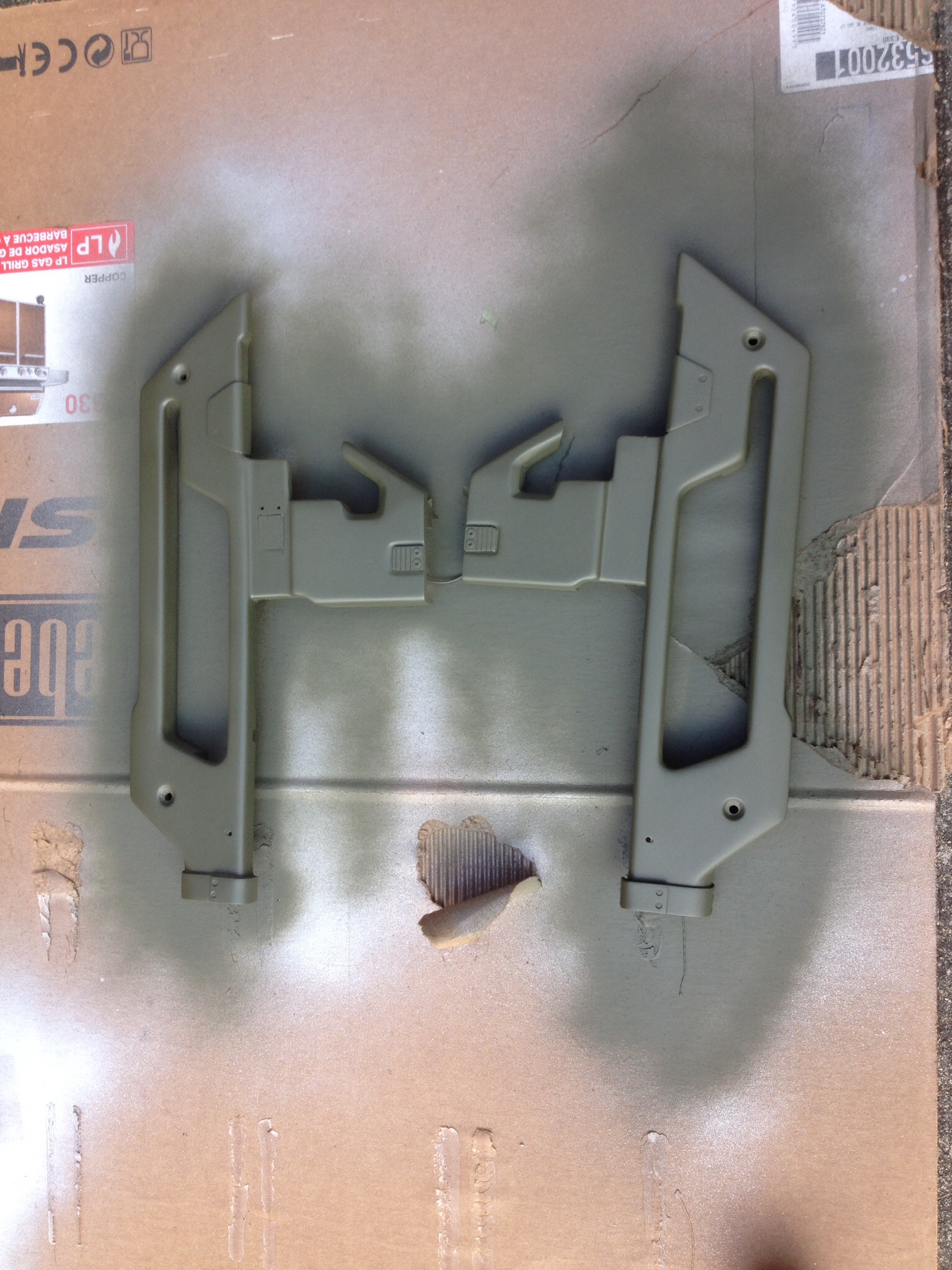

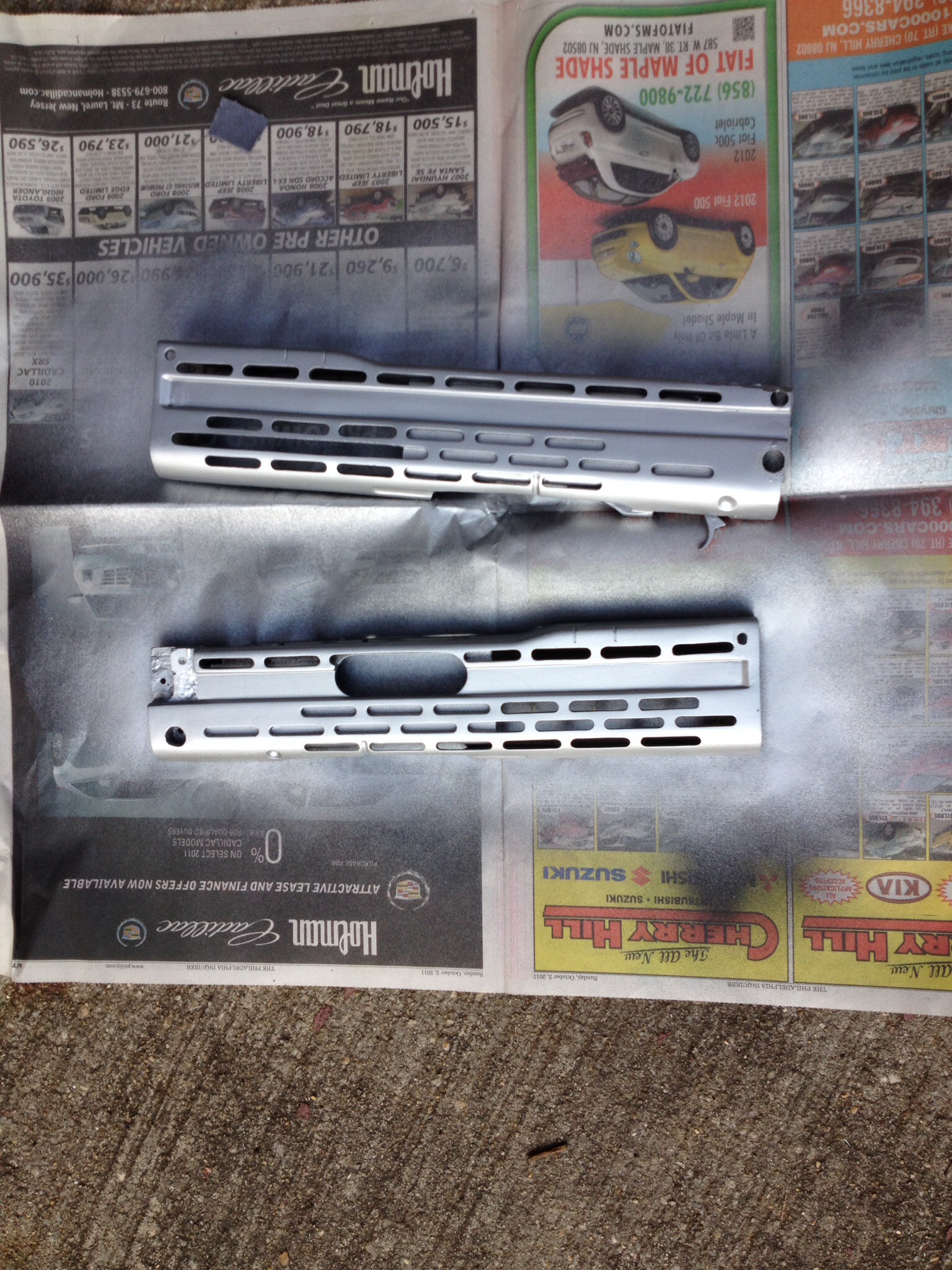

Well never thought this day would come but... Pulse rifle is now painted! I used krylon camo olive paint on the shrouds and the plates and the mag base. The rest of the parts were painted with flat black. I plan to weather the rifle so anything not metal I painted witb dull aluminum first.
Attachment:
image.jpg [ 957.51 KiB | Viewed 7902 times ]

Attachment:
image.jpg [ 1.17 MiB | Viewed 7902 times ]

I also decided that I wanted the counter to light up when i put the mag in. I drilled two holes into the bottom of the shrouds where the resin screws were.
Attachment:
image.jpg [ 822.26 KiB | Viewed 7902 times ]

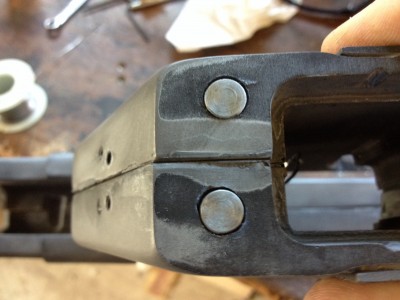

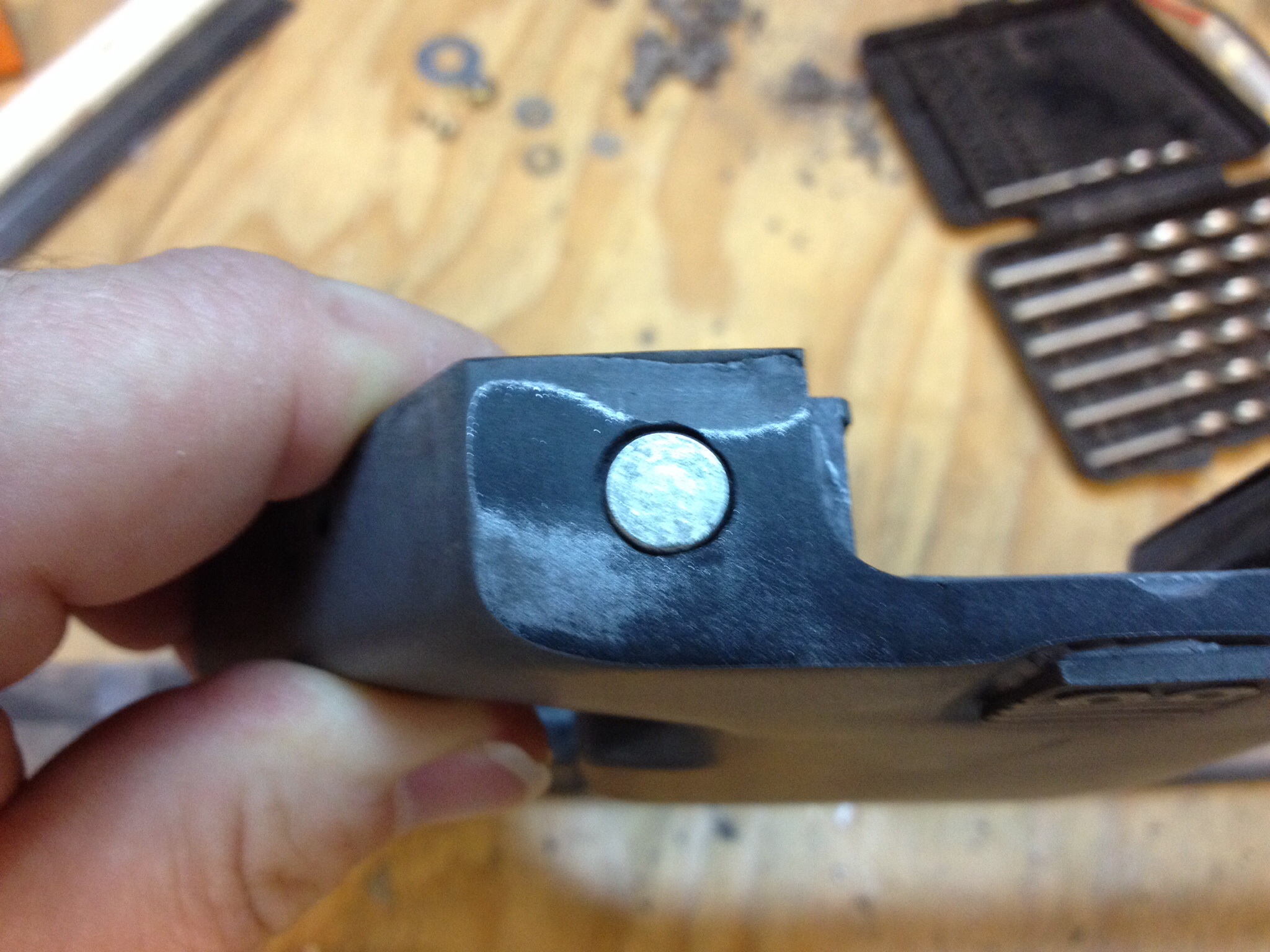

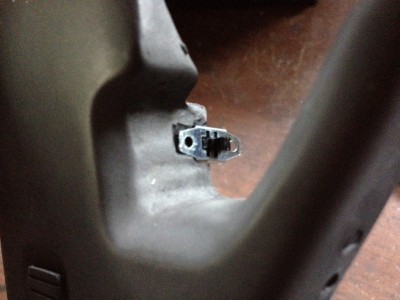

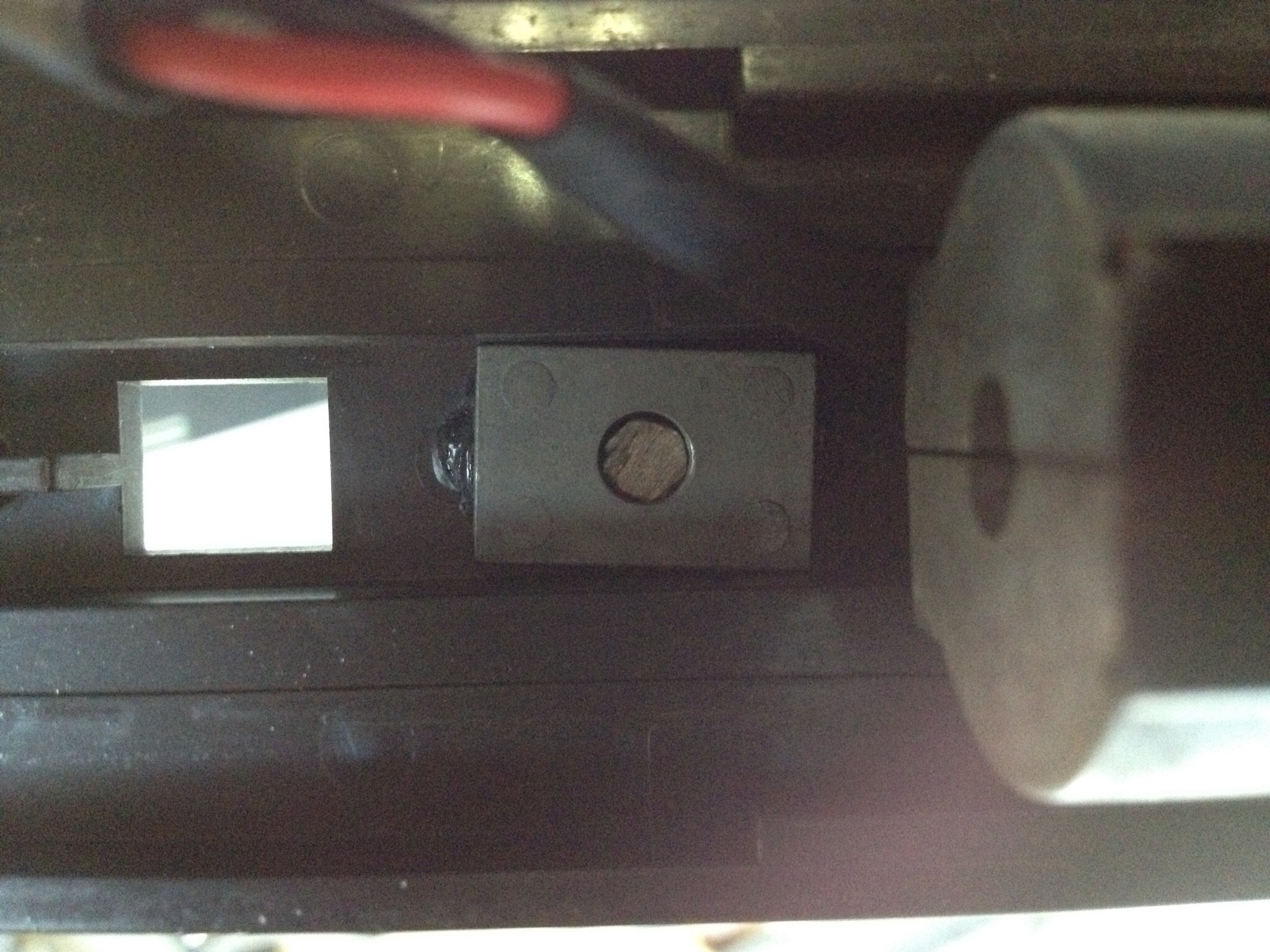

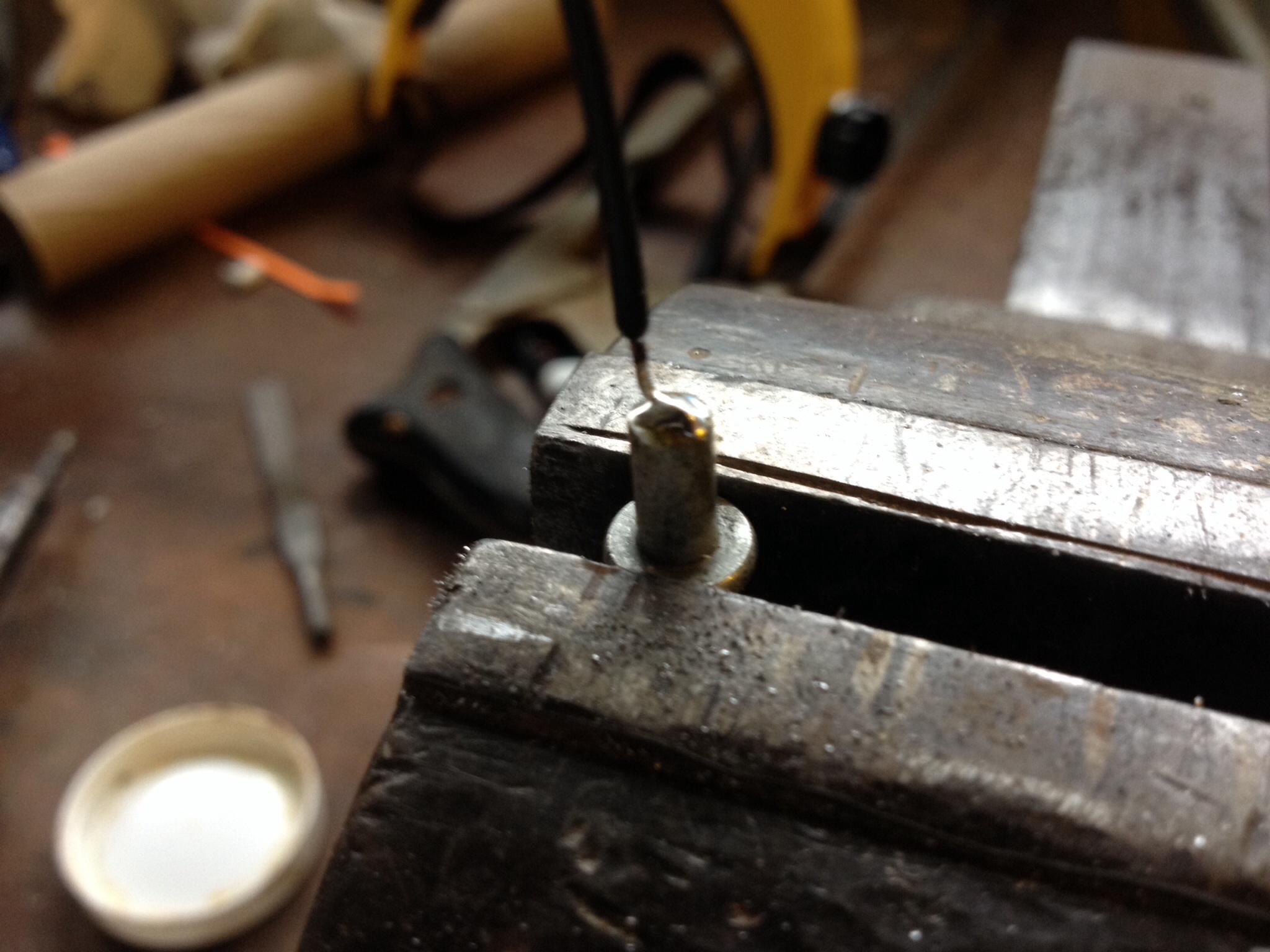

I used a steel rivet as a contact. I solderd a wire to the end of the rivet. I did this for each side.
Attachment:
image.jpg [ 661.48 KiB | Viewed 7902 times ]

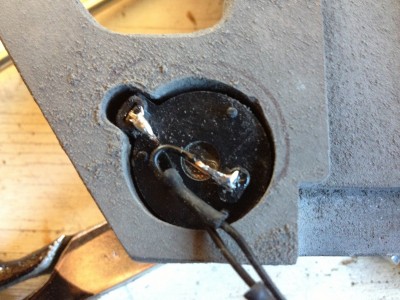

I then super glued the rivets with the wires in the holes. I wired this up so now its an open circut.
Im going to attach a peice of metal to the mag so it makes contact with the rivets and lights up the counter. Once Its in I can turn off the counter with the switch I installed before. Hopefully tomorrow i can reassemble the rifle and get more pics up!

image.jpg [ 850.14 KiB | Viewed 7902 times ]


_________________
I may be synthetic, but im not stupid.
Top
 Profile
Reply with quote
 Post subject: Re: Christmas in August!
PostPosted: Sun Nov 03, 2013 12:19 am
Ready to Rock & Roll!
User avatar

Location: Rochester, Kent, U.K.
Service Number: A08/TQ2.0.72136E1
Country: United Kingdom
Those contact rivets are similar to how it works on the HCG PR. :)

_________________
Steve
Corporal in 69th Regt. 1st Batt. Homer’s Heroes.

"I'd like to die at the age of 80 in my own bed, with a belly full of wine and a girl's mouth around my c**k."


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Nov 03, 2013 12:28 am

Country: United States
Didnt know that but I guess Im on the right track! Ill post more pics tomorrow.

_________________
I may be synthetic, but im not stupid.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Jun 25, 2020 6:41 am
GarageGeek
User avatar

Country: United States
NECROPOST

really good build reference. I'm not on this level yet
