Ah the Racal Minilite: the favorite headset of Captain Solo, Captain Dallas, Corporal Hicks, and the bad guys in Moonraker.

I love the look, but I couldn't really justify the price. So I decided to try to make my own! Here then is a quick tutorial on how I'm going about it.

To start, here's a thread with photos of the actual headset for reference:

viewtopic.php?f=3&t=6433&p=101298&hilit=racal#p101298

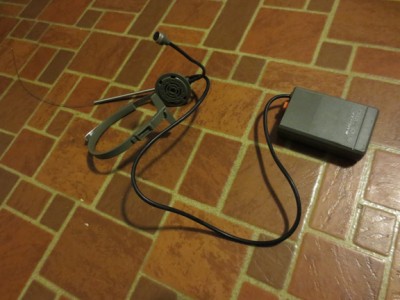

I dug out an old children's walkie-talkie headset to scrounge for a few bits:

Attachment:
spaceranger.jpg [ 112.91 KiB | Viewed 6397 times ]


Then I looked for some items that had similar shapes to the Minilite's main body and microphone:

Attachment:
parts.jpg [ 411.97 KiB | Viewed 6397 times ]


This refill cartige gave me the basic shape for the body, and a combination of pen caps and a bit from an old light make up the microphone connection.

Attachment:
testfit.jpg [ 313.13 KiB | Viewed 6397 times ]

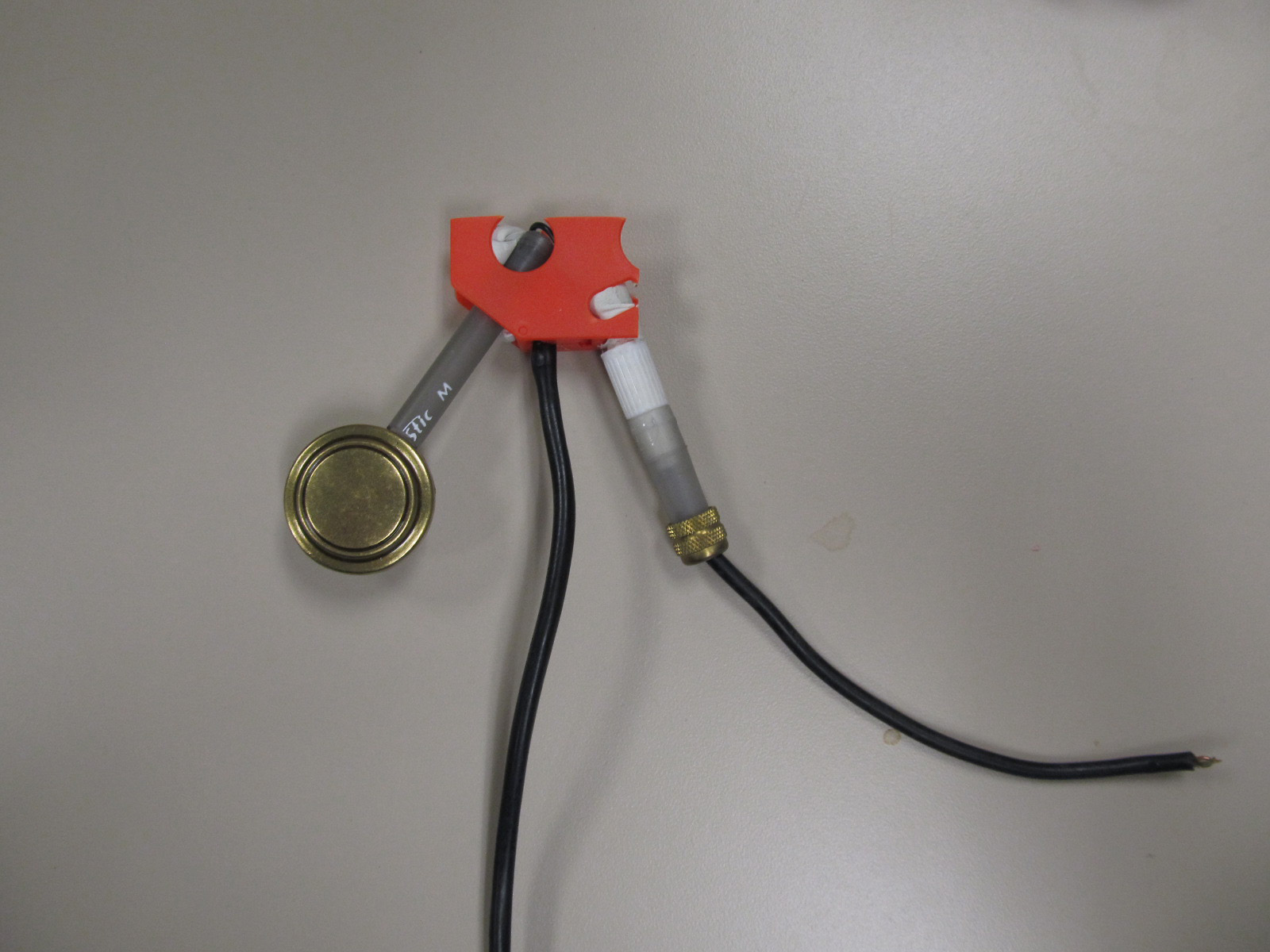

A small drawer pull and a length of pen tubing make the ear piece. The wire and microphone from the walkie-talkie are in place, and the refill cartridge has been cut down to size (some sticky tac is temporarily holding it all together here).

Attachment:
steelstik.jpg [ 424.67 KiB | Viewed 6397 times ]

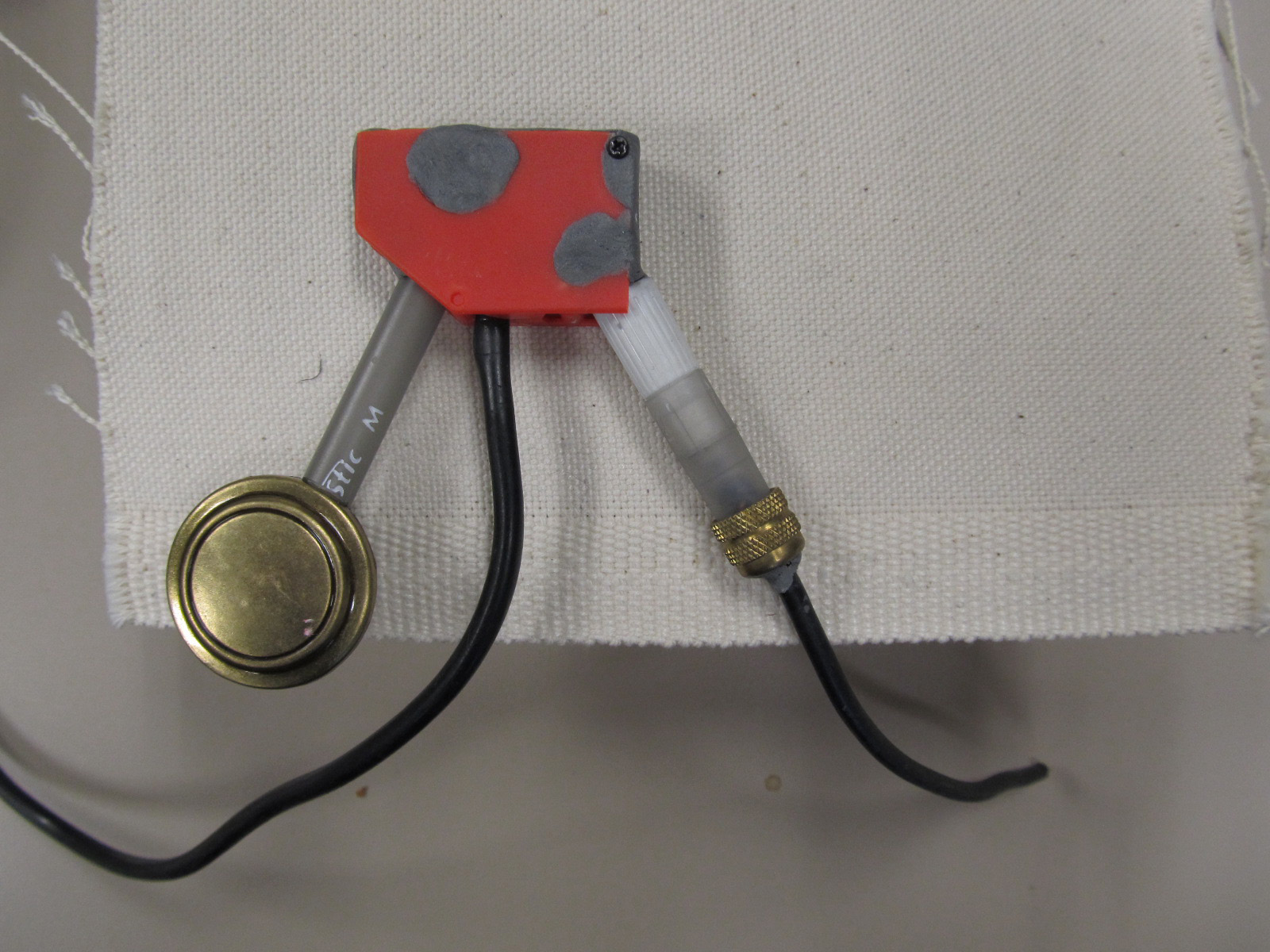

Once I was happy with the placement I got out the Steelstik (metal infused plumbing repair putty) and filled it all in.

Attachment:
IMG_1717.JPG [ 350.63 KiB | Viewed 6397 times ]

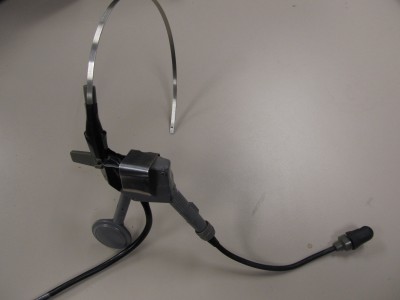

A coat of primer unifies the whole thing. I've temporarily attached it to a headband to make sure it fits; obviously the black electrical tape isn't permanent!

The metal clip is from an old tape measure and it just resting on it at the moment. I want to get a coat of paint on it before I attach it for real.

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Dec 20, 2012 7:40 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Attachment:
tryingon.jpg [ 573.75 KiB | Viewed 6396 times ]


Here's some shots of it on me!

Still a bunch of work to do including the "wings" on either side, some subtle detailing on the main body and a coat of paint.

(The microphone cap is a modified eye dropper bulb).

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: DIY: $10 racal minilite headset
PostPosted: Thu Dec 20, 2012 8:14 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
Ha! Awesome. I may need to try my hand at that build myself!
Probably pretty soon in fact. I'm wrapping up projects left and right and you know how idle hands are...

_________________
https://www.amazon.com/photos/share/dlB ... 8C8pu8GPyw


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Dec 20, 2012 8:15 pm
Mobile Mayhem
User avatar

Location: Rapid View, Saskatchewan
Service Number: A10/TQ1.0.32157E1
Country: Canada
Fantastic work!!! I love your tutorials!

_________________
Cpl. Melissa L. Klassen, ALG :delta:
U.A.C.M. Executive Officer

Ask about your Armour stencils/Nostromo stencils - Worldwide shipping! Send me a Private Message


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Dec 21, 2012 12:50 am
95.2.00 - Adios Man!
User avatar

Location: Wirral, Merseyside.
Service Number: A05/TQ1.0.02160E1
Country: United Kingdom
Wow,

Really Impressed!

-Callum


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Dec 21, 2012 1:46 am
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom
Your not going to like me......

Isn't it the wrong way around? (covers right ear instead of the left one?)

Friggin' awesome all the same, great build!!!

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject: Re:
PostPosted: Fri Dec 21, 2012 2:04 am
Galaxy-hopping garbage man

Country: United Kingdom
88reaper88 wrote:
Isn't it the wrong way around?

The original headsets come with two earpieces and can be swapped around for right or left side use.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Dec 21, 2012 2:24 am
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom
Ah cool, didn't know that :)

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Dec 21, 2012 2:53 am
User avatar

Location: long island , NY
Country: United States
Very cool!

_________________
Cpl Matthew Rendar. M56 smart gun operator. 2nd bat 7th colonial marines "Rendars Raiders "


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Dec 21, 2012 3:45 am
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
The little metal clip (that isn't attached well in my photos) is mirrored on the reverse side, so indeed it can be worn on either side! Our marines favor the left side, but Tentacle Chris wears it on the right, and if it's good enough for him then by God it's good enough for me!

I should also mention that none of the materials I've listed are definitive, they're just what I had on hand. I'd love to see some folks blow this build out of the water with even more accurate (yet thrifty) options.

Thanks for having a look!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Dec 21, 2012 10:47 am
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Jan 17, 2013 7:30 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Attachment:
minilite.jpg [ 1.54 MiB | Viewed 6235 times ]

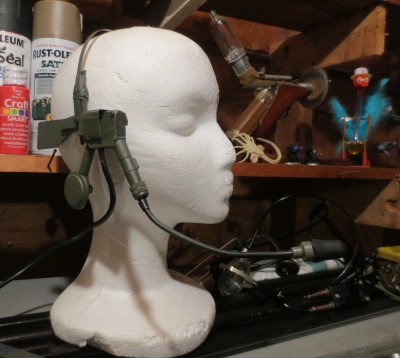

Almost done with this. I just need to get the headband attached more permanently.

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Jan 17, 2013 8:21 pm
Dirty Bird
User avatar

Location: San Diego CA
Service Number: A07/TQ0.0.82154E1
Country: United States
looks great so far.
cant wait to see the next update.

_________________
SGT Chris Kraemer "BIRD"
S/N: A07/TQ0.0.82154G1 Sgt Kraemer



Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Jan 17, 2013 8:28 pm
Victor
User avatar

Location: Portsmouth, UK
Service Number: A12/TQ1.0.22862E1
Country: United Kingdom
Wow! That looks great. Very impressive.

_________________
SSgt Vicky "Mole" Chivers VAS - A12/TQ1.0.22862E1
CO - UKCM Airborne Division
69th Regt. 1st Batt. Homer’s Heroes


"You know, you blow up one sun and suddenly everyone expects you to walk on water."


Top
 Profile
Reply with quote
 Post subject: Re: DIY: $10 racal minilite headset
PostPosted: Thu Jan 17, 2013 10:27 pm
Duke Bronson
User avatar

Location: Ottawa, ON Active Duty: UAS Macdonald
Service Number: A10/TQ1.0.92147E1
Country: Canada
Clever.

_________________
Sergeant Major Dom "SharP" Baldwin MVM, ALG, VS, CMD - Sergeant major, 1st Battalion UACM


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Jan 18, 2013 1:17 am
DON'T PANIC
User avatar

Location: Bravo Company
Service Number: A04/TQ1.0.82152E1
Country: United States
Well done! I was turning my Racal over in my hands a while ago, and was thinking about how easy it would be to reproduce them after expending a little initial effort. Maybe someday.

_________________
Sir, does this mean that Ann Margret's not coming?


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Oct 26, 2015 10:39 am
Giraffes. Talk to me.
User avatar

Location: Nottingham
Service Number: A07/TQ0.0.52137E1
Country: United Kingdom
This is damn handy, I've been looking at building a headset as I cant seem to get my hands on a minilite

_________________
Cpl. JK "Hybrid" Knight. A07/TQ0.0.52137E1
XO HMS Valhalla; 13th Regt. 1st Batt. "Freebooters" - USCM Flight School "Bus drivers".
"I'm not saying it was Aliens but...."


Top
 Profile
Reply with quote
 Post subject: Re: DIY: $10 racal minilite headset
PostPosted: Tue Oct 27, 2015 12:51 am
Duke Bronson
User avatar

Location: Ottawa, ON Active Duty: UAS Macdonald
Service Number: A10/TQ1.0.92147E1
Country: Canada
You know that Spat sells a kit, right?
http://www.spatcave.com/headset.htm

_________________
Sergeant Major Dom "SharP" Baldwin MVM, ALG, VS, CMD - Sergeant major, 1st Battalion UACM


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Oct 27, 2015 1:32 pm
Giraffes. Talk to me.
User avatar

Location: Nottingham
Service Number: A07/TQ0.0.52137E1
Country: United Kingdom
I'd seen it, I was having an issue with it being $54 - but I guess it isn't too bad once translated from funny money :)

_________________
Cpl. JK "Hybrid" Knight. A07/TQ0.0.52137E1
XO HMS Valhalla; 13th Regt. 1st Batt. "Freebooters" - USCM Flight School "Bus drivers".
"I'm not saying it was Aliens but...."


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Oct 27, 2015 1:54 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Chef does one as well (more in your neck of the woods) with some nice metal components to boot. When I made this tutorial there weren't any on the market. There also weren't any good size references so the one in these pictures is freakishly large!

_________________

:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Oct 27, 2015 3:27 pm
Giraffes. Talk to me.
User avatar

Location: Nottingham
Service Number: A07/TQ0.0.52137E1
Country: United Kingdom
Nods, first person I went to. He's got his hands full at the moment.

_________________
Cpl. JK "Hybrid" Knight. A07/TQ0.0.52137E1
XO HMS Valhalla; 13th Regt. 1st Batt. "Freebooters" - USCM Flight School "Bus drivers".
"I'm not saying it was Aliens but...."
