Robin wrote:
seven wrote:
This is pure inspiration. Can you recommend a way to learn 3D design like this?

Blender is a great modelling tool, and it's open source and free. There are tons of tutorials for it out there.

https://www.youtube.com/watch?v=TPrnSACiTJ4 is a famous one that you follow along with while it teaches you. But it covers a ton of things you don't actually need to know, because luckily for us, if we're just modelling something to 3d print, there are tons of things we don't have to worry about (like texturing/UVs/rendering/etc). So we'd only have to learn part 1 of this 4 part series.

In the end I watched this other guy's tutorials, which were more focused on modelling shapes vertex-by-vertex. I think I only followed along with a couple of his episodes before I felt I was being productive: https://www.youtube.com/watch?v=Hf2esGA7vCc

As a bonus, the Pulse Rifle isn't actually that complex (compared to a human, for instance). With some good reference images as the background behind your modelling, it's a bit like tracing.

Spend a couple of hours on it, and see how you go. I wasn't expecting to enjoy it when I started, but in the end I loved it.



And I would add make sure you have a beefy video card and or processor. It helps on rendering and load times substantially.

_________________
The impossible takes a while longer and goes over budget too...


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Mon Aug 23, 2021 7:17 pm

Country: United States
I've been slowly getting back to working on the fixes to my model. The first thing I wanted to do was to try and get the dimensions more accurate, and to do that I wanted a set of reference pictures. Now that I've got one of the hollywood collectibles PRs, I thought I'd use it.

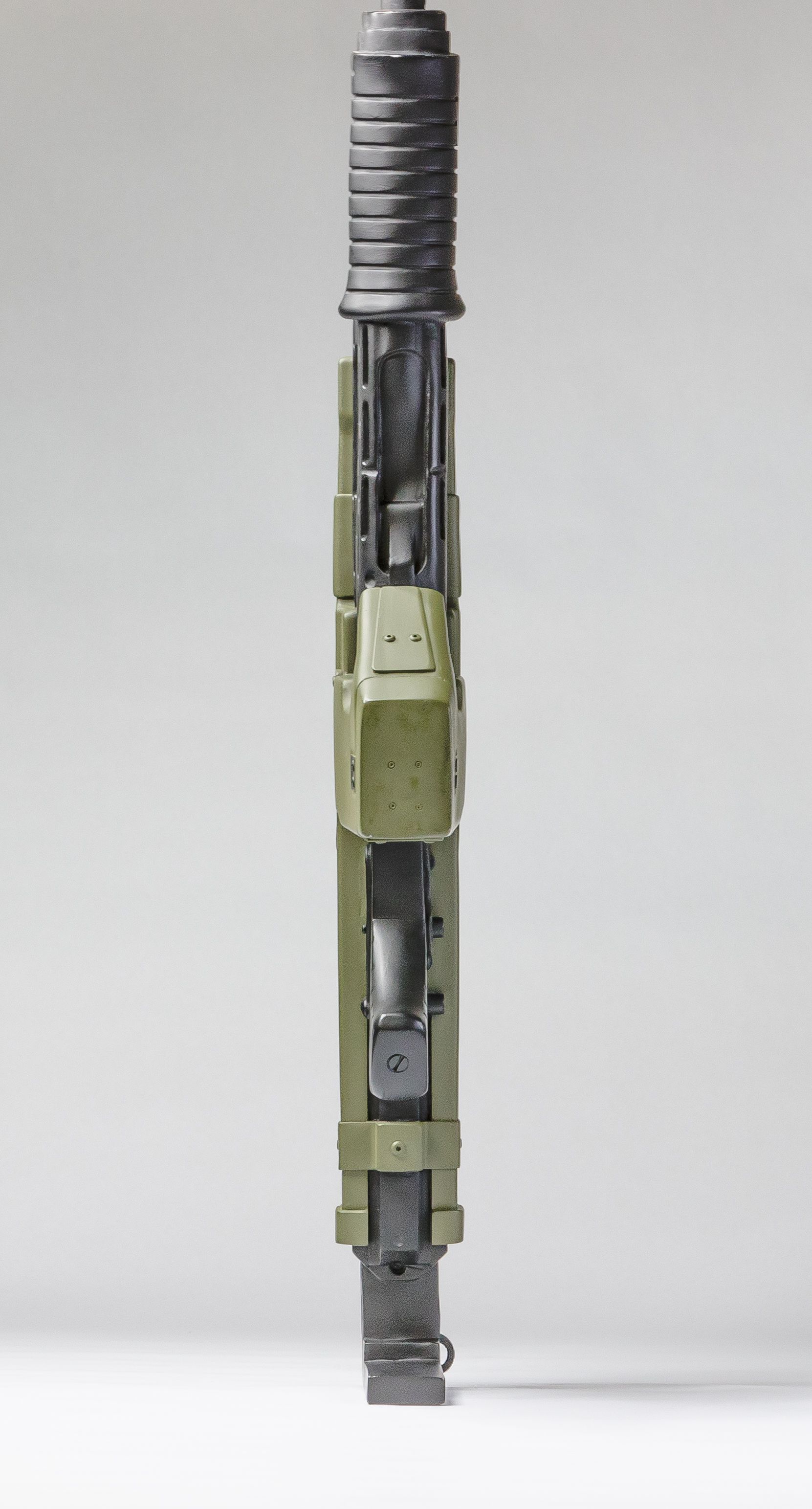

I used a zoom lens & a lighting rig to try and get some nice orthogonol photos of it from all sides. Since I couldn't really find a set of equivalent photos when I started out, I thought maybe they'll be useful for others too, so I'm posting them here. A couple of the angles could be better, but it should be enough to work off. The top/bottom shots looked clipped off at the top, but I just trimmed out my finger.

Attachment:
Ref-Side-Right.jpg [ 685.69 KiB | Viewed 14974 times ]

Attachment:
Ref-Side-Left.jpg [ 476.5 KiB | Viewed 14974 times ]

Attachment:
Ref-Top.jpg [ 202.19 KiB | Viewed 14974 times ]

Attachment:
Ref-Bottom.jpg [ 387.53 KiB | Viewed 14974 times ]

Attachment:
Ref-Front.jpg [ 144.36 KiB | Viewed 14974 times ]

Attachment:
Ref-Rear.jpg [ 105.5 KiB | Viewed 14974 times ]


I'm going to try and use Reality Capture to get a full 3d scan of it too. If I get anything useful out of that, I'll also post it here.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Aug 24, 2021 12:47 pm
User avatar

Country: Australia
Nice photos, there's not too many reference shots like that.
What were these replicas pulled from originally ? or were they a sculpt - interested as I love how un-symmetrical it is ...
I'm not sure a scan would be a great staring point, given how wonky the original source is. It only may be useful to get the overall height and length dimensions, which you tend to lose with photo lens bend.
The m41A is not to hard to work out though, as Thompson measurements are on the net, just dimension the photos from that.

_________________
FB:
https://www.facebook.com/99rivingtonst

Cults:
https://cults3d.com/en/users/PaulsBoutique/creations
