 Post subject: Re: New project M240
PostPosted: Sat Jun 04, 2016 5:58 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom

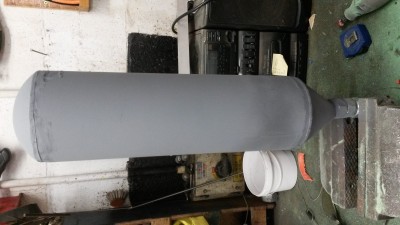

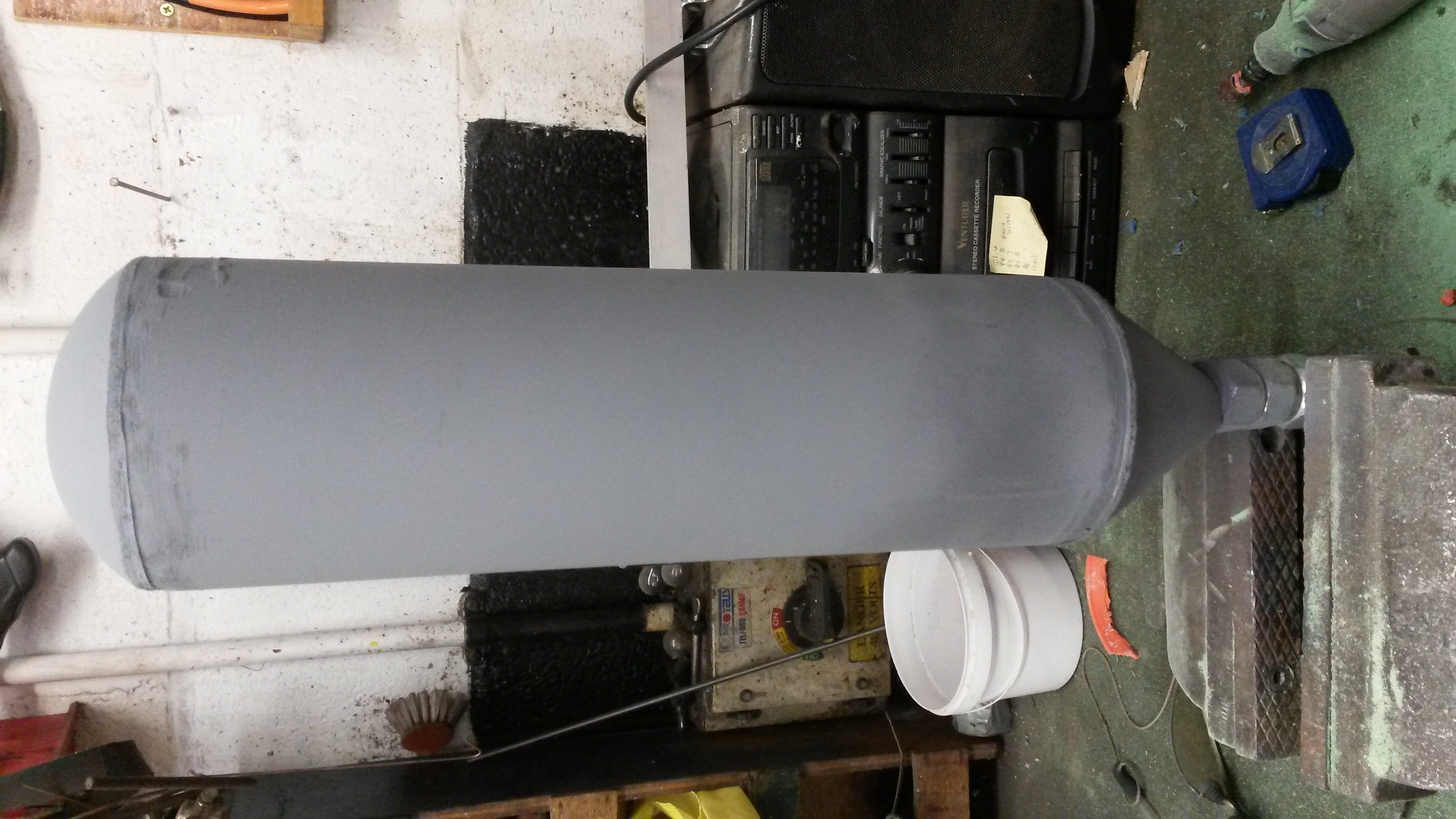

Wrong topic but i mentioned it on my last post so i figured i'd put her up for review. The section around the barrel needs revising as it doesn't go far enough into the body of the gun but apart from that don't think its too far off on dimensions just a long way off being finished!!! :D

20151024_220327.jpg [ 1.57 MiB | Viewed 5941 times ]

Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Jun 04, 2016 6:57 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Bloody hell! That's exactly what I'm hoping to do too. Did you have any guide to go by Shelby?

_________________
:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Sat Jun 04, 2016 8:50 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
No really had trouble finding anything at all, so had to scale it off my MG53 (as the front of the gun protrudes you can use the known distances on the gun to get most of the sizes of the rest of it). There's some really good side shots of a propstore one but unfortunatly it's taken a battering and most of the detail is missing but you can get the basic shape. There's some really good angle shots on the DVD special edition and there's always screen shots for the sighting system and paint. It's taken a lot longer than it should this one mostly due to the re-design from static display to motion activated nerf gun and it's pretty huge but the electrics are all sorted now and this is a bit of an old photo, the top section is now all in, so its moved onto the next project to do list!. :D


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Jun 07, 2016 3:14 am
Wild Brew
User avatar

Location: PNW
Service Number: A11/TQ2.0.72140G1
Country: United States
Shelby, how thick is your plywood core for your M240?

_________________
SSGT "Giggles" W.A.L.
SN A11/TQ2.0.72140G1
USS Columbia, Heavy Weapons Section
"If you are going to die, die with a real weapon. Not a little sissy gun like that. "


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Tue Jun 07, 2016 4:46 am
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
It's 24mm, 2 x 12mm glued together.


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Tue Jun 07, 2016 11:43 am
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
Should really add that although 24mm is great for the main body, you have to be a little creative at the front and the back with a filler this thick as the handguard and the rear AR don't like it! Read lots of work for your dremel


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Tue Jun 07, 2016 5:02 pm
Wild Brew
User avatar

Location: PNW
Service Number: A11/TQ2.0.72140G1
Country: United States
Yeah. I get that. I was messing around with plywood and I was getting about an inch for thickness for the main body to look right. That thickness of approx 24mm might be too thick for a pure screen accurate grip and trigger, but any thinner and I'm not sure about durability after casting mine...

_________________
SSGT "Giggles" W.A.L.
SN A11/TQ2.0.72140G1
USS Columbia, Heavy Weapons Section
"If you are going to die, die with a real weapon. Not a little sissy gun like that. "


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Tue Jun 07, 2016 6:00 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
Yep 24mm looks right and fits retrogarde's 3" at the thickest point post on his build pages. As for whats right or wrong with the grip/trigger i reckon as long as you're happy who's to say it's wrong!


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Mon Jun 20, 2016 7:47 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom

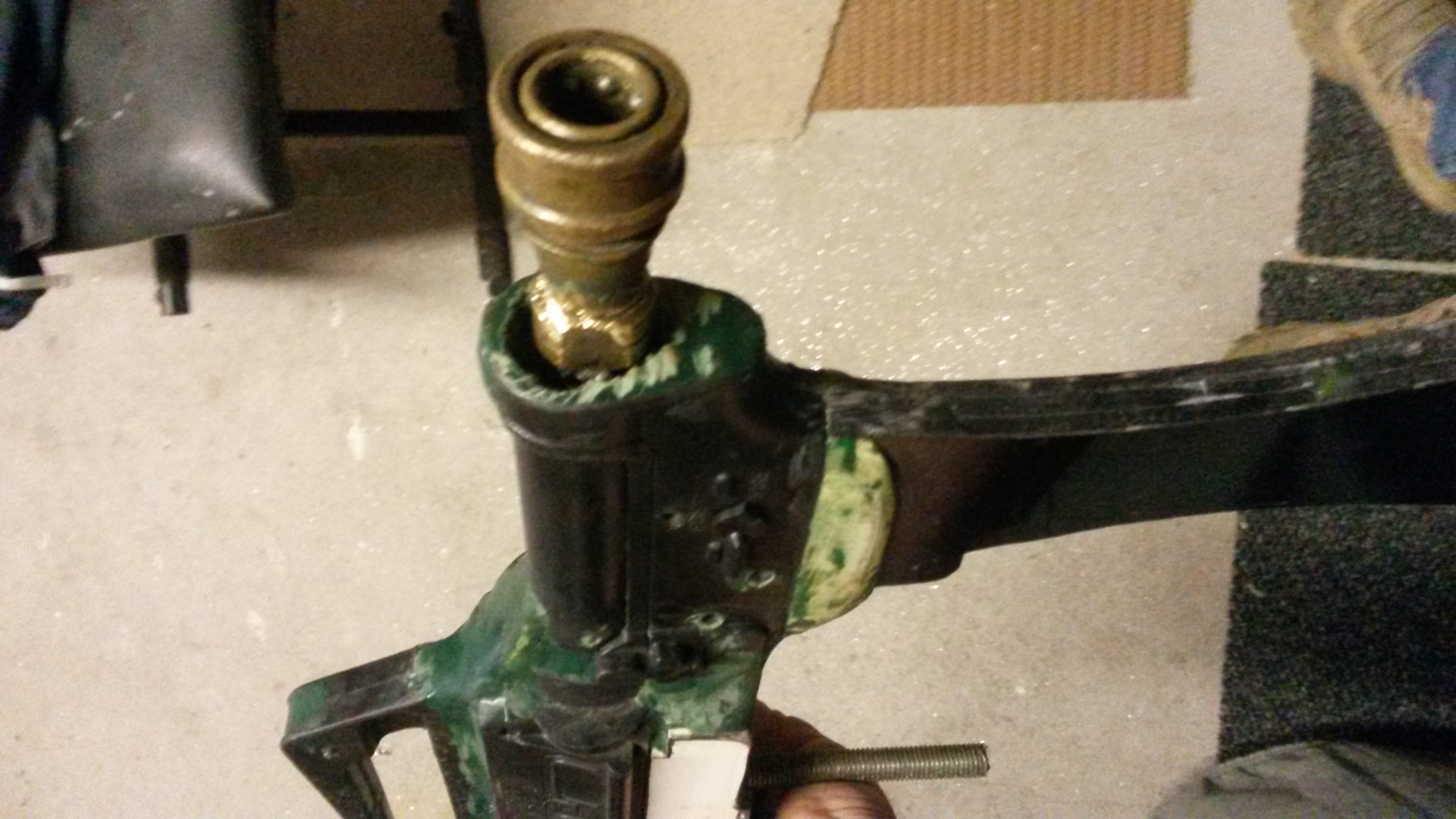

Ok as you could prob see i rushed the back end a little and their was a few areas i wasn't happy with. Before the connector was too far into the body of the gun so had to do some hacking to the rear AR to get to the connector, but now i've wound it back out on its screw thread and think i have it set to the correct distance. The screws that wasn't bedded in correctly have been removed all the filler and glue have set so the units solid without them, so they won't be going back in, i'm just going to fill the holes and fill the area around the connector to bed it in as per the original :D

20160617_134614.jpg [ 1.31 MiB | Viewed 5799 times ]

20160617_134629.jpg [ 1.49 MiB | Viewed 5799 times ]

Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Tue Jun 28, 2016 6:31 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
Hiya folks still some details to add like the pin for the trigger and some small details to add to the nozzle and distressing the whole thing, but nearly there i had to paint it to keep me plugging on :D

20160626_103215.jpg [ 1.81 MiB | Viewed 5764 times ]

20160623_115253.jpg [ 1.67 MiB | Viewed 5764 times ]

20160623_115237.jpg [ 1.93 MiB | Viewed 5764 times ]

Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Jun 28, 2016 8:44 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
That looks great!

_________________
:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Wed Jun 29, 2016 6:21 am
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
Cheers Retrogarde, couldn't have done it without those dimensions you gave me, turned out to be a fun build :D. Hopefully finishing her off this week.


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Thu Jun 30, 2016 9:14 am
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom

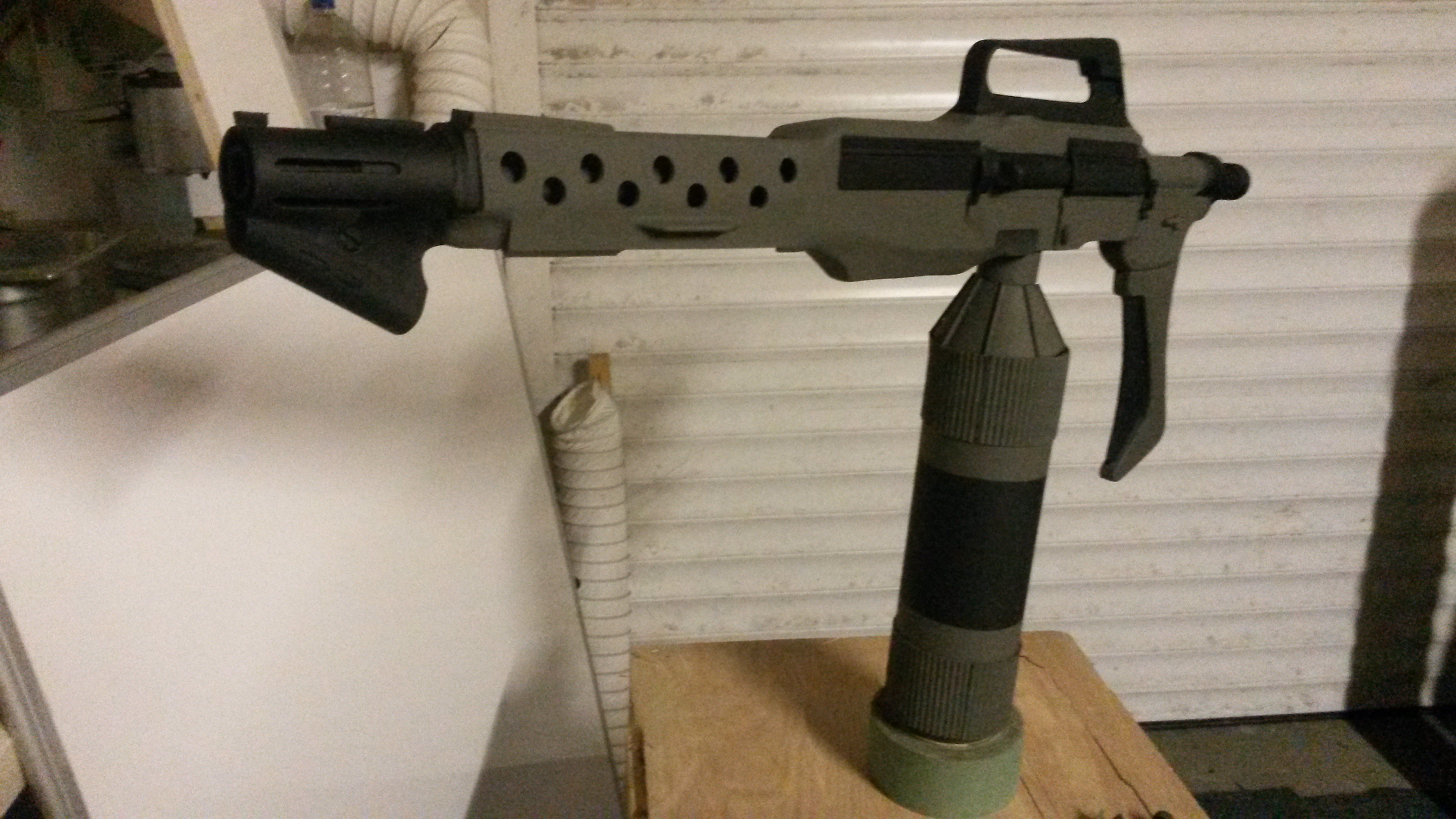

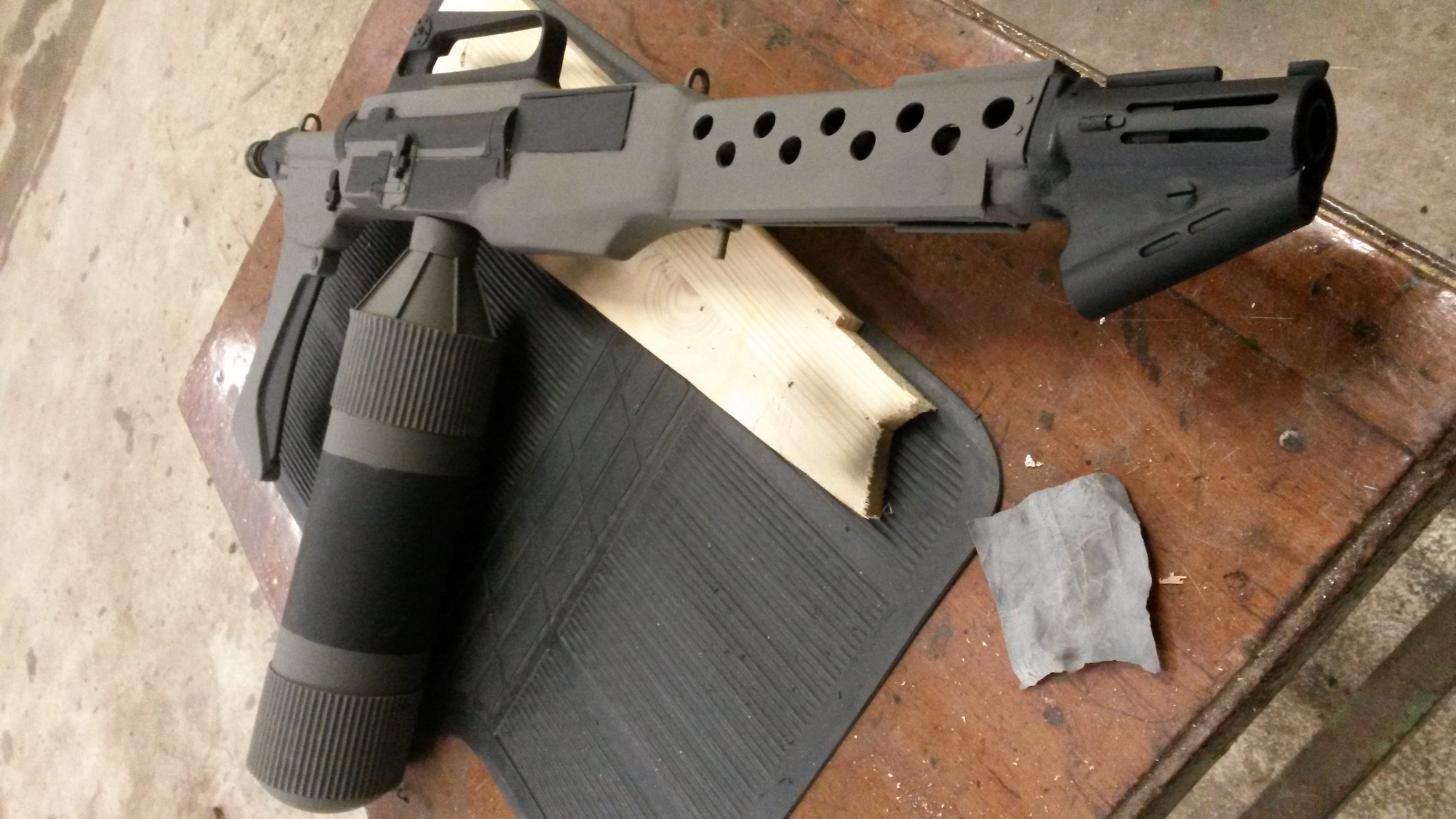

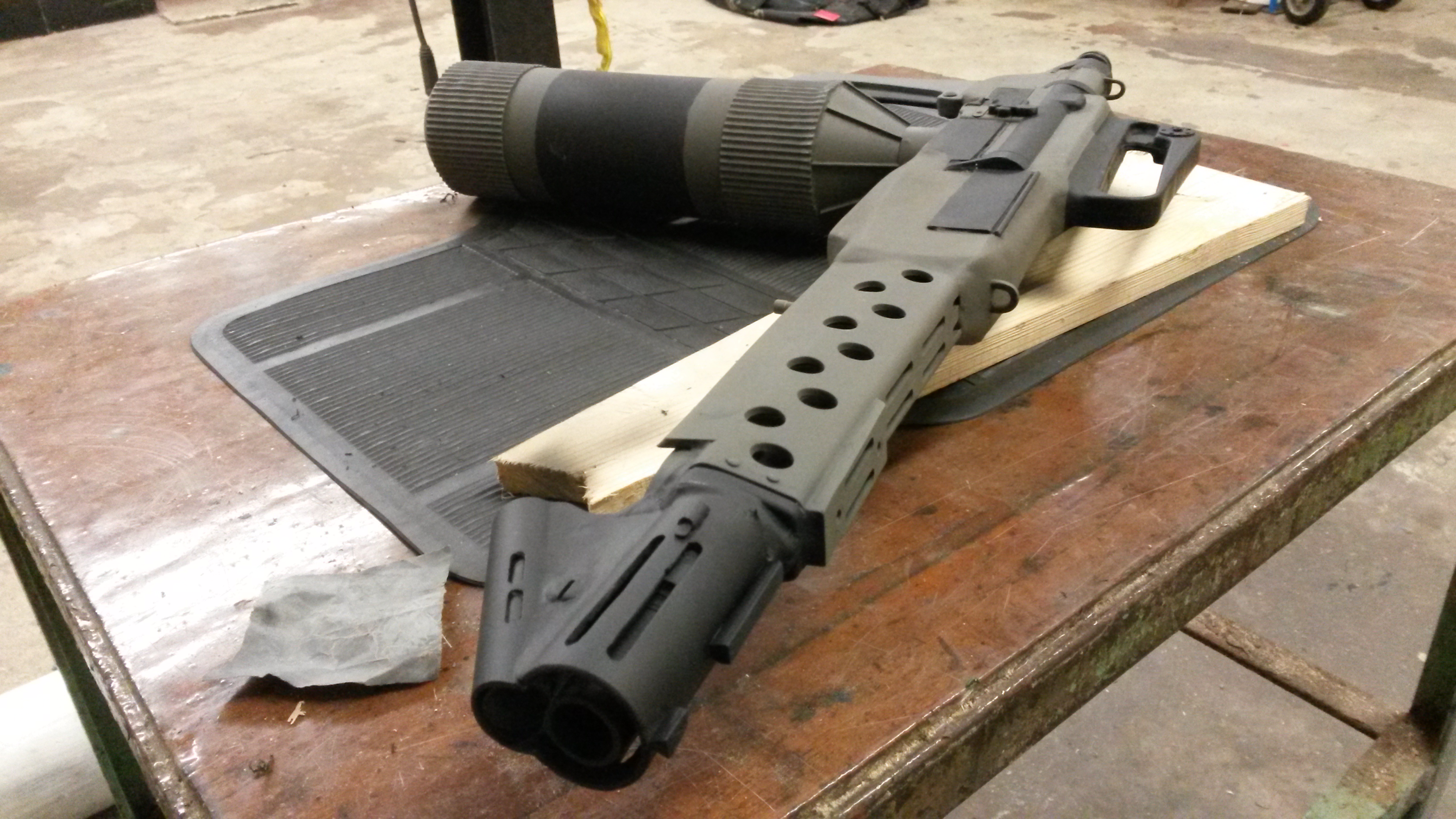

The build is now complete just needs a little weathering.

20160629_132847.jpg [ 1.58 MiB | Viewed 5687 times ]

20160629_132937.jpg [ 1.42 MiB | Viewed 5687 times ]

20160629_132958.jpg [ 1.62 MiB | Viewed 5687 times ]

20160629_133018.jpg [ 1.69 MiB | Viewed 5687 times ]

Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Thu Jul 28, 2016 9:25 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
All done and dusted ☺

14697374834778957764.jpg [ 1.77 MiB | Viewed 5547 times ]

Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Jul 28, 2016 9:36 pm
THAT guy
User avatar

Location: Virginia
Service Number: A03/TQ2.0.02146E1
Country: United States
That is one EXCELLENT looking piece. Very very cool.


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu Jul 28, 2016 11:39 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Awesome man!

Now tell us about that Sulaco!

_________________
:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Fri Jul 29, 2016 7:30 am
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom

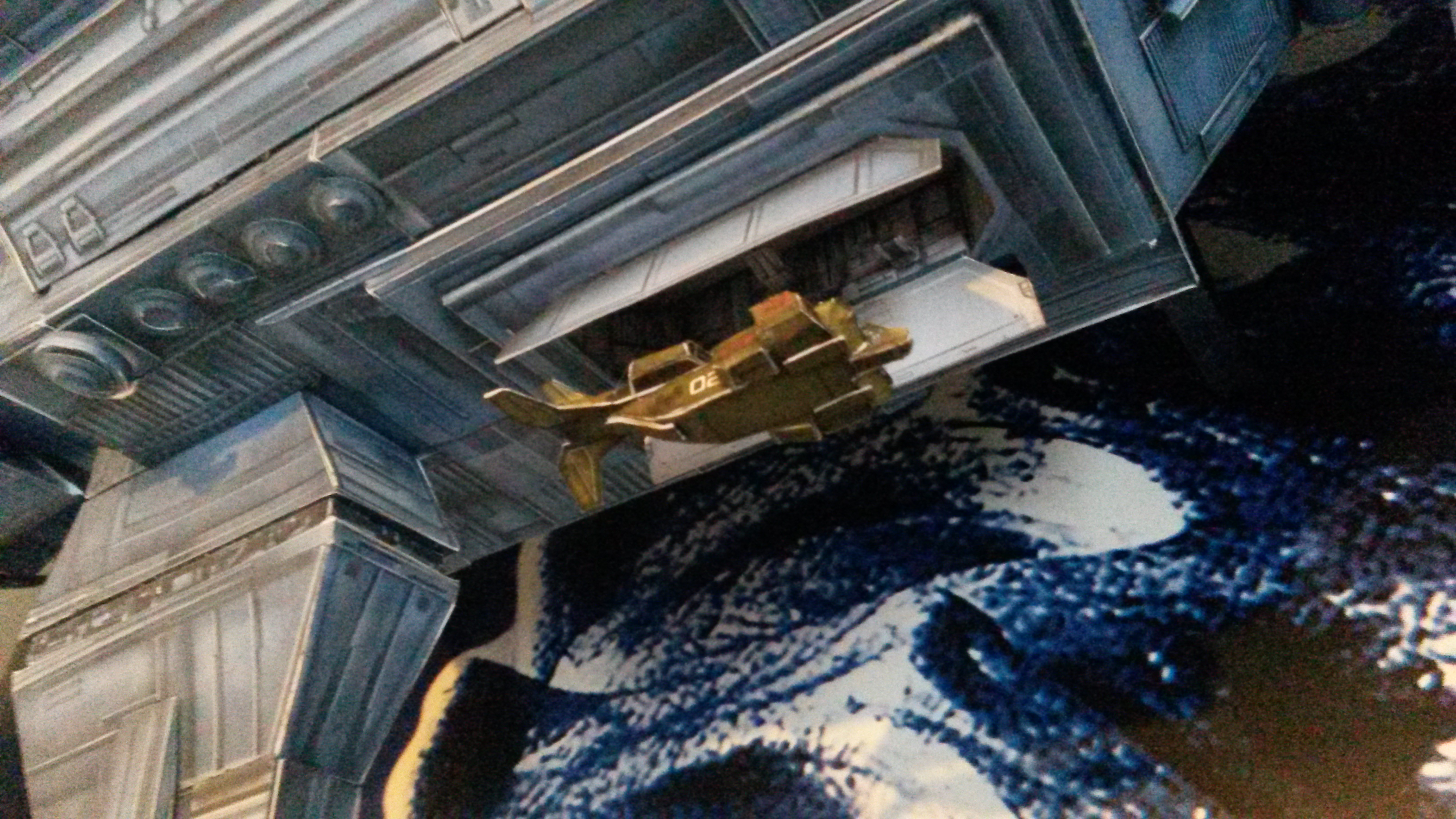

Thanks for the kind words guys. Ah the Sulaco, she's the cardboard model created by Jan Rukr. It's available on line in the Aliens or Alien 3 guise but be careful she's addictive and an origami nightmare, you'll empty your local ink suppliers shelves and use half a rain forest!! But definitely worth it, it's so cool ☺
Oh forgot to mention that she's HUGE

14697736734171406835958.jpg [ 1.93 MiB | Viewed 5518 times ]

14697736137058957764.jpg [ 1.81 MiB | Viewed 5518 times ]

Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jul 31, 2016 4:48 am
Wild Brew
User avatar

Location: PNW
Service Number: A11/TQ2.0.72140G1
Country: United States
Shelby how did you build the nozzle on your flame unit? I probably can't resume my scratch build till after dragoncon :(

_________________
SSGT "Giggles" W.A.L.
SN A11/TQ2.0.72140G1
USS Columbia, Heavy Weapons Section
"If you are going to die, die with a real weapon. Not a little sissy gun like that. "


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Sun Jul 31, 2016 1:12 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom

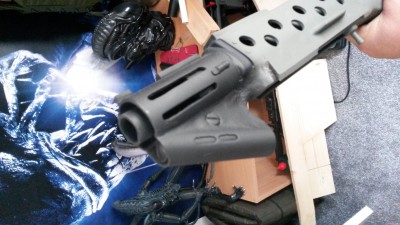

The nozzle is nothing more than two pieces of PVC pipe with a wood Web and a bit of filler. I got the angle off the blown up photo's of the original. Dremel out the hole in the larger pipe glue in the smaller, then just remove the small pipe with the dremel when it's dry to make the body. Drill out the slots and file them up nice and then slide in a section of reduced diameter pipe to create the bottom cut outs. The detail bits are just carved from a bit of timber and glued on. Didn't take any photo's during construction but i still have the trial version and the finished one so I sent you a couple of photos. Hope this helps if I've missed anything you need let's us know ☺

146996656325324666768.jpg [ 1.56 MiB | Viewed 5460 times ]

14699664554391406835958.jpg [ 1.2 MiB | Viewed 5460 times ]

14699663999848957764.jpg [ 1.95 MiB | Viewed 5460 times ]

Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jul 31, 2016 5:47 pm
Wild Brew
User avatar

Location: PNW
Service Number: A11/TQ2.0.72140G1
Country: United States
thank you. That looks a lot easier than my route which would have been to 3D it, then print it and it looks fine.

_________________
SSGT "Giggles" W.A.L.
SN A11/TQ2.0.72140G1
USS Columbia, Heavy Weapons Section
"If you are going to die, die with a real weapon. Not a little sissy gun like that. "


Top
 Profile
Reply with quote
 Post subject: Re: New project M240
PostPosted: Sun Jul 31, 2016 9:06 pm
Got a big ass gun and a can-do attitude

Location: Devon, UK
Country: United Kingdom
No worries ☺


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jul 31, 2016 10:05 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
That tip looks absolutely great!

_________________
:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
