 Post subject: Custom EU SMG/PDW/Carbine - COMPLETE!
PostPosted: Wed May 15, 2013 4:29 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
If you've been following my EU aircrew/loadmaster thread you'll have seen some hints at my plans for a custom sub machine gun/carbine/PDW of some sort.

I decided it warranted it's own thread.

Inspired by the M39 SMG from whichever game it is...
Attachment:
M39SubmachineGuncloseup2_zpseea0d865.png [ 140.44 KiB | Viewed 7741 times ]

...and also heavily influenced by the B&T Advanced Police Carbine:
Attachment:
bt_halbautomat_apc9p_1.jpg [ 157.21 KiB | Viewed 7741 times ]


My plan was to retain the standard pulse rifle magazine (possibly a shorter, lower-capacity) giving an obvious link to the Aliens universe, whilst also attempting to bring a little of the 'futuristic' H&K style seen in the VP70 to the build.

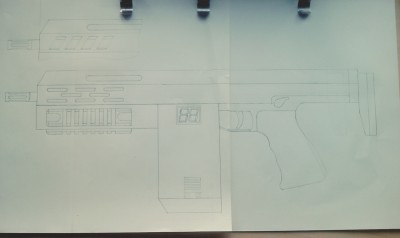

Here's the first stage - a rough conceptual drawing.

Attachment:
IMAG0178.jpg [ 586.17 KiB | Viewed 7741 times ]


I've opted for rails under the barrel with the intention of fitting a fold-away vertical foregrip.

I've drafted two different barrel vent configurations. The standard SPAS cage type - which again hints heavily at the PR, and a more futuristic set of 4 holes. I'm undecided which I prefer yet.

The stock will be extendable on rails in the same way the H&K MP5/MP7 stocks are.

My thoughts at this stage are that it's a little too long for my liking and (ironically) looks a bit too much like a pulse rifle. So now I'm considering narrowing the magazine housing. This will shorten the overall length and also give the weapon it's own distinct style.

_________________
"The other Gareth"


Last edited by WDI on Thu Jul 04, 2013 7:05 pm, edited 1 time in total.

Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Wed May 15, 2013 9:23 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom

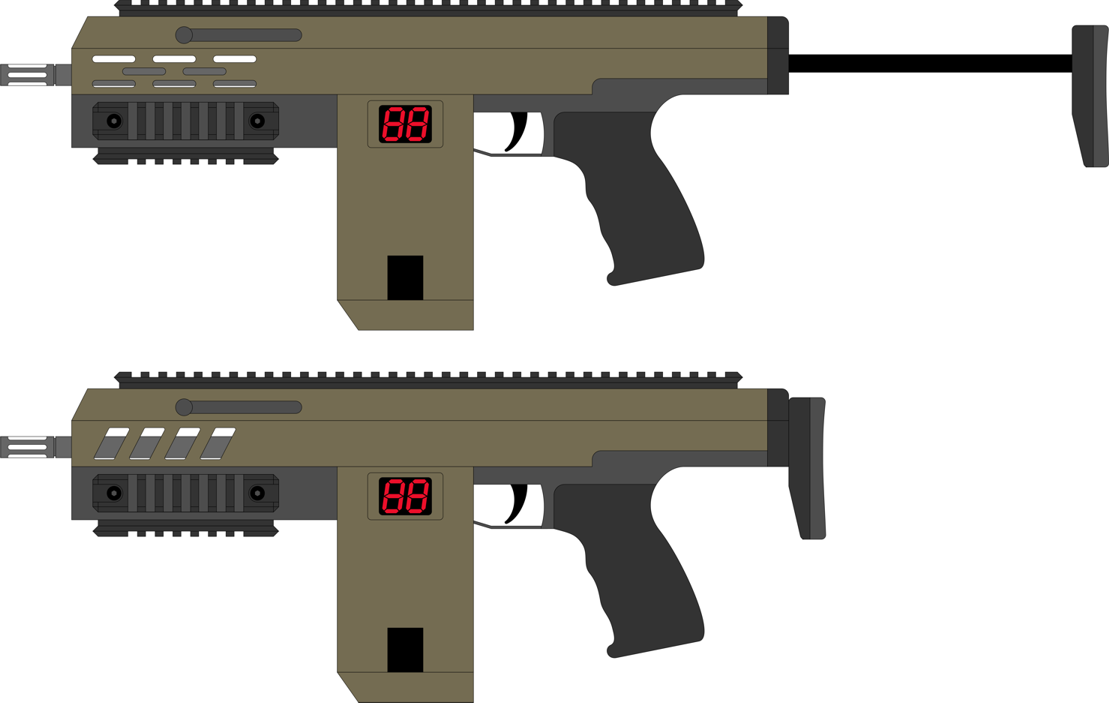

Here's a couple of options now coloured. Showing the extending stock and the different barrel vents.

Attachment:
SMG.png [ 59.21 KiB | Viewed 7714 times ]

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Thu May 16, 2013 1:34 am
There are Tigers...
User avatar

Location: Camp Pendleton, CA
Service Number: A08/TQ0.0.71260E1
Country: United States
Yes. I'm liking the simplicity. What are you going to end up using as a base model?

_________________
Cpl Damon "Bombs Away" LeMay
-"Feelin' good's good enough"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Thu May 16, 2013 11:24 am
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
Thanks very much!

It'll be a complete scratch build.

The main block will be MDF with steel or acrylic for the upper body.
The only parts I intend to buy (at the moment anyway) are the rails because I can't be bothered with all that filing. I may later purchase a pistol grip (depending how well mine turns out).

I'm intending to have a movable bolt carrier assembly with the cocking handle and cocking tube (as the MP5) connected so that cocking the weapon will open the 'breech' for effect.

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Thu May 16, 2013 12:41 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom

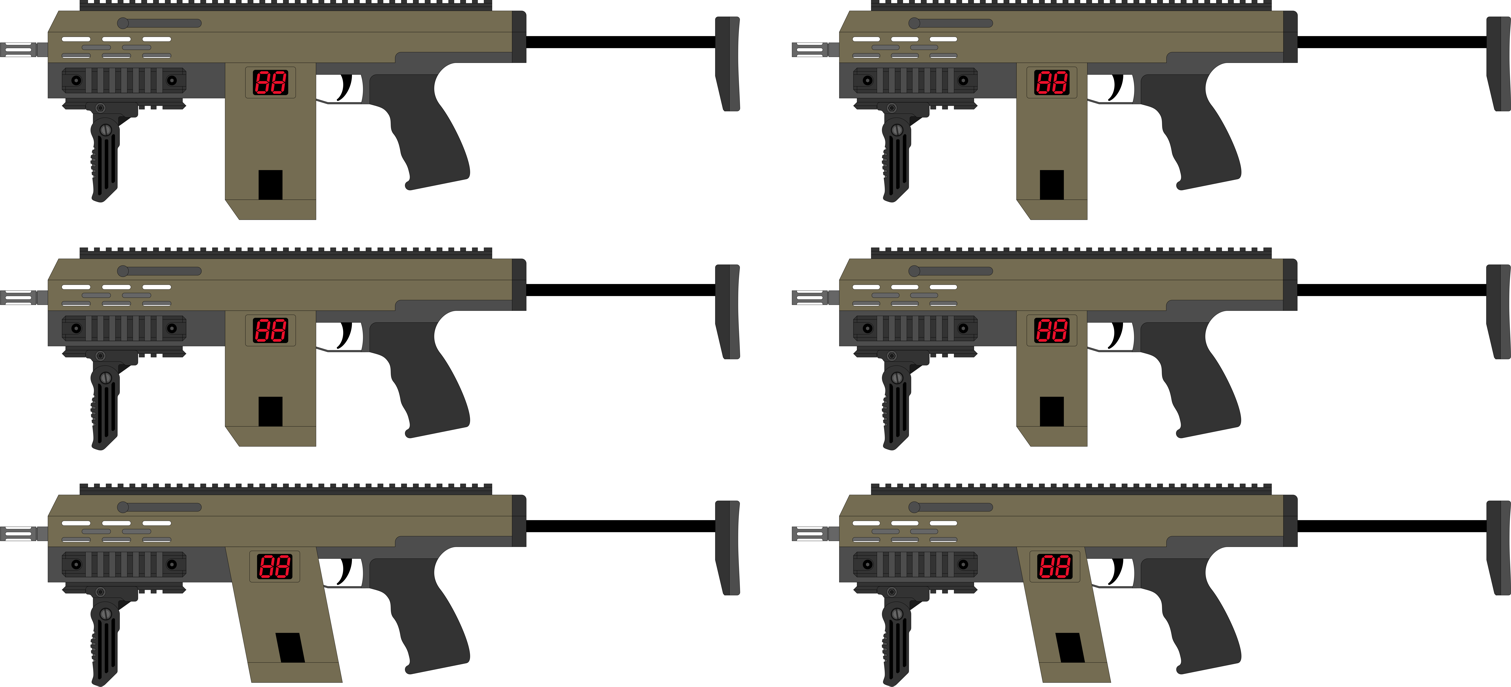

Now with a much shorter magazine with I think balances much better aesthetically, and with the folding foregrip added.

Attachment:
SMG2.png [ 40.77 KiB | Viewed 7679 times ]



Hmmm, but here's the debate.

Initial concept (top left), shorter magazine (middle left), narrower magazine (top right), or shorter and narrower magazine (middle right).
Then of course there's the possibility of a slanted magazine...

What do you guys think?
Attachment:
SMG3.png [ 118.45 KiB | Viewed 7675 times ]

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat May 18, 2013 6:45 pm
There are Tigers...
User avatar

Location: Camp Pendleton, CA
Service Number: A08/TQ0.0.71260E1
Country: United States
I like that slanted design, but i guess it would come down to how much more difficult it would be to replicate it

_________________
Cpl Damon "Bombs Away" LeMay
-"Feelin' good's good enough"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Sat Jun 15, 2013 5:11 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
Time for an update.

I finally decided that I need to start making this, or I simply won't have it in time for LFCC.

I was hoping to use mild steel for the upper but my shears have broken, I have no hacksaw blades, and I also don't have a metal brake which I would have liked to use.
So the Mk1 prototype will be plastic.

Test template:
Attachment:
DSC_0365.JPG [ 162.54 KiB | Viewed 7613 times ]

Attachment:
DSC_0366.JPG [ 158.03 KiB | Viewed 7613 times ]

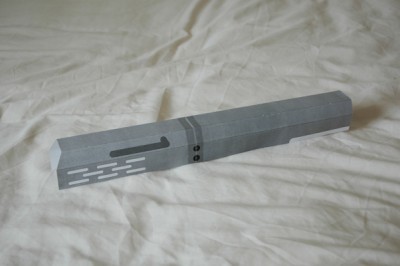

Marking, cutting & filing finished:
Attachment:
DSC_0361.JPG [ 224.78 KiB | Viewed 7613 times ]


Bending did not go so well. Some warping and a little damage to fix later.
That'll teach me to rush!
Attachment:
DSC_0364.JPG [ 198.34 KiB | Viewed 7613 times ]

Attachment:
DSC_0363.JPG [ 224.88 KiB | Viewed 7613 times ]


I'm running so short of time with 5 days at the Glastonbury festival between now and then; I'm thinking I might go without the moving parts on this one. I can make the Mk2 a bit more the way I want it when I've got the right tooling.

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sat Jun 15, 2013 11:37 pm
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom
Its looking good so far mate.
The warping doesn't look too bad :)

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Sun Jun 16, 2013 1:44 am
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
Thank you.

You'd be surprised how curved the damn thing is...I designed it to pretty close tolerances (being used to working with steel). There's some definite tweaking needed to make it fit.

It's quite elastic when soft. Direct heat clearly hasn't been so easy to control so I'm planning to sit it in a boiling water bath for a while and try to work it from there.

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Tue Jun 18, 2013 7:50 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
Well it's got quite a memory. Boiling water instantly softened it and it started to flatten out again.
Unfortunately, the moment it's taken out of the water it stops being pliable. As it does after a couple of minutes when the water has cooled just a little.

Clearly that made it impossible to work. So I clamped it up around a rough form and took out the blow lamp again...It's now nearer to the right shape and size. Unfortunately there's been further shrinkage around the ejection opening. Never mind.

This model is definitely going to be static because it's quicker to put together. Next time I might machine it from aluminimum and sheet steel and make it a working replica.

So...updates!

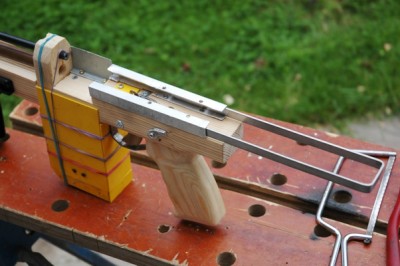

Upper attached to the body with barrel and cocking piece fitted to the barrel extension block:
Attachment:
DSC_0382.JPG [ 228.75 KiB | Viewed 7545 times ]

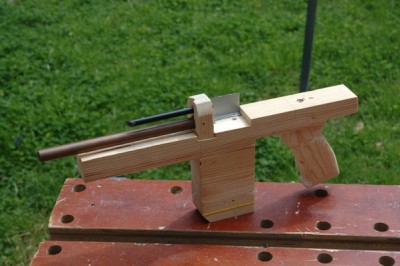

Mock up of the next stage with foregrip folded up:
Attachment:
DSC_0386.JPG [ 231.79 KiB | Viewed 7545 times ]


...and folded down:
Attachment:
DSC_0385.JPG [ 236.06 KiB | Viewed 7545 times ]

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Tue Jun 18, 2013 7:52 pm
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom
Good work, it's coming along nicely.

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Wed Jun 19, 2013 1:30 pm
Prop Churner Outer
User avatar

Location: Bath, Maine
Service Number: A03/TQ1.0.12143G1
Country: United States
Yeah, that's looking really cool!

_________________
:delta: My entry-level prop and costume tutorials: viewtopic.php?f=3&t=12751 :delta:


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Wed Jun 19, 2013 1:32 pm
User avatar

Location: Royal Wolverhampton Upon Sh*te, England
Service Number: A11/TQ1.0.72144E1
Country: United Kingdom
To be honest, I think it'd look good in the yellow with some Weyland Yutani logos on it :)

_________________
2nd Lt Jon "Jaylo" Lopez
A11/TQ1.0.72144E1
USCM Quality Assurance Division- Aerospace and Space Products- Earth
"Checklists Save Lives- No Service Stations at 30,000ft"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Wed Jun 19, 2013 1:38 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
The way things are going that might be the case :P
Not sure I've got enough time and money to get a suitable brown.

We'll see.

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Wed Jun 19, 2013 3:25 pm
Duke Bronson
User avatar

Country: Canada
There is no suitable brown.


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Wed Jun 19, 2013 6:30 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
Lol :D

I don't know. I'm very pleased with the brown I mixed up for my headset.

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Fri Jun 21, 2013 5:35 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
She's taking shape!

Pistol grip roughed out:

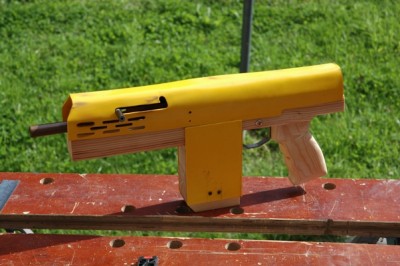

Attachment:
DSC_0389.JPG [ 226.91 KiB | Viewed 7447 times ]


Pistol grip shaped and trigger guard added:
Attachment:
DSC_0393.JPG [ 249.52 KiB | Viewed 7447 times ]


With the upper off:
Attachment:
DSC_0390.JPG [ 230.25 KiB | Viewed 7447 times ]

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Fri Jun 21, 2013 6:52 pm
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom
Verrrry nice mate!

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Sun Jun 23, 2013 12:00 am
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
Thank you!

Got a few more bits done today but no photos yet.

I reckon I'm going to be out of luck with the colour scheme for the moment though. I don't think I'll get a suitable brown in time so it might be all back, at least for LFCC.

With that in mind I mocked up a couple of options.

Attachment:
colour choices.png
colour choices.png [ 85.42 KiB | Viewed 7400 times ]

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jun 23, 2013 12:18 am
Harvester of Sorrow
User avatar

Location: Lancashire (Wirral born)
Service Number: A04/TQ1.0.32156E1
Country: United Kingdom
The OD one gets my vote, looks more 'Aliens-y'.

If you added a bit more black to yellow one I could really see it in the hands of a WY security officer or someone similar.

_________________
Image AKA: Simon


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Sun Jun 23, 2013 12:27 am
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
That's interesting. I really don't like the olive green. :)

The brown is definitely my favourite. Especially having seen my own 'brown bess esque' mix on my headset. It definitely has the "is it brown or is it green?" quality.

The yellow is a novel idea. Perhaphs just the upper in yellow...

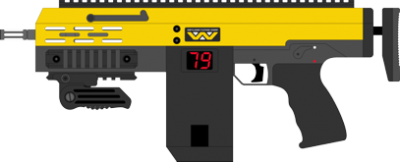

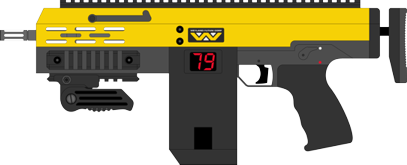

Attachment:
yellow.png [ 24.61 KiB | Viewed 7397 times ]

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject:
PostPosted: Sun Jun 23, 2013 6:55 am
I liked the upper and mag base all one colour...goes along with the PR scheme...and yeah, I like the brown too. ;)


Top

Reply with quote
 Post subject:
PostPosted: Sun Jun 23, 2013 9:17 am
There are Tigers...
User avatar

Location: Camp Pendleton, CA
Service Number: A08/TQ0.0.71260E1
Country: United States
Keep it Brown Bess!

_________________
Cpl Damon "Bombs Away" LeMay
-"Feelin' good's good enough"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Sun Jun 23, 2013 8:36 pm
User avatar

Location: West Sussex
Service Number: A05/TQ1.0.92155E1
Country: United Kingdom
The last two days:

A bit of a bodge here and there but I'm not fussed on this one. The steel version will be far more accurately machined.

Trigger sorted.
Attachment:
DSC_0394.JPG [ 226.31 KiB | Viewed 7368 times ]


A little look at the construction:
Attachment:
DSC_0396.JPG [ 230.85 KiB | Viewed 7368 times ]


Fitted the rails and foregrip:
Attachment:
DSC_0398.JPG [ 206.18 KiB | Viewed 7368 times ]


Rails added for the extendable stock:
Attachment:
DSC_0399.JPG [ 232.74 KiB | Viewed 7368 times ]


I'm part-way through making the end cap and stock lock but I'll probably have to finish that sharpish after Glastonbury. That and the butt plate are the last parts to make.
So my plan is: starting Tuesday the week after next - finish those bits; size and seal the wood; primer; paint; make the sling.
Hopefully done for LFCC on Friday.

_________________
"The other Gareth"


Top
 Profile
Reply with quote
 Post subject: Re: Custom EU SMG/PDW/Carbine
PostPosted: Sun Jun 23, 2013 11:33 pm
If found face down, Call a corpsman!
User avatar

Location: Bury st Edmunds Suffolk
Service Number: A06/TQ0.0.42145E1
Country: United Kingdom
Very impressed mate looking good. I look forward to seeing the finish thing at LFCC

_________________
CPL
AJ "Gunner" Martin
A06/TQ0.0.42145E1



"I'm ready, man check it out. I am the ultimate badass! state of the badass art! You do not want to frak with me."


Top
 Profile
Reply with quote
Display posts from previous:  Sort by
Post new topic Reply to topic  [ 36 posts ]  Go to page 1, 2  Next



You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
